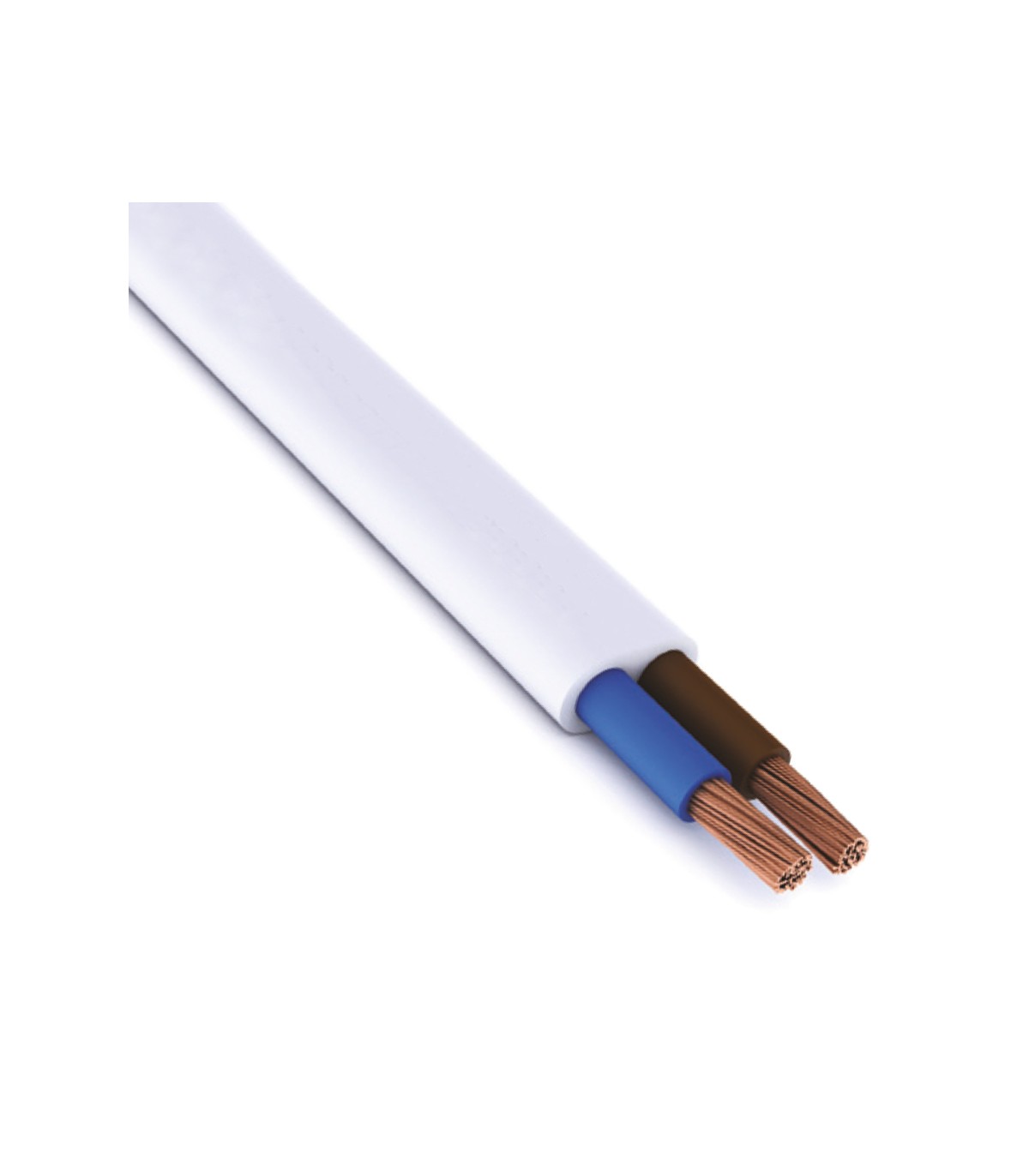

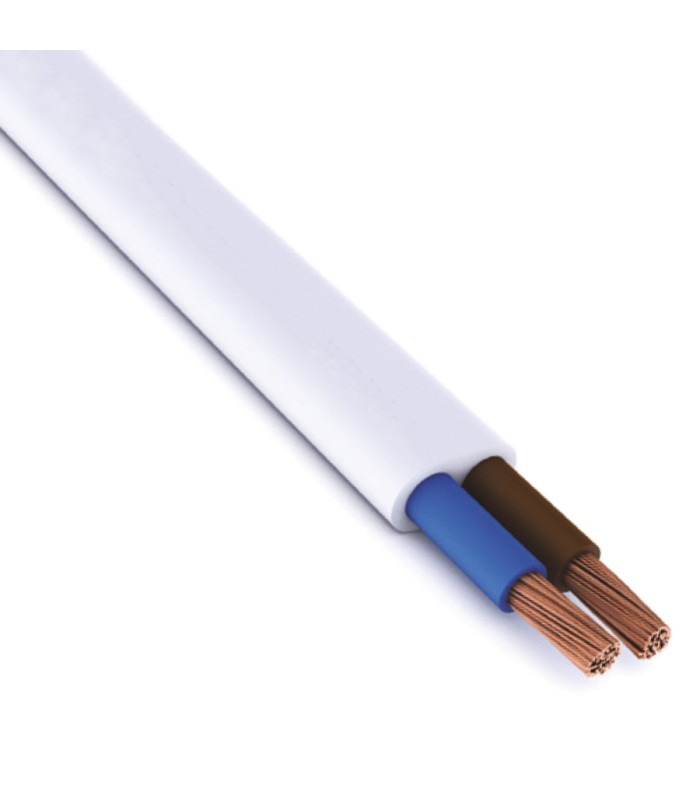

Multi-core electric cable PVC H03VVH2-F 2X0.50 flat white outer sheath
ErreBi code: 20261
Price for meter
Read moreShow lessPrice for meter
€1.19
(tax excl.)
€1.45
(tax incl.)
Condition
New
Reference:
RBCVH03VVH2-F2X0.5PTBNC1
Brand:
Add to wishlist
PVC multicore cables, designed for the automotive industry, offer high resistance to mineral oils, hydrocarbons (such as gasoline and petrol), and typical engine compartment fluids. They are ideal for applications requiring reliability, flexibility, and good chemical resistance even under intermittent thermal conditions.
APPLICATIONS
Suitable for light or extra-light duty, i.e., when the risk
of mechanical stress or damage is low or negligible,
such as in the normal use of lightweight portable appliances
used in homes, offices, and shops (household hair dryers,
radios, table lamps, and small office machines).
Technical Specifications
Short Circuit Temperature: +160°C
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: 70°C
Operating Voltage: 300 V
Test Voltage: 2000 V
Har: HAR Certificate No. A0643
Flame Resistance: IEC 60332-1-2
Suitable for indoor installation
Suitable for fixed installation
Outer Diameter: 4.90 mm
Number of Conductors: 2
Cable Section: 0.50 mmq
Outer Sheath Color: White
Inner Core Colors: Blue and Brown
Read moreShow less
APPLICATIONS
Suitable for light or extra-light duty, i.e., when the risk
of mechanical stress or damage is low or negligible,
such as in the normal use of lightweight portable appliances
used in homes, offices, and shops (household hair dryers,
radios, table lamps, and small office machines).
Technical Specifications
Short Circuit Temperature: +160°C
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: 70°C
Operating Voltage: 300 V
Test Voltage: 2000 V
Har: HAR Certificate No. A0643
Flame Resistance: IEC 60332-1-2
Suitable for indoor installation
Suitable for fixed installation
Outer Diameter: 4.90 mm
Number of Conductors: 2
Cable Section: 0.50 mmq
Outer Sheath Color: White
Inner Core Colors: Blue and Brown
RBCVH03VVH2-F2X0.5PTBNC1
Data sheet
- Product type
- H05VVH2-F cable
- Color
- White
- external diameter
- 4.90 mm
- Voltage
- 300V
- Operating temperature min.
- -20°C
- Operating temperature max.
- +70°C
- Insulation material
- PVC
- Conductor (Material)
- Red copper
- Cable section mmq
- 0.50 mmq
- Shielding
- No
- Voltage test
- 2000V
- Flame resistance
- IEC 60332-1-2
- Type of employment
- Automotive Sector
- Number of conductors
- 2
- External sheath material
- PVC
- Minimum order quantity
- 2
- Unit Type
- metres
- Anime Color
- blue/brown
