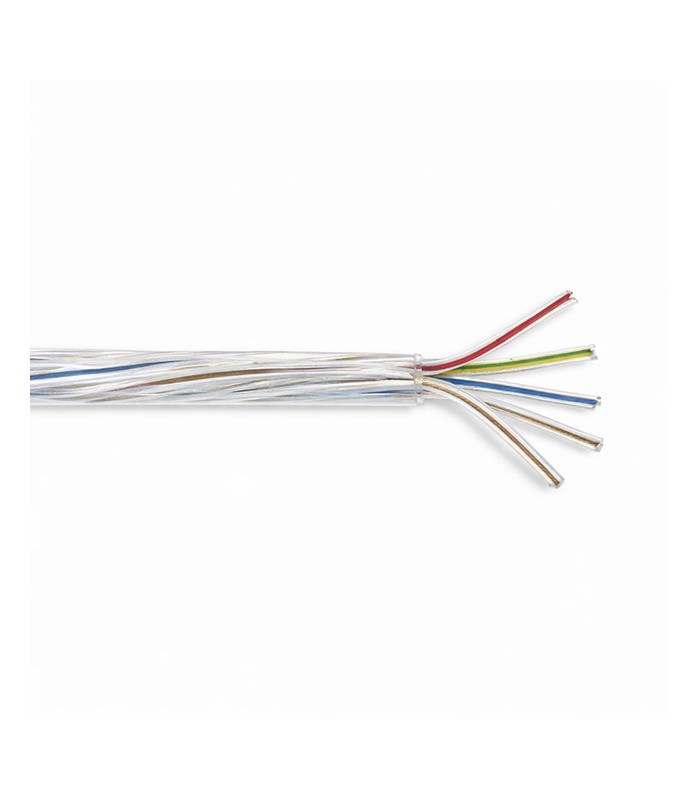

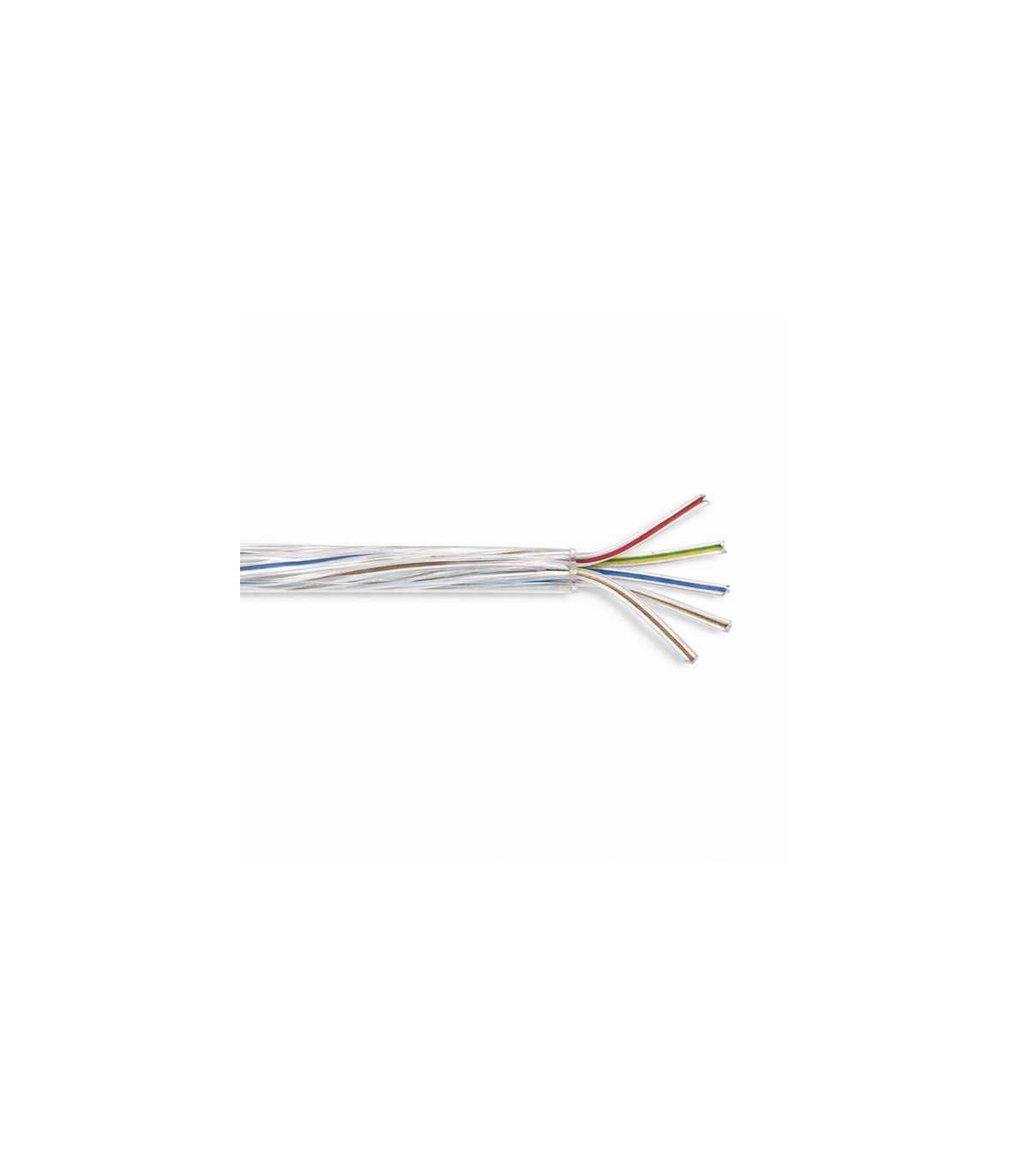

Transparent FR5F cable 5g1,5 internal cores in Fep VDE

The transparent FR5F 5G1.5 cable is a flexible transparent cable with FEP-insulated cores and a PVC sheath, suitable for internal wiring of electronic equipment and devices.

The construction combines FEP-insulated cores (a high-performance fluoropolymer material) with a transparent PVC outer sheath rated to 105°C, resulting in a robust cable that is easy to install, with a clean, technical appearance.


Advantages

1) Transparent sheath for quick visual inspection of the cores and wiring (useful in control panels, prototypes, equipment and maintenance).

2) FEP insulation on the cores: excellent dielectric properties and stability at elevated temperatures on the inner cores.

3) Tinned copper conductors: good resistance to oxidation and reliable performance in wiring.


Technical specifications

Colour: Transparent

Cable cross-section: 1.5 mm²

Number of cores: 5

Overall diameter: 7.40 mm

Rated voltage: 300/500 V

Test voltage: 2000 V

Flame resistance: IEC 60332-1-2

Minimum operating temperature: -20 °C

Maximum operating temperature: +105 °C

Minimum bending radius: = 12 × D
