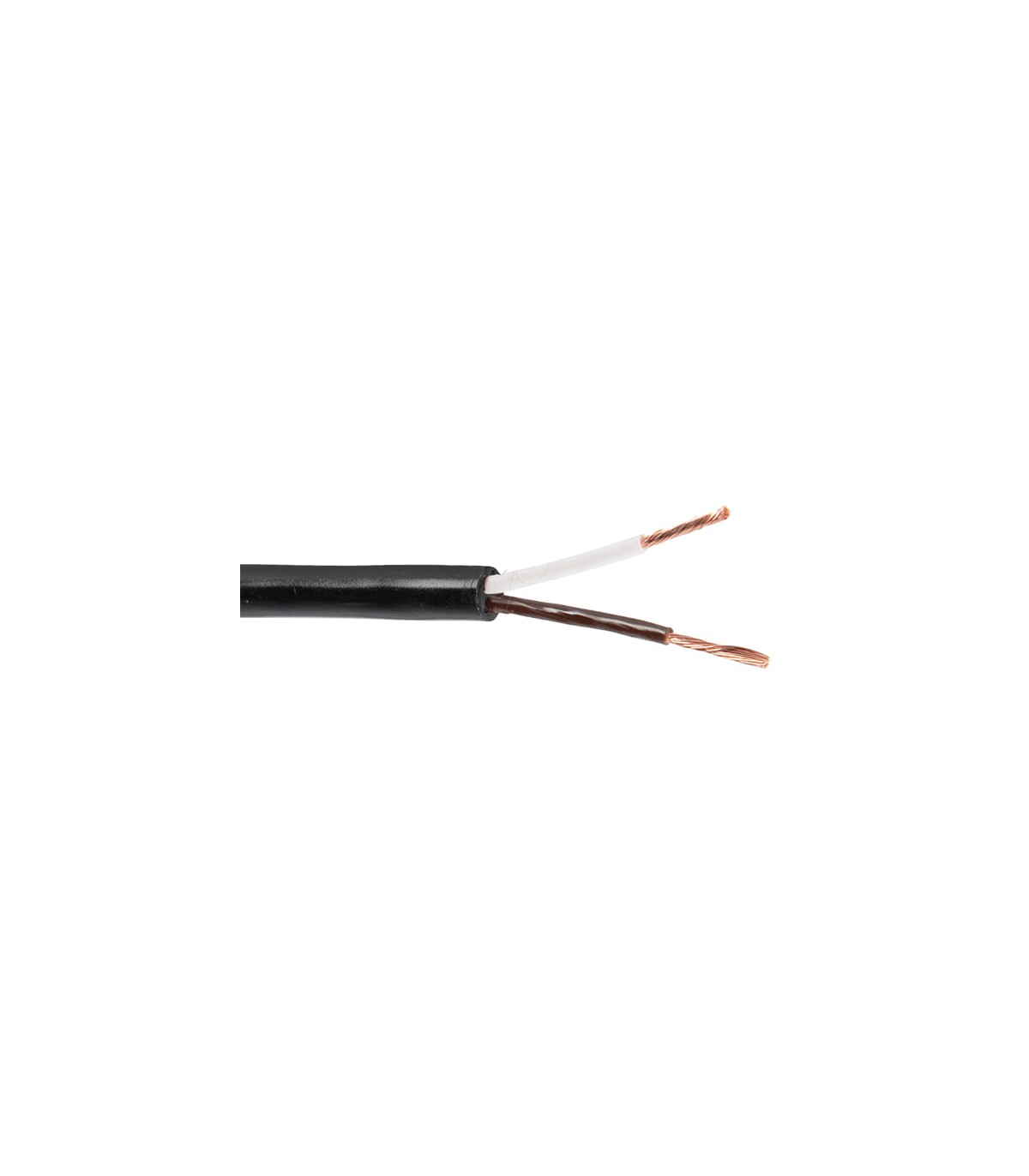

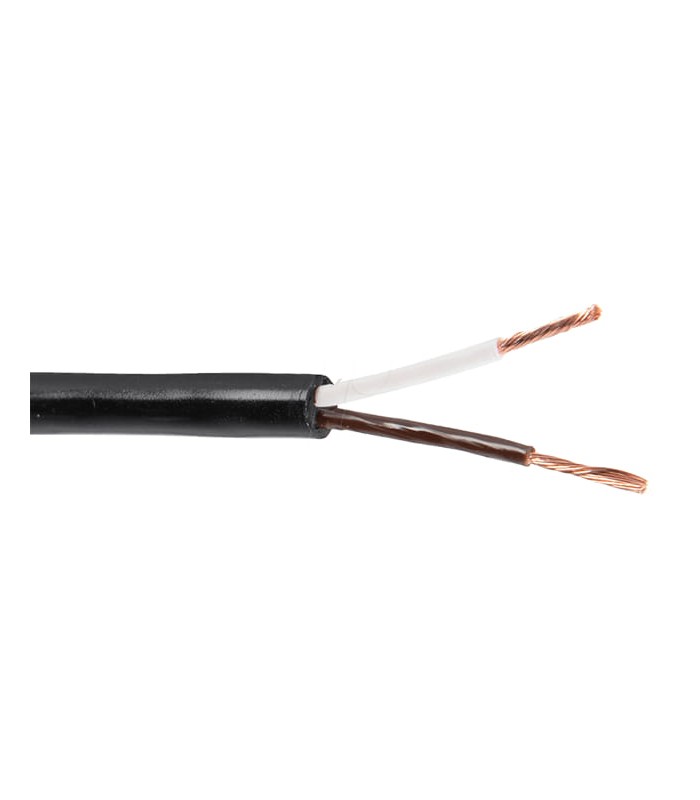

Cable LI12Y11Y 2x0.5 mmq ext. black
ErreBi code: 60284
Price for meter
Read moreShow lessPrice for meter
€2.58
(tax excl.)
€3.15
(tax incl.)
Condition
New
Reference:
RBCVLi12Y11Y2X0.50NR
Brand:
Add to wishlist
Technical Specifications:
Number of conductors: 2 conductors
Conductor section: 0.50 mmq
Outer diameter: 4.00 mm
Conductor: Red copper
Test voltage: 1500 V
Sheath color: black
Rated voltage: 300/500 V - 450/750 V
Operating temperature: -20 °C to +70 °C
Short circuit temperature: 160 °C
Minimum bending radius: 10xD
Suitable for mobile installation
Suitable for fixed installation
Self-extinguishing according to IEC 60332-1-2
Read moreShow less
Number of conductors: 2 conductors
Conductor section: 0.50 mmq
Outer diameter: 4.00 mm
Conductor: Red copper
Test voltage: 1500 V
Sheath color: black
Rated voltage: 300/500 V - 450/750 V
Operating temperature: -20 °C to +70 °C
Short circuit temperature: 160 °C
Minimum bending radius: 10xD
Suitable for mobile installation
Suitable for fixed installation
Self-extinguishing according to IEC 60332-1-2
RBCVLi12Y11Y2X0.50NR
Data sheet
- Product type
- PVC-Kabel
- Color
- Black
- external diameter
- 4.00 mm
- Voltage
- 300/500V - 450/750V
- Operating temperature min.
- -20°C
- Operating temperature max.
- +70°C
- Insulation material
- PVC
- Conductor (Material)
- Red copper
- Cable section mmq
- 0.50 mmq
- Shielding
- No
- Voltage test
- 1500V
- Flame resistance
- IEC 60332-1-2
- Number of conductors
- 2
- External sheath material
- PVC
- Minimum order quantity
- 1
- Unit Type
- metre
