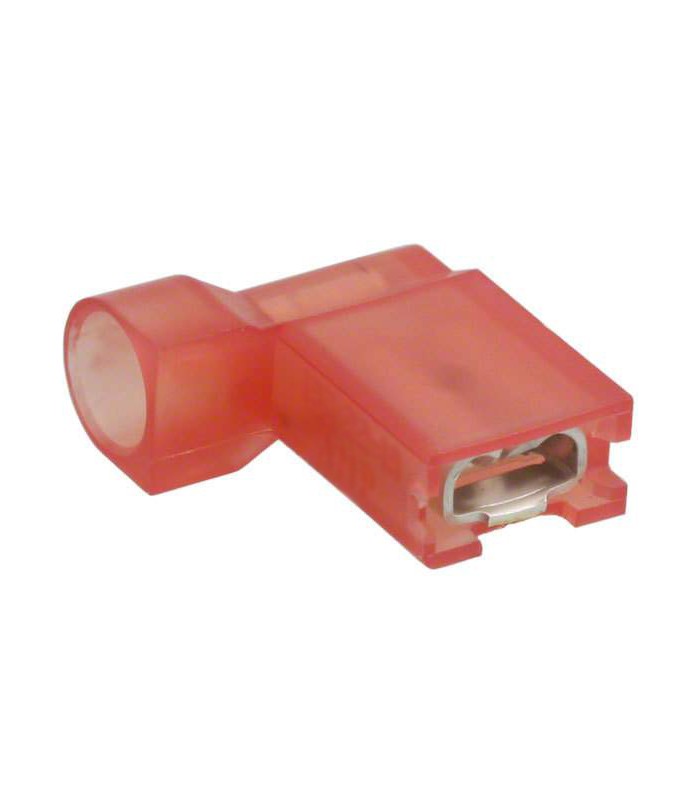

Cable lug Female 4,8x0,8 Pre-Isolated Red to Flag

Codice ErreBi: 23050
Codice produttore: 2-520336-2
Produttore: TE/Connectivity

€0.50 (tax excl.)

€0.61 (tax incl.)

Discounts for quantities

Quantity	Unit price	You Save
3	€0.61	€0.00
12	€0.55	€0.72
27	€0.49	€3.29
51	€0.46	€7.78
102	€0.40	€21.84
252	€0.34	€69.10
501	€0.31	€152.81
1002	€0.27	€336.48

Last items in stock 9 Items

The minimum purchase order quantity for the product is 3.

Condition

New

Reference:

RBCC4.8X0.8FBRI

Brand:

TE Connectivity

Add to wishlist

Description

Product Type Features
Applies To: Wire/Cable
Wire Stop: No
Disconnect Type: Quick Connect
Insertion Force: Low
FASTON: Yes
Wire/Cable Composition: Stranded
Wire/Cable Type: Discrete Wire
Insulated: Yes
Insulated Wire Support: Yes
Support Style: Insulation Support

Configuration Features
Paired: No
Stud Hole: No
Terminal Angle: 90°

Electrical Characteristics
Voltage (Max)(V): 600

Body Features
Plating Material: Brass, Tin
Fully Insulated: Yes

Configuration Features
Paired: No
Stud Hole: No
Terminal Angle: 90°

Electrical Characteristics
Voltage (Max)(V): 600

Body Features
Plating Material: Brass, Tin
Fully Insulated: Yes

Termination Features
Crimp Type: F-Crimp

Mechanical Attachment
Mating Retention Type: Dimple

Dimensions
Mating Tab Width: 4.75 mm [ .187 in ]
Mating Tab Thickness: .81 mm [ .032 in ]
Wire Insulation Diameter (Max): 4.19 mm [ .165 in ]
Wire Insulation Diameter: 4.19 mm [ .165 in ]
Wire Size (AWG:) 22 – 18
Wire Size (mm²): .3 – .8
Material Thickness: .41 mm [ .016 in ]
Overall Length: 13.08 mm [ .515 in ]

Usage Conditions
Operating Temperature Range(°C): 105

Industry Standards
UL Rating: Listed
UL Flammability Rating: UL 94V-2

Other
Barrel Color: Red
