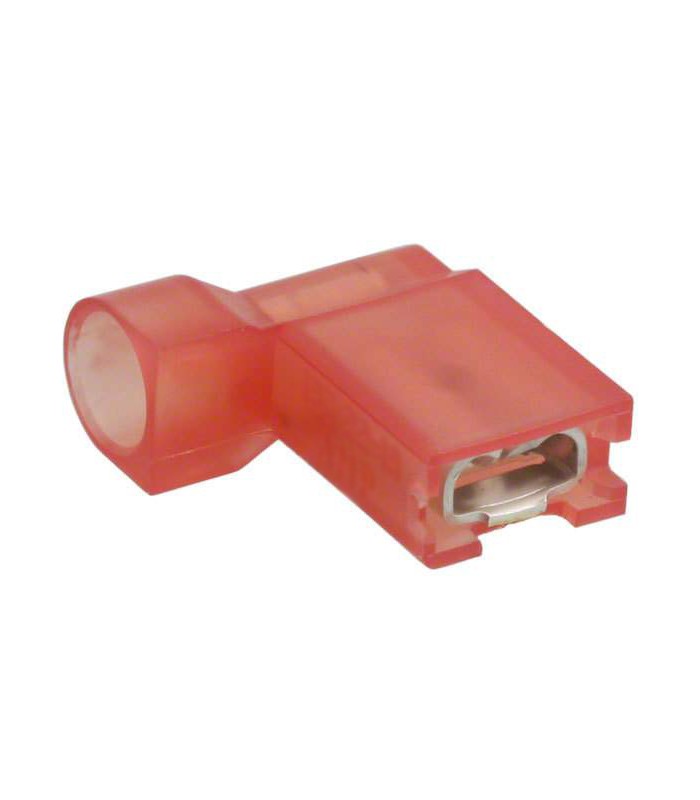

Cable lug Female 4,8x0,5 Pre-Isolated Red to Flag concatenated

Product Type Features
Applies To: Wire/Cable
Wire Stop: No
Disconnect Type: Quick Connect
Insertion Force: Low
FASTON: Yes
Wire/Cable Composition: Stranded
Wire/Cable Type: Discrete Wire
Insulated: Yes
Insulated Wire Support: Yes
Support Style: Insulation Support

Configuration Features
Paired: No
Stud Hole: No
Terminal Angle: 90°

Electrical Characteristics
Voltage (Max)(V): 600

Body Features
Plating Material: Brass, Tin
Fully Insulated: Yes

Contact Features
Terminal Type: Receptacle
Terminal Orientation: Flag
Contact Plating Material: Tin

Termination Features
Crimp Type: F-Crimp

Mechanical Attachment
Mating Retention Type: Dimple

Dimensions
Mating Tab Width: 4.75 mm [ .187 in ]
Mating Tab Thickness: .51 mm [ .02 in ]
Wire Insulation Diameter (Max): 4.19 mm [ .165 in ]
Wire Insulation Diameter: 4.19 mm [ .165 in ]
Wire Size (AWG:) 22 – 18
Wire Size (mm²): .3 – .8
Material Thickness: .41 mm [ .016 in ]
Overall Length: 13.08 mm [ .515 in ]

Usage Conditions
Operating Temperature Range(°C): 105

Industry Standards
UL Rating: Listed
UL Flammability Rating: UL 94V-2

Other
Barrel Color: Red
packing: reel
