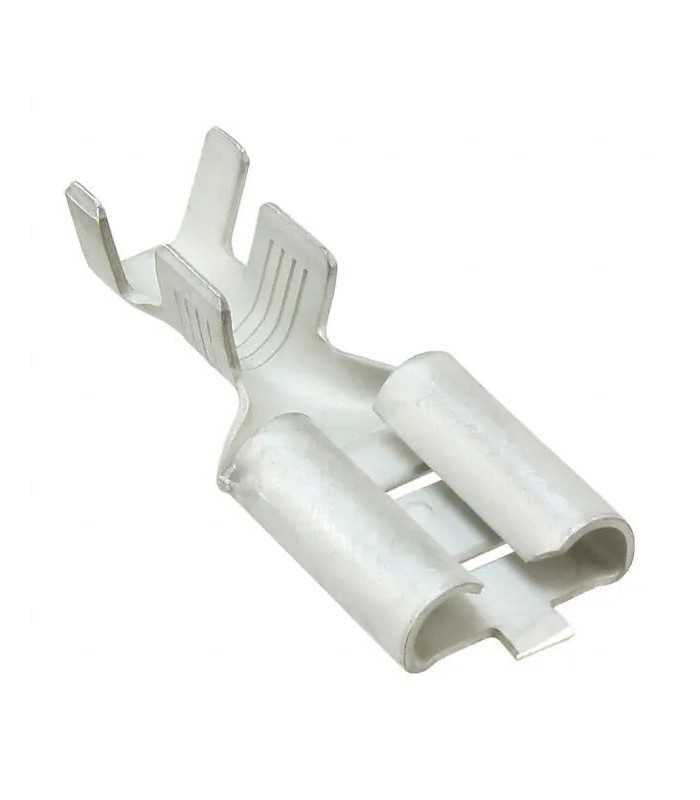

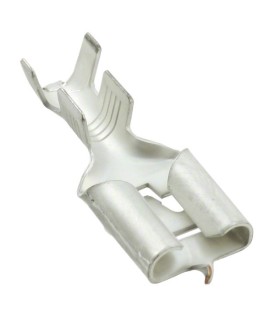

Crimp Receptacle 9.53 x 1.19mm 10 - 7 AWG Tin Plated

Errebi code: 15056
Producer code: 280223-2
Producer: TE/Connectivity

€0.16 (tax excl.)

€0.20 (tax incl.)

Discounts for quantities

Quantity	Unit price	You Save
20	€0.20	€0.00
40	€0.16	€1.56
60	€0.15	€2.93
100	€0.13	€6.85
260	€0.11	€22.81
500	€0.10	€48.80
1000	€0.09	€107.46

Available in stock 14496 Items

The minimum purchase order quantity for the product is 20.

Condition

New

Reference:

RBTN953119F

Brand:

TE Connectivity

Add to wishlist

Description

Product Type Features
- Terminates To: Wire & Cable
- FASTON: Yes
- Insulated: No
- Wire/Cable Type: Discrete Wire
- Wire Stop: No
- Wire/Cable Composition: Stranded

Configuration Features
- Connection Capacity: Single

Body Features
- Fully Insulated: No
- Plating Material: Tin
- Plating Thickness(µm): 1

Contact Features
- Terminal & Splice Style: Receptacle
- Terminal Type: Receptacle
- Terminal Orientation: Straight
- Barrel Type: Open
- Contact Base Material: Brass
- Crimp Type: F-Crimp

Mechanical Attachment
- Wire Insulation Support: With
- Mating Retention Type: Dimple

Dimensions
- Wire Size?(AWG): 11 – 9
- Wire Size?(mm²): 4 – 6.63
- Mating Tab Width: 9.53 mm [ 0.375 in ]
- Mating Tab Thickness: 1.2 mm [ 0.047 in ]
- Accepts Wire Insulation Diameter Range : 3.81 – 5.08 mm [ 0.15 – 0.2 in ]
- Receptacle Stock Thickness: 0.51 mm [ 0.02 in]
- Wire Insulation Diameter (Max): 5.08 mm [ 0.2 in ]
- Overall Length: 27.2 mm [ 1.07 in ]

Industry Standards
- CSA Certified: Yes
- UL Rating: Listed
