€3.92
(tax excl.)
€4.78
(tax incl.)
ErreBi code: 31285Producer code: 2145Producer: V-TACPrice for meter

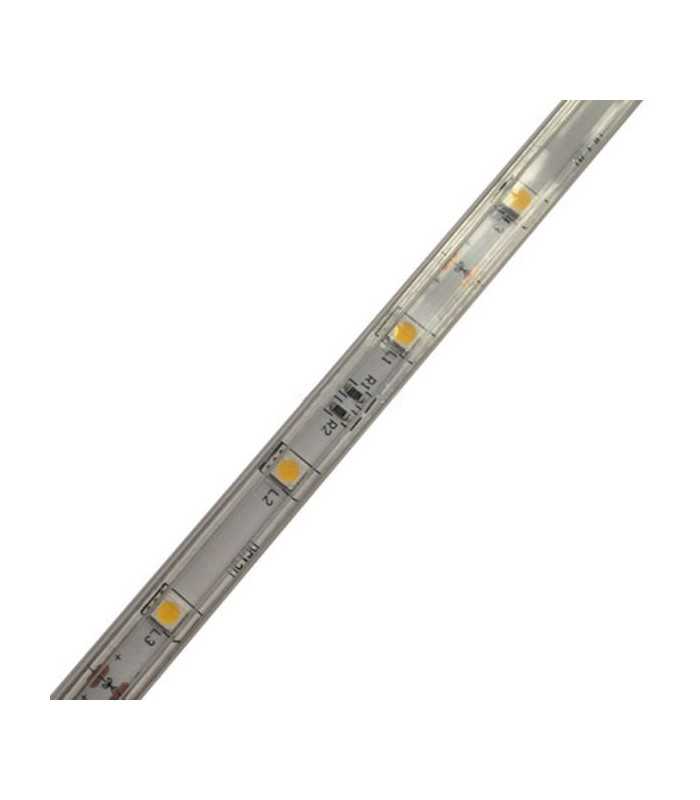

LED Strip SMD5050 30 LED 6000K° IP65 Roll
ErreBi code: 19983
Producer code: 2144
Producer: V-TAC
Price for meter
Read moreShow lessProducer code: 2144
Producer: V-TAC
Price for meter
€3.00
(tax excl.)
€3.66
(tax incl.)
Condition
New
Reference:
RB2144
Brand:
Add to wishlist
General Information
LED Type: SMD5050
Lifespan: 20 000 hrs
Electrical Data
Wattage: 4,8W /m.
Current: .4A
Voltage: 12V
Light technical data
Color: White
Color Temperature: 6400K
Luminous flux: 360 LM/m.
LED Quantity: 30 LED/m.
LM per LED: 12
Beam angle: 120°
Body details
Material: PCB
Body Colour: White
Capabilities
Dimmable: No
IP Rating: IP20
Cut Points: Copper pads spaced every 3 LEDs. Cut only on the given cut line between the copper dots.
Starting Time 100% ON: 0.001 sec (instant on)
Color stability: <6
Declared peak intensity in candelas (cd): /
On/Off cycles: 15000
Working conditions: Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Dimensions
Length: 10 mm
Product Data
Item Weight: 0,063
Item Volume: 0,0002
Certificates & standards
Energy efficiency class: A
Certification: CE, EMC, ROHS
Additional
Waranty: 2 years
Read moreShow less
LED Type: SMD5050
Lifespan: 20 000 hrs
Electrical Data
Wattage: 4,8W /m.
Current: .4A
Voltage: 12V
Light technical data
Color: White
Color Temperature: 6400K
Luminous flux: 360 LM/m.
LED Quantity: 30 LED/m.
LM per LED: 12
Beam angle: 120°
Body details
Material: PCB
Body Colour: White
Capabilities
Dimmable: No
IP Rating: IP20
Cut Points: Copper pads spaced every 3 LEDs. Cut only on the given cut line between the copper dots.
Starting Time 100% ON: 0.001 sec (instant on)
Color stability: <6
Declared peak intensity in candelas (cd): /
On/Off cycles: 15000
Working conditions: Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Dimensions
Length: 10 mm
Product Data
Item Weight: 0,063
Item Volume: 0,0002
Certificates & standards
Energy efficiency class: A
Certification: CE, EMC, ROHS
Additional
Waranty: 2 years
RB2144
Data sheet
- Product type
- LED Strip
- LED Type
- SMD 5050
- Lifespan
- > 20.000 h
- Wattage
- 4.8W
- Amperage
- 0.4 A/m
- Voltage/Frequency
- DC: 12V
- Light color/Temperature
- 6000K°, White
- LED quantity
- 30 LED/m
- Lumens for LEDs
- 14-16 lm
- Beam angle
- 120°
- Luminous flux
- 500 lm/m
- Material
- PCB
- Color
- White
- Dimmable
- Yes
- IP rating
- IP65
- Operating temperature
- -20°C to +45°C
- Dimensions
- 10 mm
- Model code
- VT-5050 IP65
- Energy efficiency class
- A+
- Certification
- CE, EMC, ROHS
- Waranty
- 2 Years
- Minimum order quantity
- 5
- Unit Type
- metres
Specific References
- EAN13
- 3800230621399
