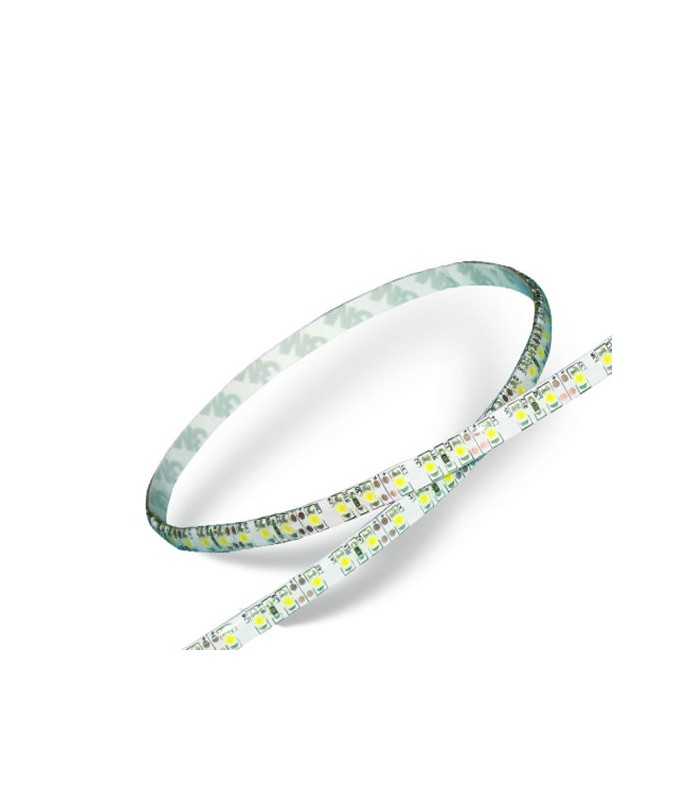

LED Strip SMD 3528 120 LED 6000K° IP65 Roll

ErreBi code: 18542
Producer code: 2037
Producer: V-TAC
Price for meter
Read moreShow less
€4.36 (tax excl.)
€5.32

Discounts for quantities

Quantity Unit price You Save
5 €5.32 €0.00
10 €4.26 €10.64
20 €3.72 €31.92
50 €3.19 €106.38
'Available in 6/7 working days from the order.'
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RB2037
Brand:
Add to wishlist
Description
General Information
LED Type: SMD3528
Lifespan: >20 000 hrs

Electrical Data
Wattage: 7,2W
Current: 6A/m.
Voltage: 12V

Light technical data
Color: White
Color Temperature: 6000K
Luminous flux: 600 LM/m.
LED Quantity: 120 LED/m.
LM per LED: 5
Beam angle: 120 °

Body details
Material: PCB
Body Colour: White

Capabilities
Dimmable: No
IP Rating: IP65
Cut Points: Copper pads spaced every 3 LEDs. Cut only on the given cut line between the copper dots.
Starting Time 100% ON: 0.001 sec (instant on)
Color stability: <6
Declared peak intensity in candelas (cd): /
On/Off cycles: 15000
Working conditions: Not suitable for use in extreme conditions. Normal working conditions is -20° +45°

Dimensions
Width: 8 mm

Product Data
Item Weight: 0,051
Item Volume: 0,0002

Certificates & standards
Energy efficiency class: A
Certification: CE, EMC, ROHS

Additional
Waranty: 2 years
Read moreShow less
Product Details
RB2037

Data sheet

Product type
LED Strip
LED Type
SMD 3528
Lifespan
> 20.000 h
Wattage
7.2W
Amperage
0.6 A/m
Voltage/Frequency
DC: 12V
Light color/Temperature
6000K°, White
LED quantity
120 LED/m
Lumens for LEDs
5-6 lm
Beam angle
120°
Luminous flux
600 lm/m
Material
PCB
Color
White
Dimmable
Yes
IP rating
IP65
Operating temperature
-20°C to +45°C
Dimensions
8 mm
Model code
VT-3528 IP65
Energy efficiency class
A+
Certification
CE, EMC, ROHS
Waranty
2 Years
Minimum order quantity
5
Unit Type
metres

Specific References

EAN13
3800230621290
