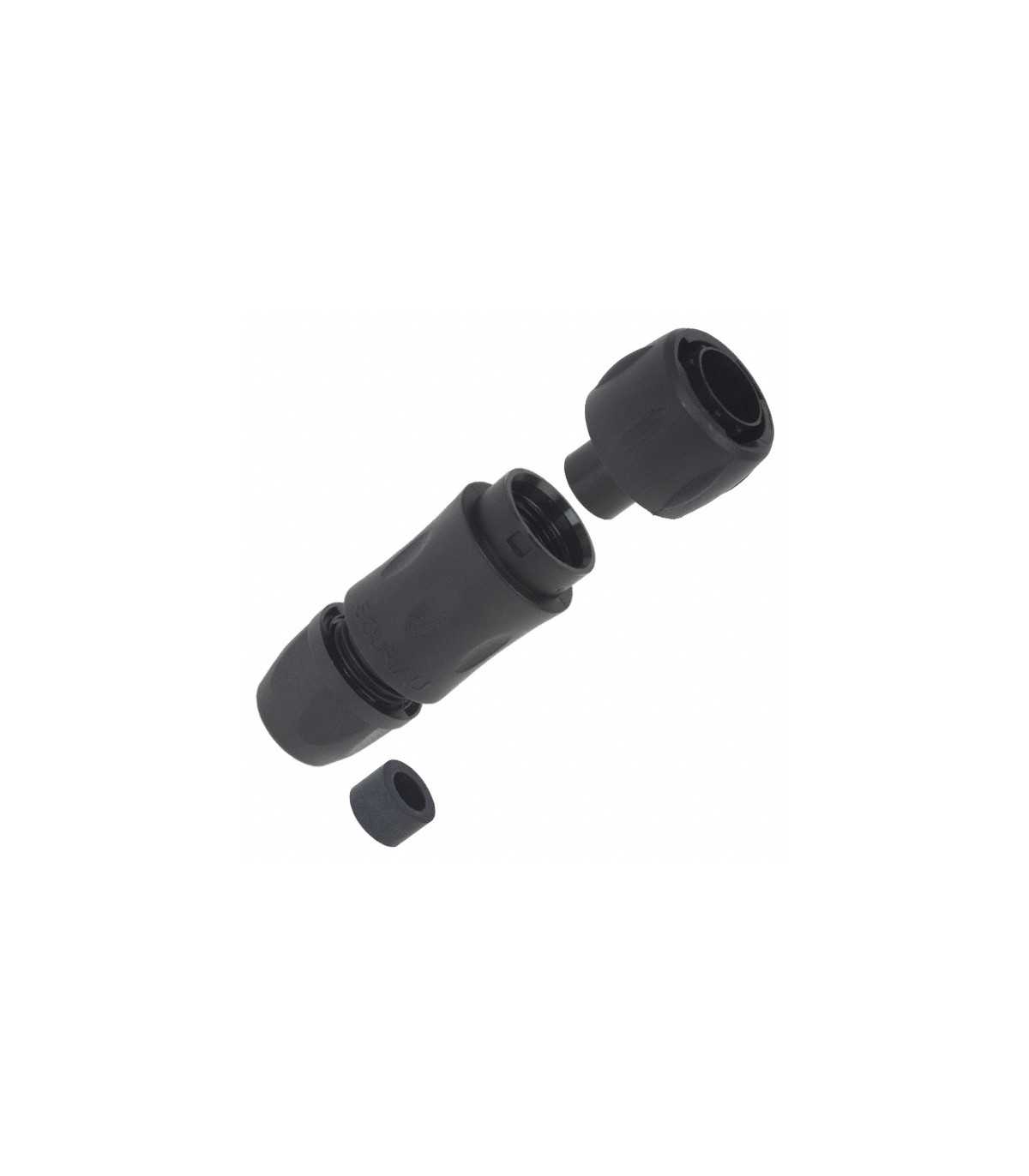

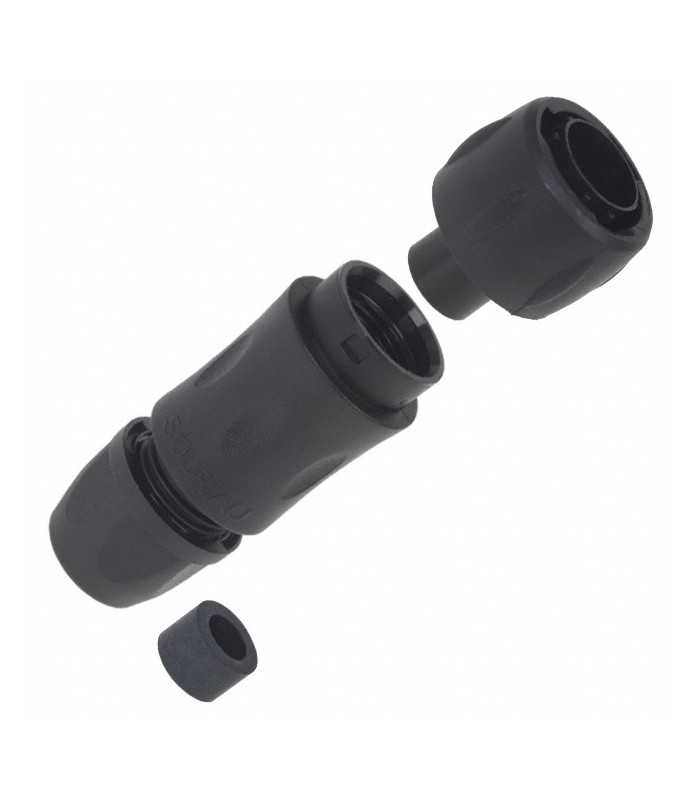

Circular connector Trim Trio UTG Size 12 Male 8 Poles

Code: UTS6JC128P
layout: 128
Contact number (UTS): 8 contacts
Number of contacts: 8
Layout with Protective Earth cavity: No
Current (A): 10
Voltage (V): 80
Contact termination: crimp (contacts supplied separately)
Size of contact (#): 16
Contacts delivered with connector ? : No
Sealing: IP68/IP69K (mated conditions)
Type of connector: plug
Contact gender: Male
Backshell supplied with connector ? : Yes
Type of backshell: cable gland backshell
Minimum cable overal diameter (mm): 3
Max cable overal diameter (mm): 12
Operating temperature mini (°C): -40
Operating temperature max (°C): 105
Flammability: UL94 V0
French fire and smoke withstand: I2F3 according to NFF16101 and NFF 16102
Corrosion - salt spray withstanding in hour: 500
UV withstanding: no mechanical degradation after 5 years of exposure
Fluids withstanding: gasoil, mineral oil, acid bath, basic bath
Durability (cycles mating-unmating): 250
Vibrations: Sinusoidal vibrations per CEI 60512-4 - from 10 to 2000 Hz
Thermal chocs: 5 cycles 30 min. from -40°C to 105°C per MIL-STD1344, method 1003
Shell size: 12
Height (mm): 30,1
Width (mm): 30,1
Length (mm): 66,7
Weight (g): 34,27
Voltage - UL (V): 500
Current UL (A): 10
UL certificate: UL94 V0
Voltage CSA (V): 500
Current CSA (A): 7
Certificate CSA: UL94 V0
Voltage IEC (V): 80
Current IEC (A): 10
Certificate IEC: 1.5kV 3
Shell material: thermoplastic
Shell plating: no plating
Insert material: thermoplastic
Halogen free: Yes
ROHS compliant: Yes
Reach compliant: Yes
