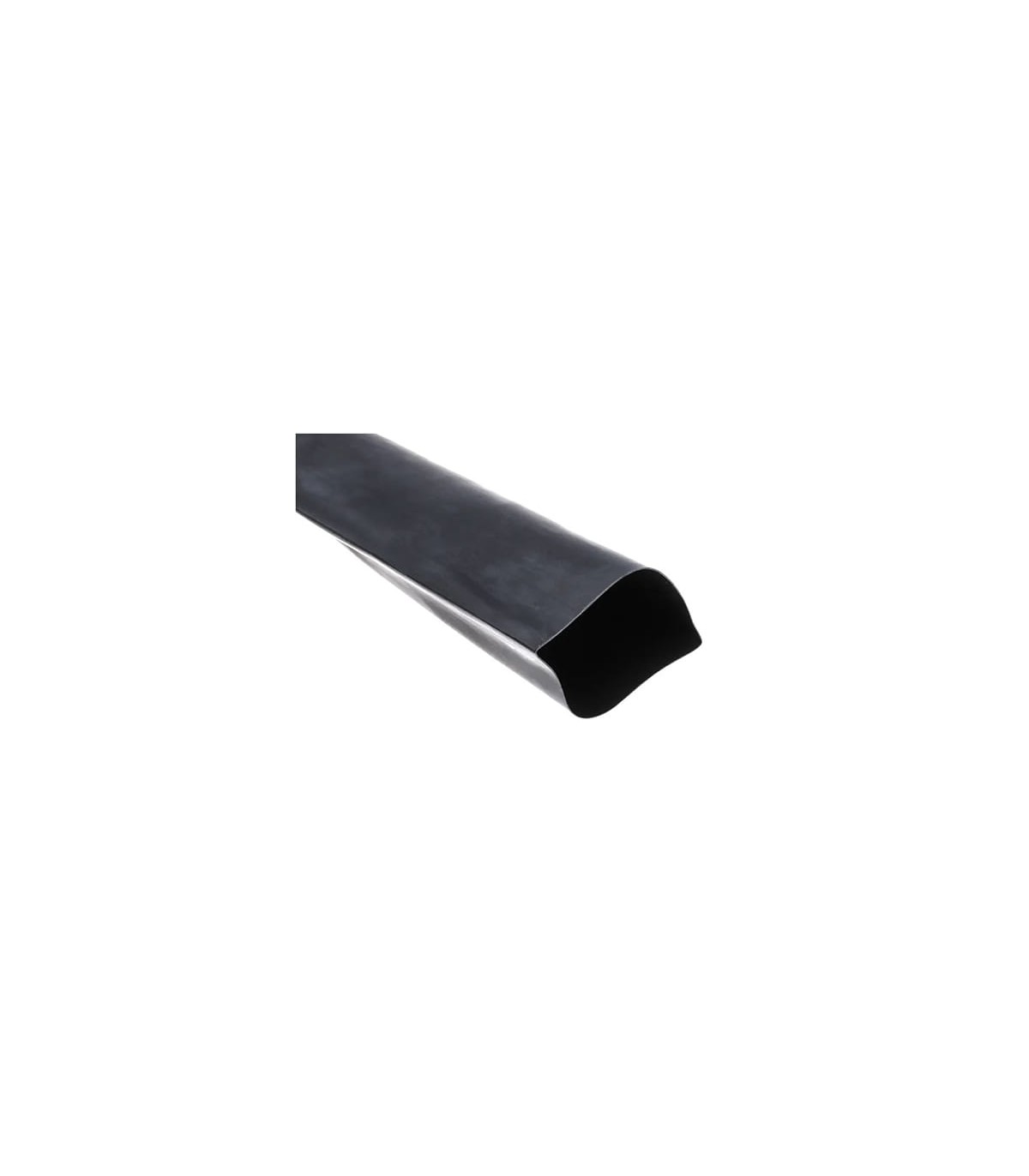

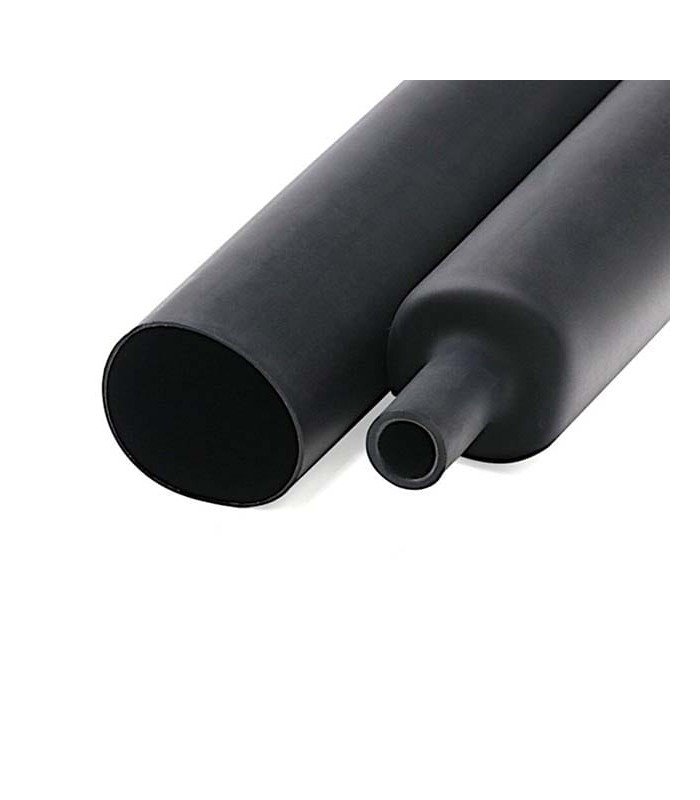

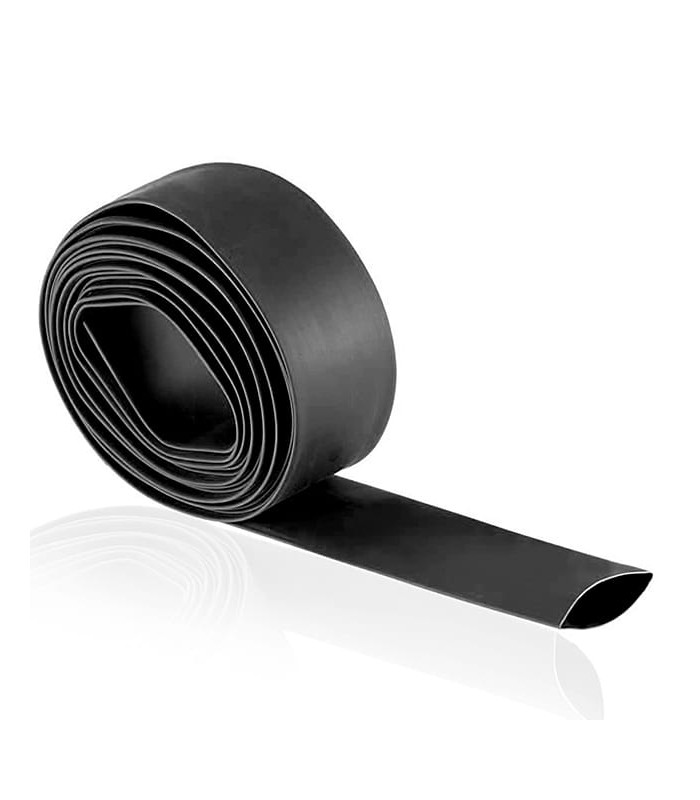

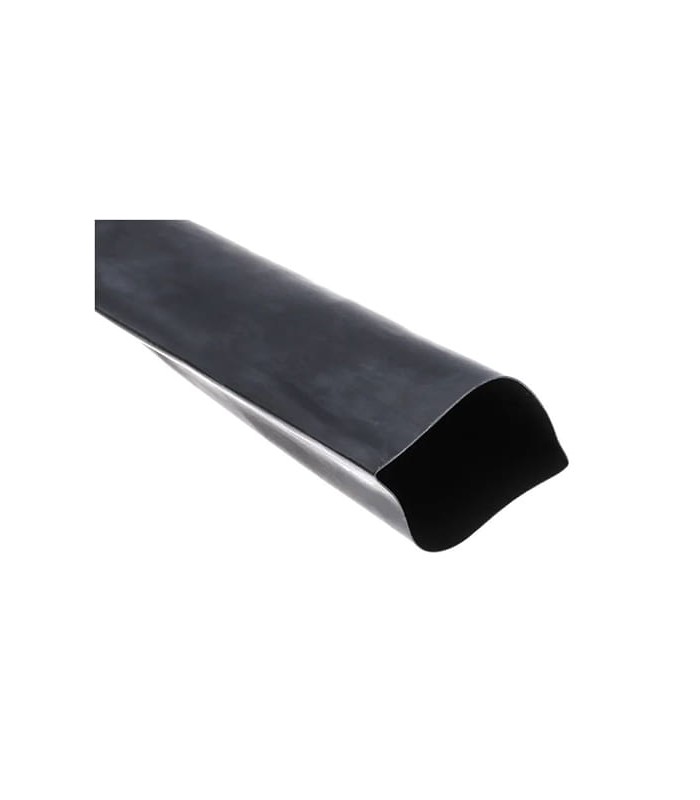

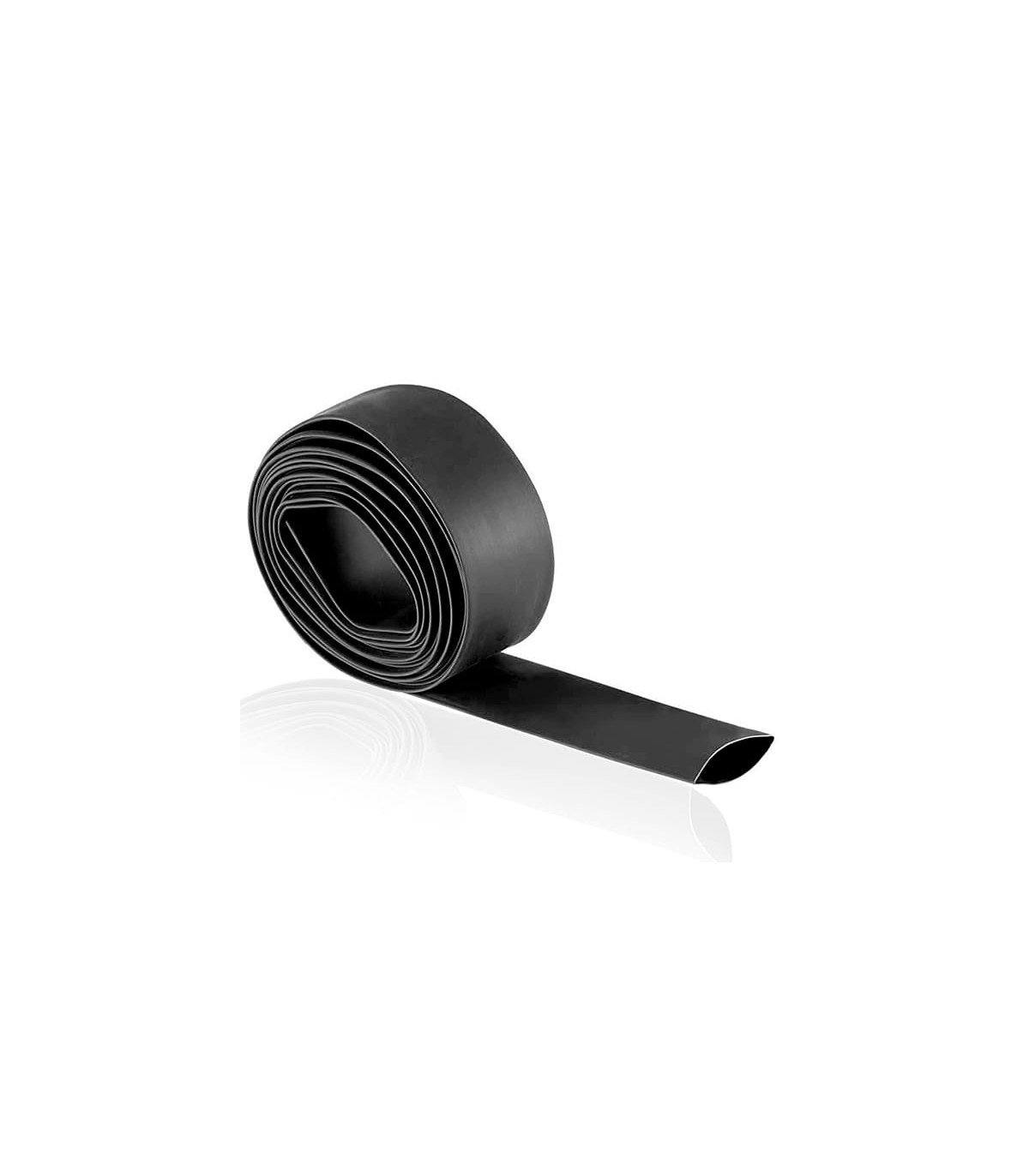

Heat shrink tubing with Glue diameter 19mm 3:1 Black

Errebi code: 15508
Diameter: 19mm
Working temperature (°C): -55° / +110°
Price for meter
Read moreShow less
€6.60 (tax excl.)
€8.05

Discounts for quantities

Quantity Unit price You Save
5 €7.54 €2.56
10 €5.88 €21.72
25 €5.24 €70.29
100 €4.60 €345.11
200 €4.09 €792.48
Available in stock 372 Items
Condition
New
Reference:
RBGNTRC19
Add to wishlist(1)
Description
Sheath polyolefin with adhesive inside for insulation resistant to moisture,
flexible, with a high ratio of shrinkage.
The sticker inside alloy with plastic, rubber, neoprene, steel and polyethylene.
Continuous operating temperature from -55 ° C to + 110 ° C.
Shrink Temperature: 95 ° C.
Packaging: Coils, or to measure
Standard colors: black and transparent.
SELF EXTINGUISHING

Tensile strength: 15 MPa
Shrinkage: 4: 1
Elongation at break: 400%
Longitudinal: 18% max
Specific weight: 1,25g / cm³
Elongation at break after heat aging (168 hours at 150 ° C): 320%
Tensile strength after thermal aging (168 hours at 150 ° C): 15 MPa
Elongation after Heat Shock (4 hours at 200 ° C) to IEC 811-1-2 360%
Tensile strength after thermal shock (4 hours at 200 ° C): 15 MPa
Low Temperature Flexibility: It does not break at -55 ° C
Flammability: Self-extinguishing UL 224
Dielectric Strength: 2 22 kV / mm
Volume Resistivity: 10 Ohm x cm
Weathering: Non-corrosive
Water absorption: 0.
Read moreShow less
Product Details
RBGNTRC19

Data sheet

Product type
Heat Shrink Tubing
Material
Polyolefin
Color
Black
Operating temperature
-55°C to +110°C
Internal diameter
19 mm
Shrink Ratio
3 to 1
Minimum shrink temperature
95°C
Glue
Yes
Low temperature flexibility
Up to -55° C
Dielectric rigidity
22 kv/mm
Thickness
2.1 mm
Expandable
No
Minimum order quantity
1
Unit Type
metre
