RBCCOCL1.5F5C

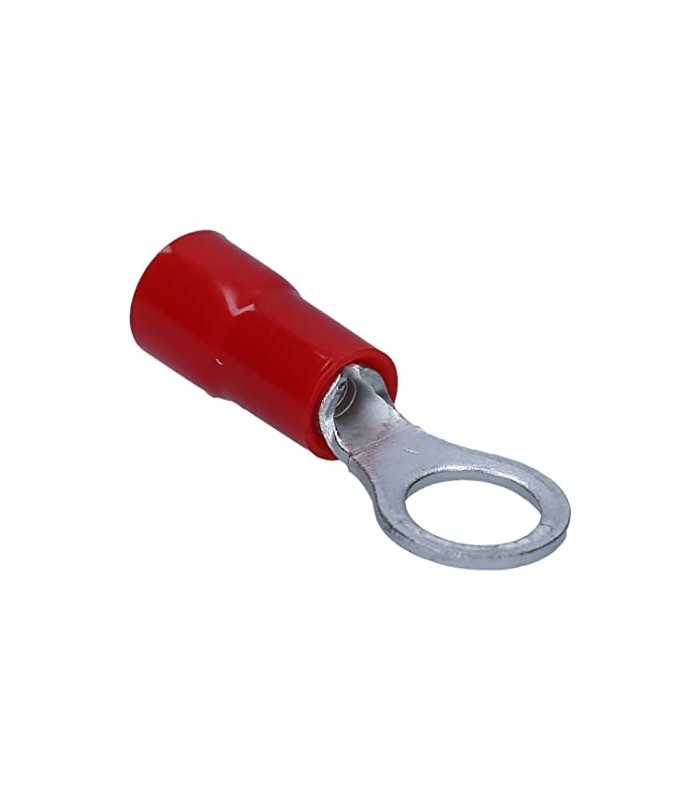

Cable lug Ring 1,5 mm Pre-Isolated Red Hole 5 Cembre

Codice ErreBi: 57723
Codice produttore: RF-M5
Produttore: Cembre
Read moreShow less
€0.13 (tax excl.)
€0.16 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
20 €0.16 €0.00
40 €0.13 €1.27
60 €0.12 €2.38
100 €0.10 €5.57
260 €0.09 €18.54
500 €0.08 €39.65
1000 €0.07 €87.31
Available in stock 1268 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCCOCL1.5F5C
Brand:
Cembre
Add to wishlist
Description
PROPERTY:
Red
Width: 7.8mm
Length: 21.1mm
Diameter: 3.9mm
Hole diameter: 5.3mm
UL94 class: V0
Minimum temperature of use: -20 °C
Maximum use temperature: 80°C
Maximum use temperature for short periods: 90 °C
Dimensional Shape:Eyelet
Material (Body): Electrolytic copper
Material (partially insulating jacket): PVC
Minimum temperature of use: -20 °C
Maximum use temperature: 80°C
Maximum use temperature for short periods: 90 °C
Read moreShow less
Product Details
RBCCOCL1.5F5C

Data sheet

Product type
Eyelet Terminal
Operating temperature
-20°C a +80°C
Contact material
Electrolytic Copper
Mounting
On cable
Wire range
0.25 - 1.50 mmq
Contact plating
Tin
Insulation material
PVC
Insulation color
Red
Isolation
Yes
Diameter
5 mm
Minimum order quantity
20
Unit Type
pieces
