RBCCOCL1.5F4C

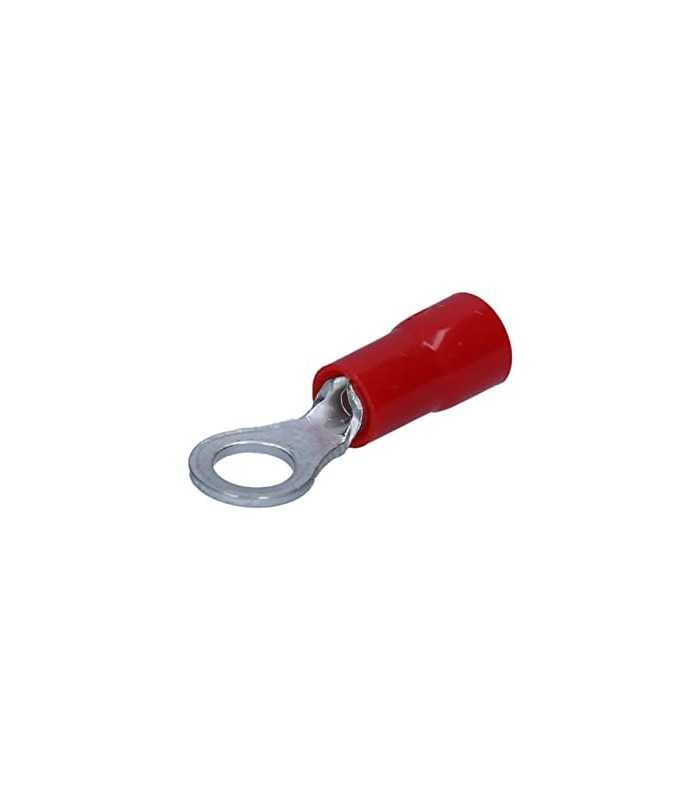

Cable lug Ring 1,5 mm Pre-Isolated Red Hole 4 Cembre

Codice ErreBi: 57845
Codice produttore: RF-M4
Produttore: Cembre
Read moreShow less
€0.18 (tax excl.)
€0.22 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €0.22 €0.00
30 €0.18 €1.31
50 €0.16 €2.75
100 €0.14 €7.71
250 €0.12 €24.68
500 €0.11 €54.90
1000 €0.10 €120.89
Available in stock 1604 Items
The minimum purchase order quantity for the product is 10.
Condition
New
Reference:
RBCCOCL1.5F4C
Brand:
Cembre
Add to wishlist
Description
PROPERTY
Red
Width: 7.8mm
Length: 21.1mm
Diameter: 3.9mm
Hole diameter: 4.3mm
Dimensional Shape: Eyelet
UL94 class: V0
Minimum temperature of use: -20 °C
Maximum use temperature: 80°C
Maximum use temperature for short periods: 90 °C
Dimensional Shape: Eyelet
Material (Body): Electrolytic copper
Material (partially insulating jacket): PVC
Minimum temperature of use: -20 °C
Maximum use temperature: 80°C
Maximum use temperature for short periods: 90 °C
Read moreShow less
Product Details
RBCCOCL1.5F4C

Data sheet

Product type
Eyelet Terminal
Operating temperature
-20°C a +80°C
Contact material
Electrolytic Copper
Mounting
On cable
Wire range
0.25 - 0.75 mmq
Contact plating
Tin
Insulation material
PVC
Insulation color
Red
Isolation
Yes
Diameter
4 mm
Minimum order quantity
10
Unit Type
pieces
