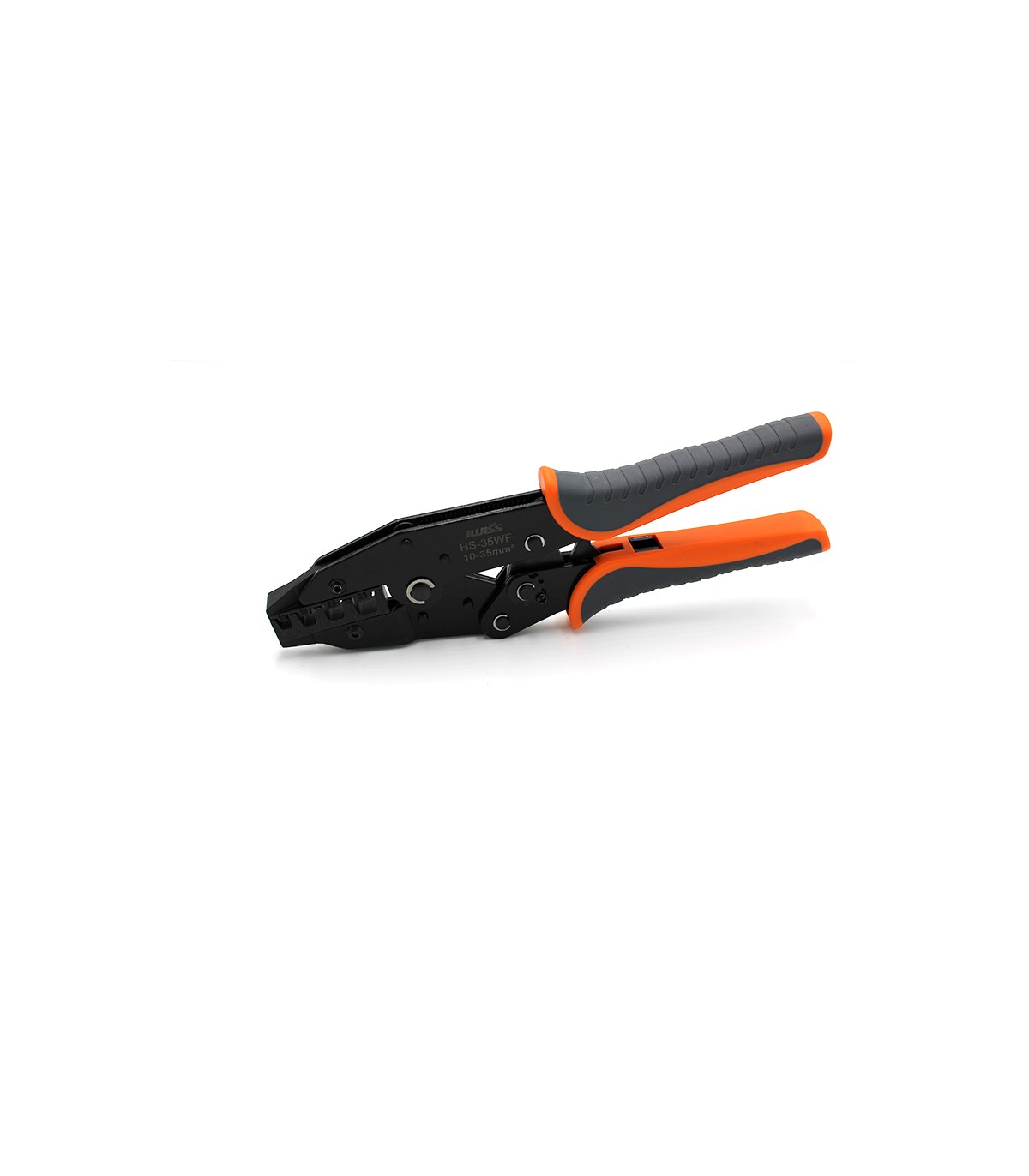

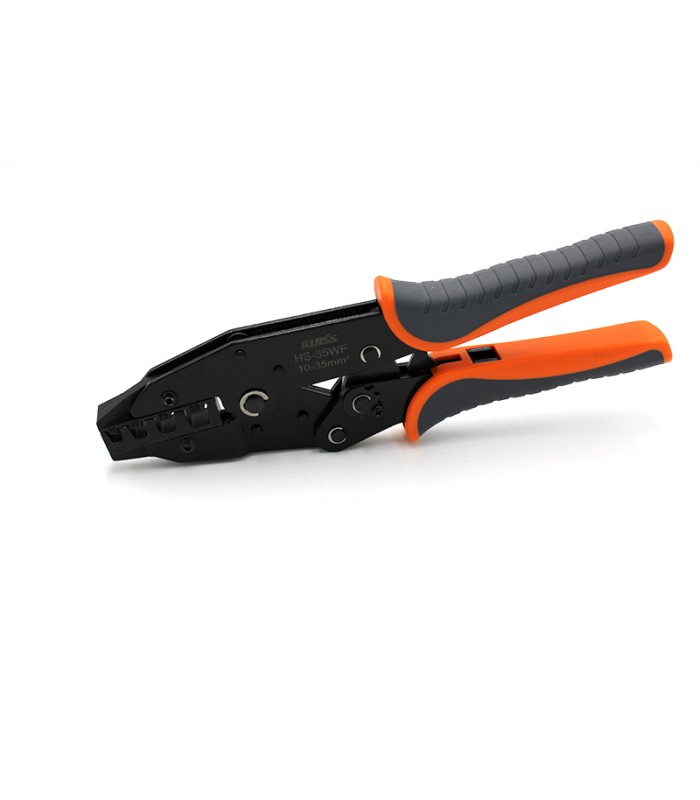

HS series collet for ferrules 10-35 mmq

The HS series crimping tool for bootlace ferrules is a professional manual tool designed for crimping ferrules on electrical cables with a cross-section from 10 to 35 mm², approximately corresponding to AWG 8 - 2.

It is suitable for electrical wiring, electrical panels, industrial systems, electrical maintenance and applications where stable, precise and repeatable crimping is required.

The adjustable ratchet mechanism allows the crimping pressure to be controlled, helping to obtain uniform tightening of the ferrule on the cable.

This mechanism reduces the risk of incomplete crimps and allows safer and more precise work even on larger cable sections.

The tool components are made of special steel, a material that ensures strength, wear resistance and good durability over time.

The presence of precise crimping dies and the locking system with auto-release allows the crimping cycle to be completed correctly before the tool opens.

The lightweight and compact structure, combined with the ergonomic handle, provides a comfortable and stable grip during use.

The tool is therefore suitable both for maintenance work and for repetitive professional applications.


OPERATING PRINCIPLE

- The bootlace ferrule is inserted into the crimping die
- The stripped cable is positioned inside the ferrule
- The operator closes the tool until the cycle is completed
- The ratchet mechanism ensures controlled crimping
- The auto-release system allows the tool to open once the cycle is complete
- The crimped cable is ready for connection in terminal blocks or electrical panels

MAIN ADVANTAGES

- Designed for bootlace ferrules from 10 to 35 mm²
- Compatible with AWG 8 - 2 cables
- Adjustable ratchet mechanism
- Precise, stable and repeatable crimping
- Components made of special steel
- Precise crimping dies
- Integrated locking system with auto-release
- Accurate adjustment before delivery
- Compact and lightweight structure
- Ergonomic handle for a comfortable grip
- Ideal for professional electrical wiring
- Suitable for maintenance, installation and production

MAIN APPLICATIONS

- Crimping of bootlace ferrules
- Electrical wiring
- Electrical panels
- Terminal blocks and electrical connections
- Industrial systems
- Industrial automation
- Professional electrical maintenance
- Wiring harness production
- Civil and industrial electrical installations
- Processing of medium and large section cables

TECHNICAL FEATURES

Type: manual ratchet crimping tool

Series: HS

Application: bootlace ferrules

Cable range: 10 - 35 mm²

AWG range: AWG 8 - 2

Mechanism: adjustable ratchet

Release system: auto-release with integrated lock

Dies: precise crimping dies

Component material: special steel

Length: 230 mm

Weight: 0.6 kg

Use: professional manual crimping

Application sectors: electrical wiring, electrical panels, automation, industrial maintenance
