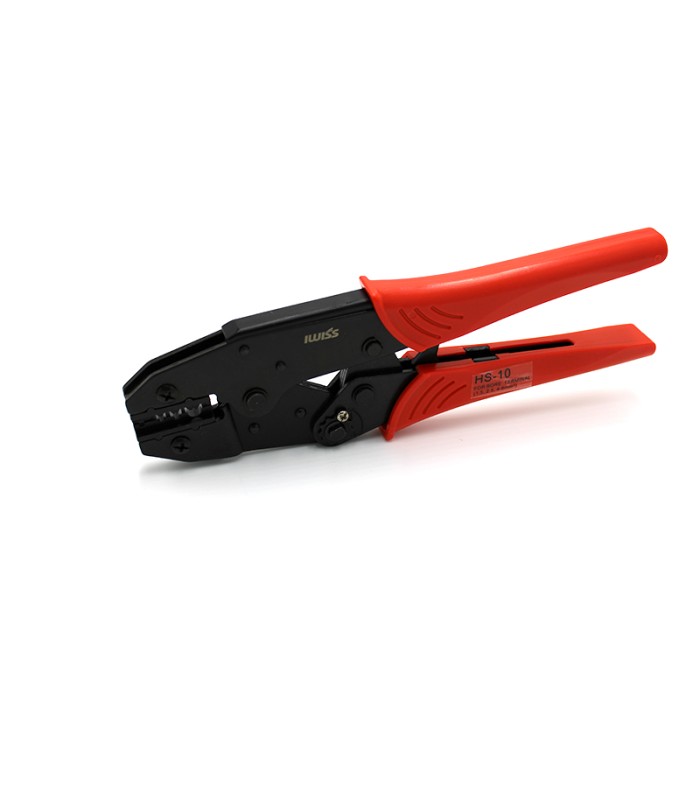

Crimping tools HS series for bare terminals 1.5-6.0mmq

The HS series crimping tool for non-insulated terminals is a professional manual tool designed for crimping bare terminals on electrical cables with a cross-section from 1.5 to 6.0 mm², approximately corresponding to AWG 16 - 10.
It is suitable for electrical wiring, electrical panels, industrial systems, electrical maintenance and applications where stable, precise and repeatable crimping is required.
The adjustable ratchet mechanism allows the crimping pressure to be controlled, helping to obtain uniform tightening of the terminal on the cable.
This mechanism reduces the risk of incomplete crimps and allows safer and more precise work even in repetitive applications.
The tool components are made of special steel, a material that ensures strength, wear resistance and good durability over time.
The presence of precise crimping dies and the locking system with auto-release allows the crimping cycle to be completed correctly before the tool opens.
The lightweight and compact structure, combined with the ergonomic handle, provides a comfortable and stable grip during use.
The tool is therefore suitable both for maintenance work and for professional crimping operations on non-insulated terminals.

OPERATING PRINCIPLE

- The non-insulated terminal is inserted into the crimping die
- The stripped cable is positioned inside the terminal
- The operator closes the tool until the cycle is completed
- The ratchet mechanism ensures controlled crimping
- The auto-release system allows the tool to open once the cycle is complete
- The crimped cable is ready for connection in terminal blocks, electrical panels or systems

MAIN ADVANTAGES

- Designed for non-insulated terminals from 1.5 to 6.0 mm²
- Compatible with AWG 16 - 10 cables
- Adjustable ratchet mechanism
- Precise, stable and repeatable crimping
- Components made of special steel
- Precise crimping dies
- Integrated locking system with auto-release
- Accurate adjustment before delivery
- Compact and lightweight structure
- Ergonomic handle for a comfortable grip
- Ideal for professional electrical wiring
- Suitable for maintenance, installation and production

MAIN APPLICATIONS

- Crimping of non-insulated terminals
- Electrical wiring
- Electrical panels
- Terminal blocks and electrical connections
- Industrial systems
- Industrial automation
- Professional electrical maintenance
- Wiring harness production
- Civil and industrial electrical installations
- Processing of small and medium section cables

TECHNICAL FEATURES

Model: HS-10

Type: manual ratchet crimping tool

Series: HS

Application: non-insulated terminals

Cable range: 1.5 - 6.0 mm²

AWG range: AWG 16 - 10

Mechanism: adjustable ratchet

Release system: auto-release with integrated lock

Dies: precise crimping dies

Component material: special steel

Length: 230 mm

Weight: 0.6 kg

Use: professional manual crimping

Application sectors: electrical wiring, electrical panels, automation, industrial maintenance
