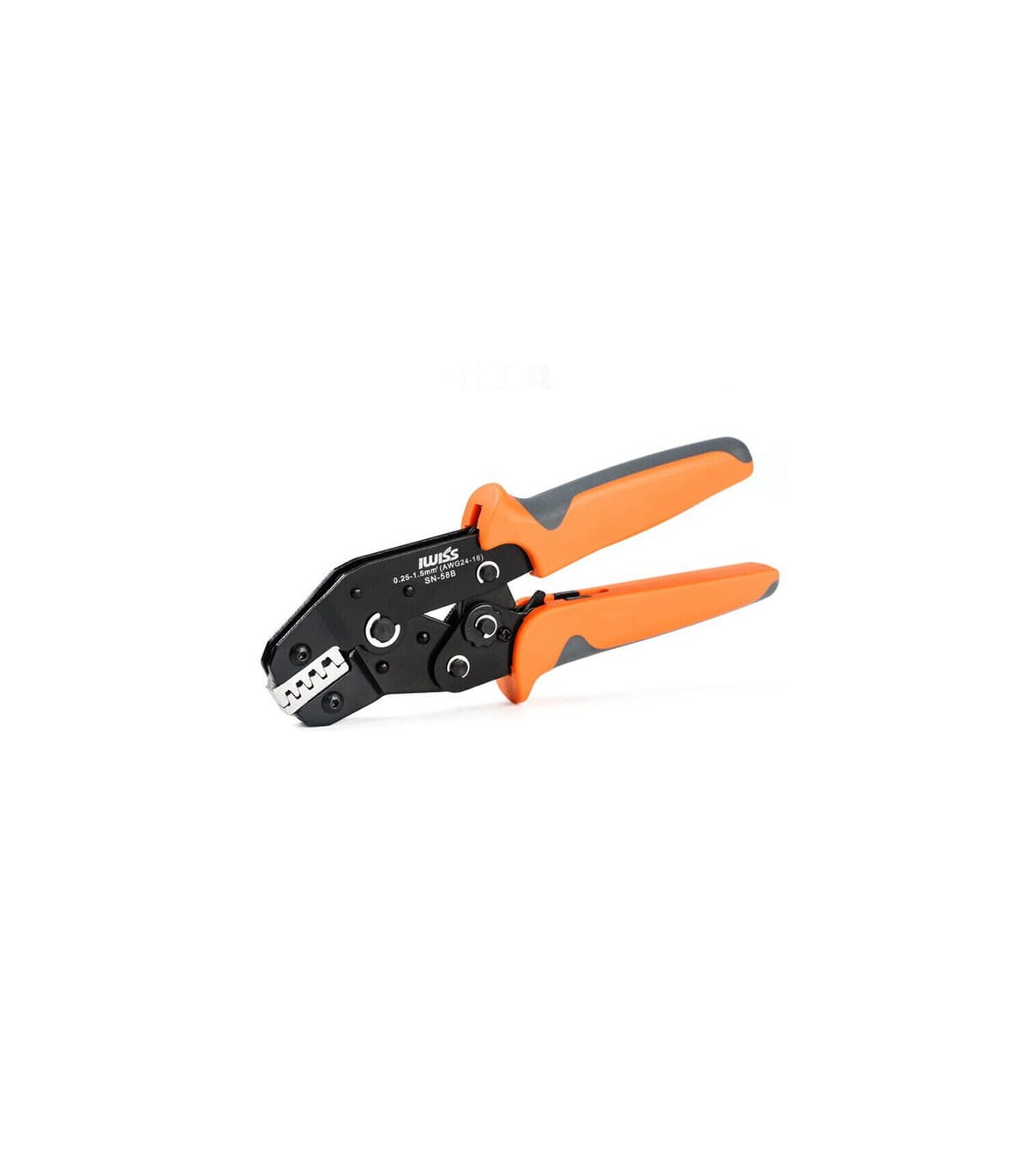

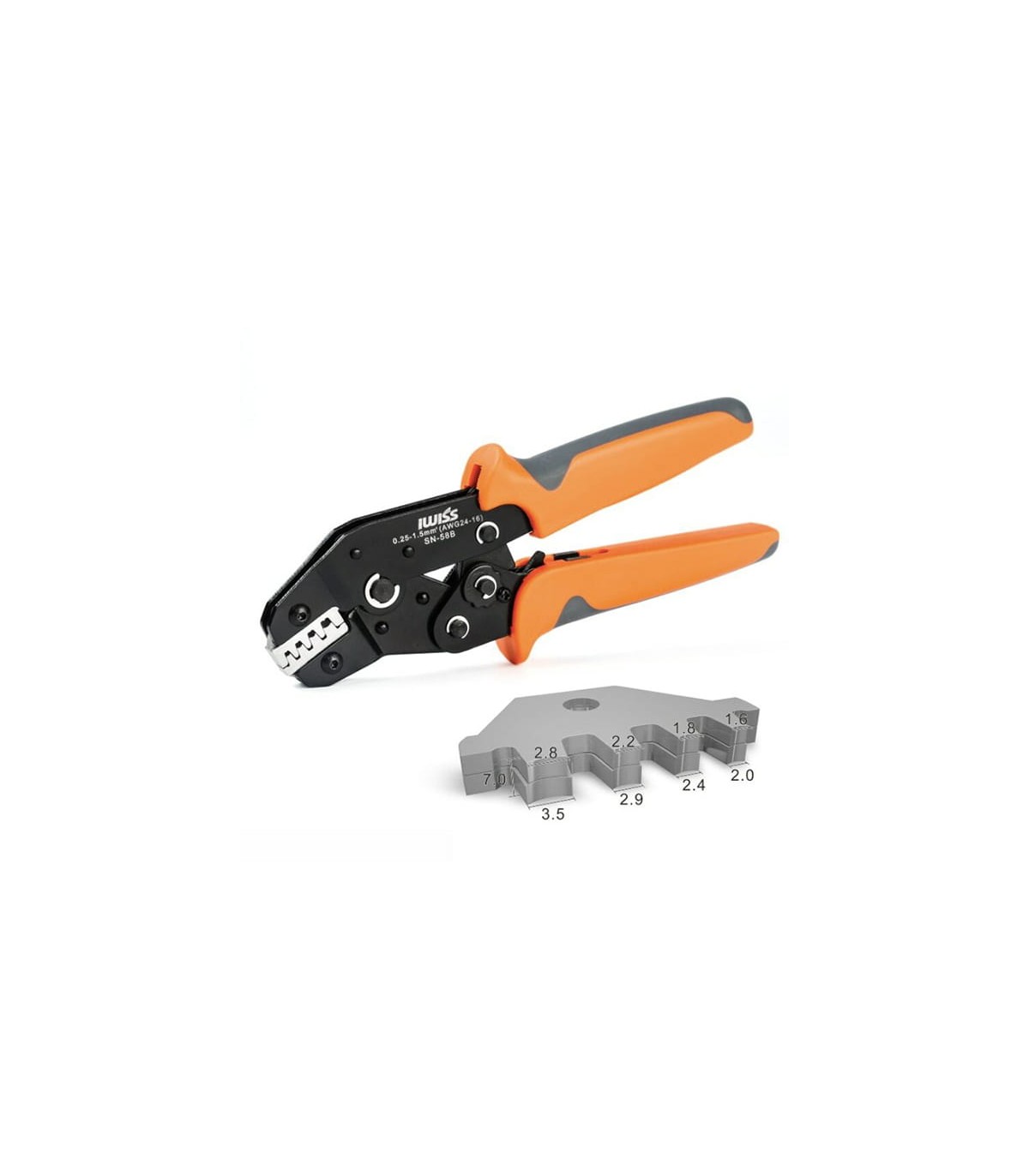

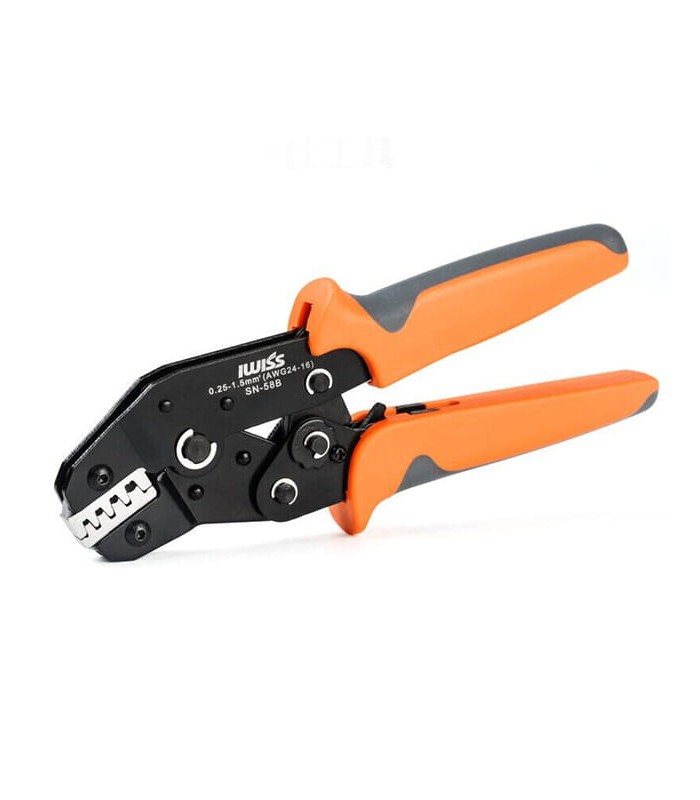

Crimping tool for non-insulated terminals (Dupont, JST, Molex and Faston)

The RBSN-58B is a professional crimping tool designed to ensure a solid, safe, and durable connection between wires and electrical terminals. Built with high-quality materials and precision mechanics, it is an essential tool for electricians, hobbyists, installers, and technicians working daily with electrical systems, automotive wiring, electronics, and cabling.

Main Features

1) Robust structure: high-strength steel body with anti-corrosion treatment for long-lasting use.

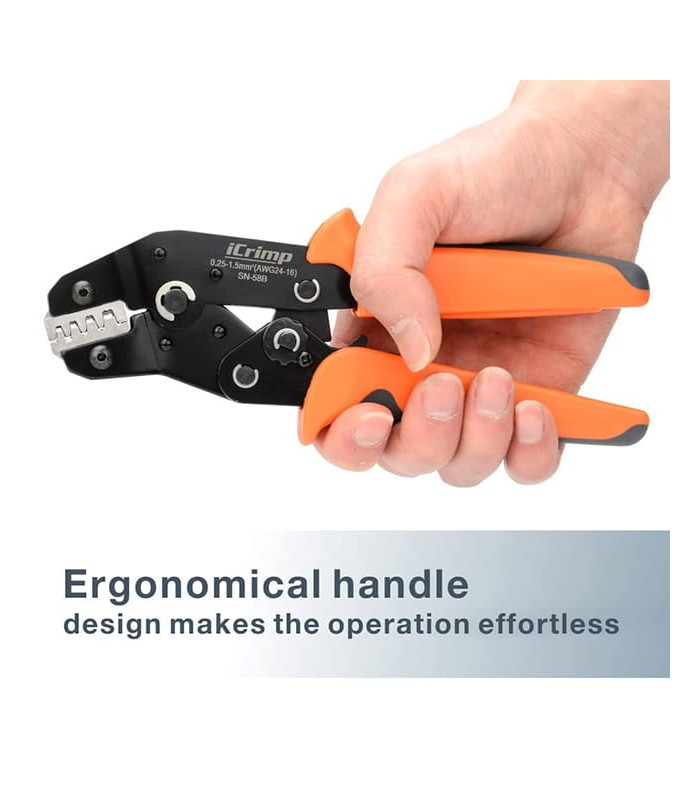

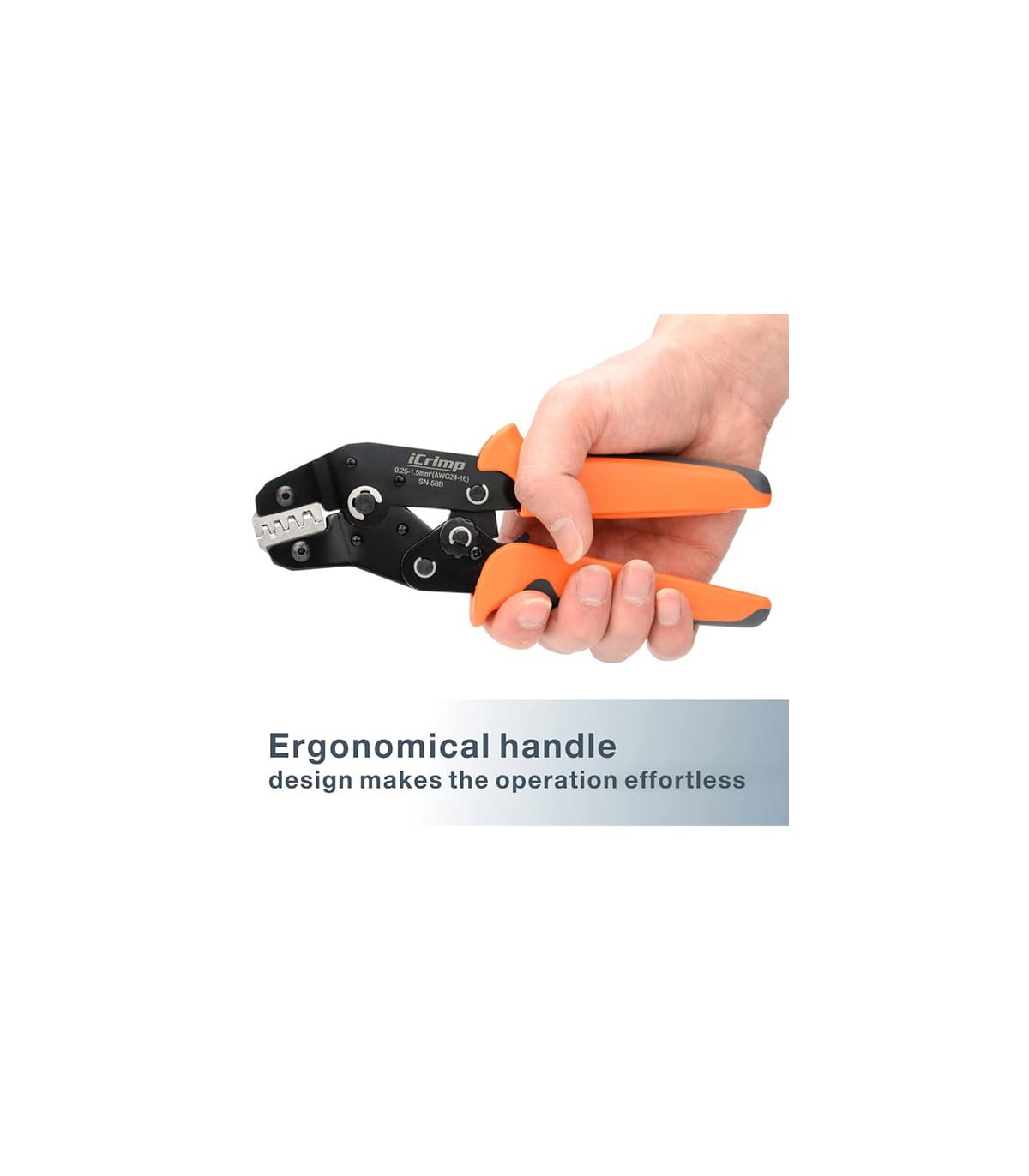

2) Ergonomic handle: non-slip grip for maximum comfort, even during extended work.

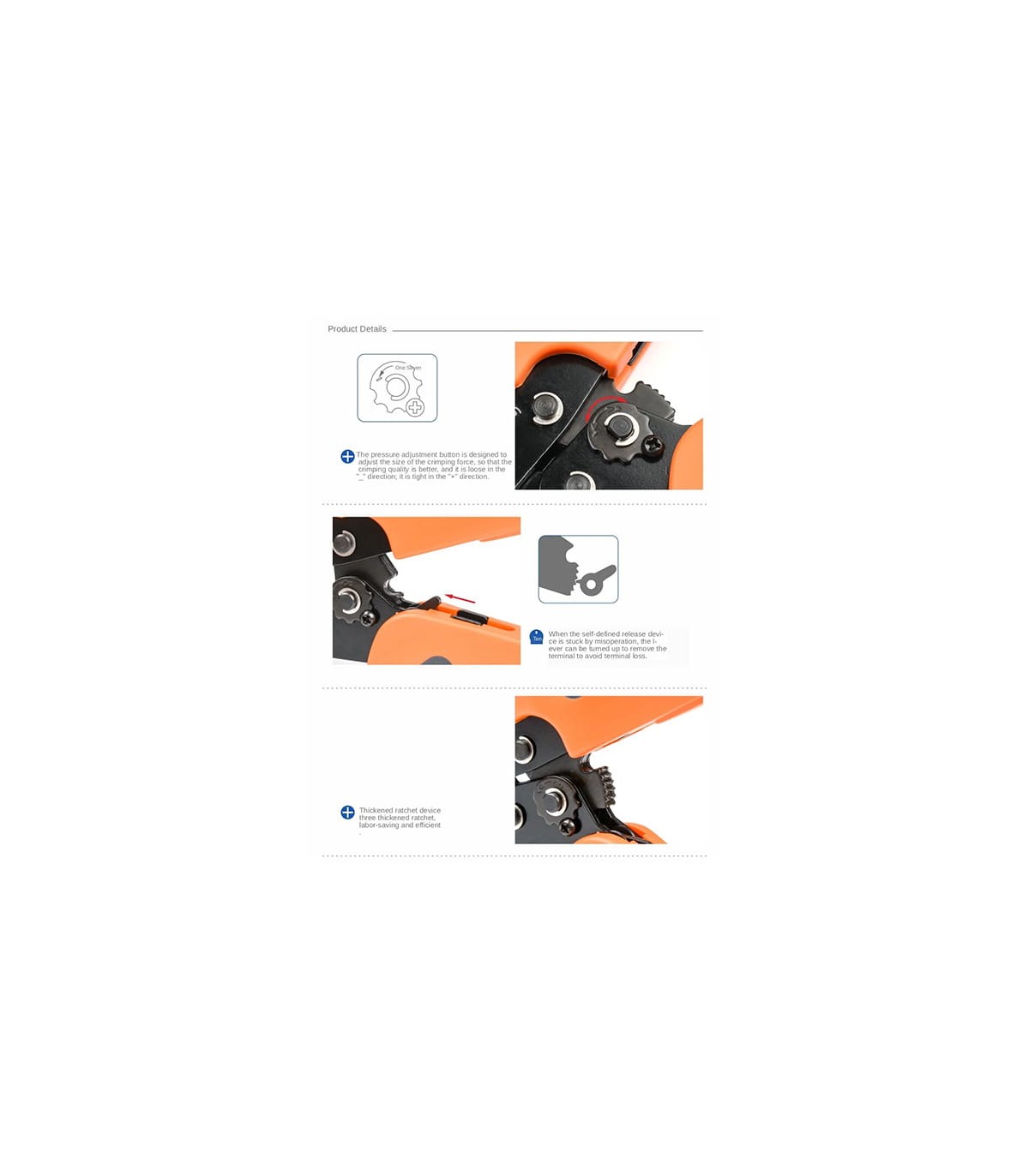

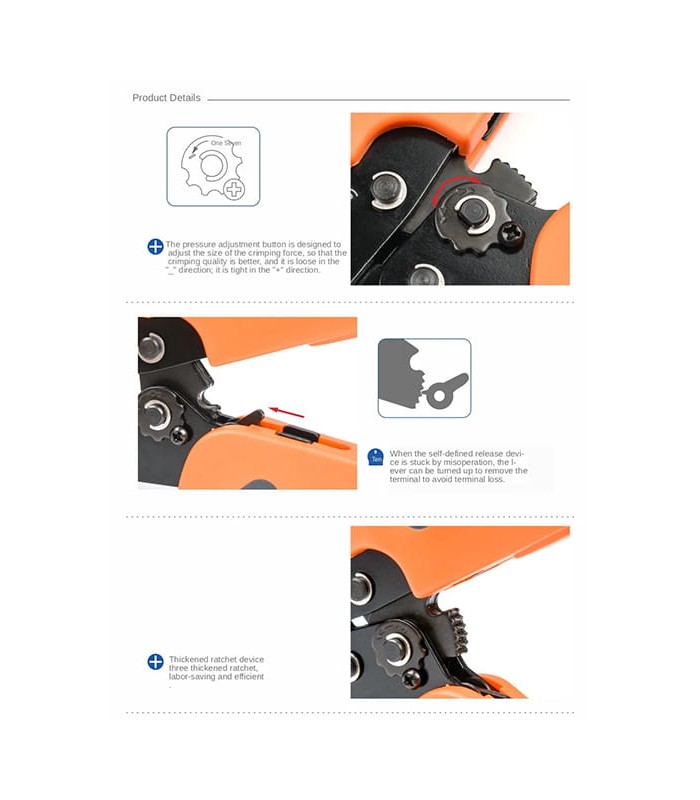

3) Adjustable ratchet system: ensures consistent crimping pressure, delivering uniform results without damaging terminals.

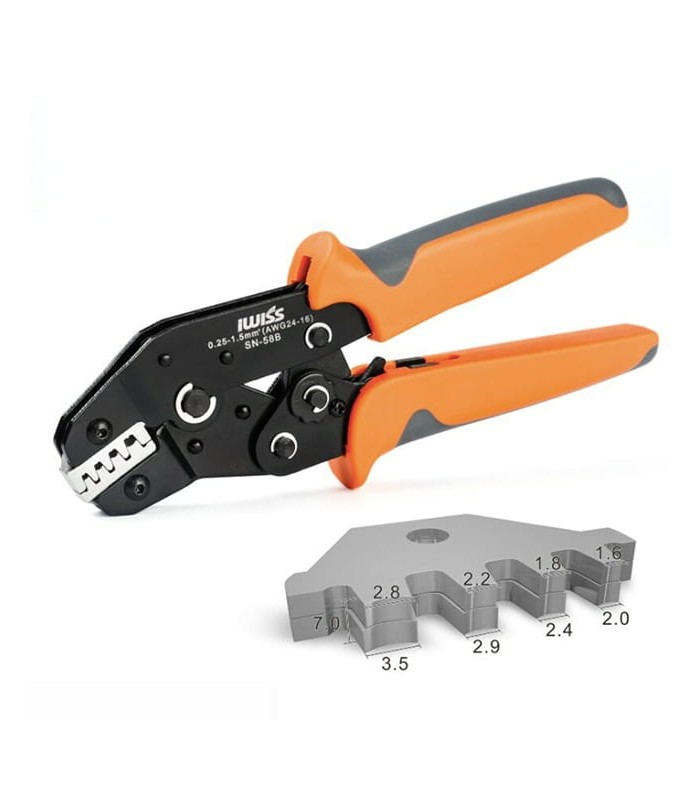

4) Multi-purpose die: suitable for crimping insulated and non-insulated terminals, fastons, ferrules, and various types of electrical connectors.
5) Wide application range: supports cables from 0.25 to 1.50 mm².

Advantages of the RBSN-58B

1) Versatility: suitable for both professional and DIY applications in automotive, industrial and residential electrical systems, audio systems, and electronics.
2) Precision: ratchet mechanism ensures uniform, secure, and reliable crimping.
3) Efficiency: reduces the risk of weak or unstable connections, improving overall work quality.
4) Ease of use: intuitive design allows even beginners to achieve professional results.

Common Uses

1) Electrical wiring for cars, motorcycles, and industrial vehicles.
2) Residential and industrial electrical installations.
3) Assembly of electrical panels and automation systems.
4) Connections in electronic equipment and audio systems.
5) Renewable energy applications (solar panels, batteries, inverters).

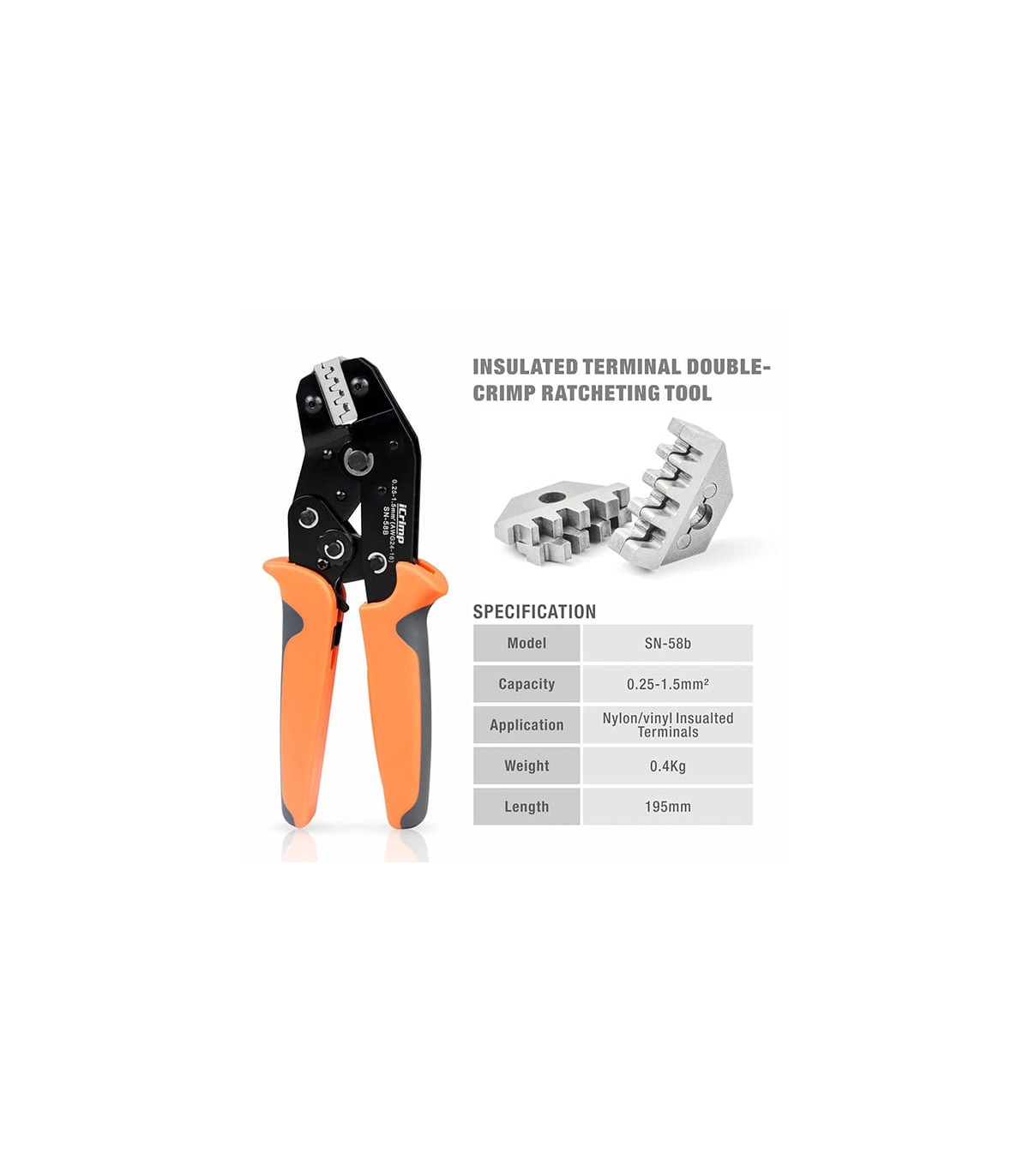

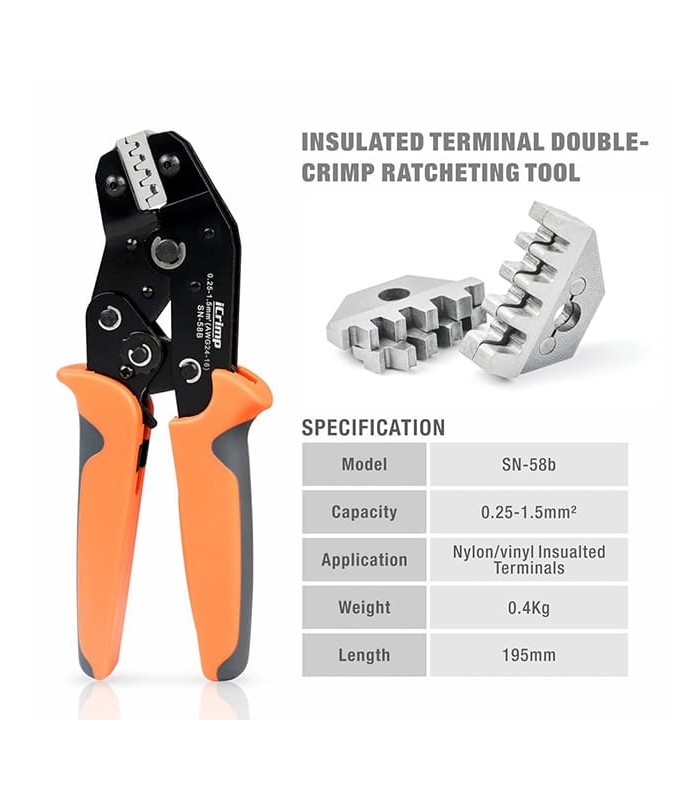

Technical Specifications

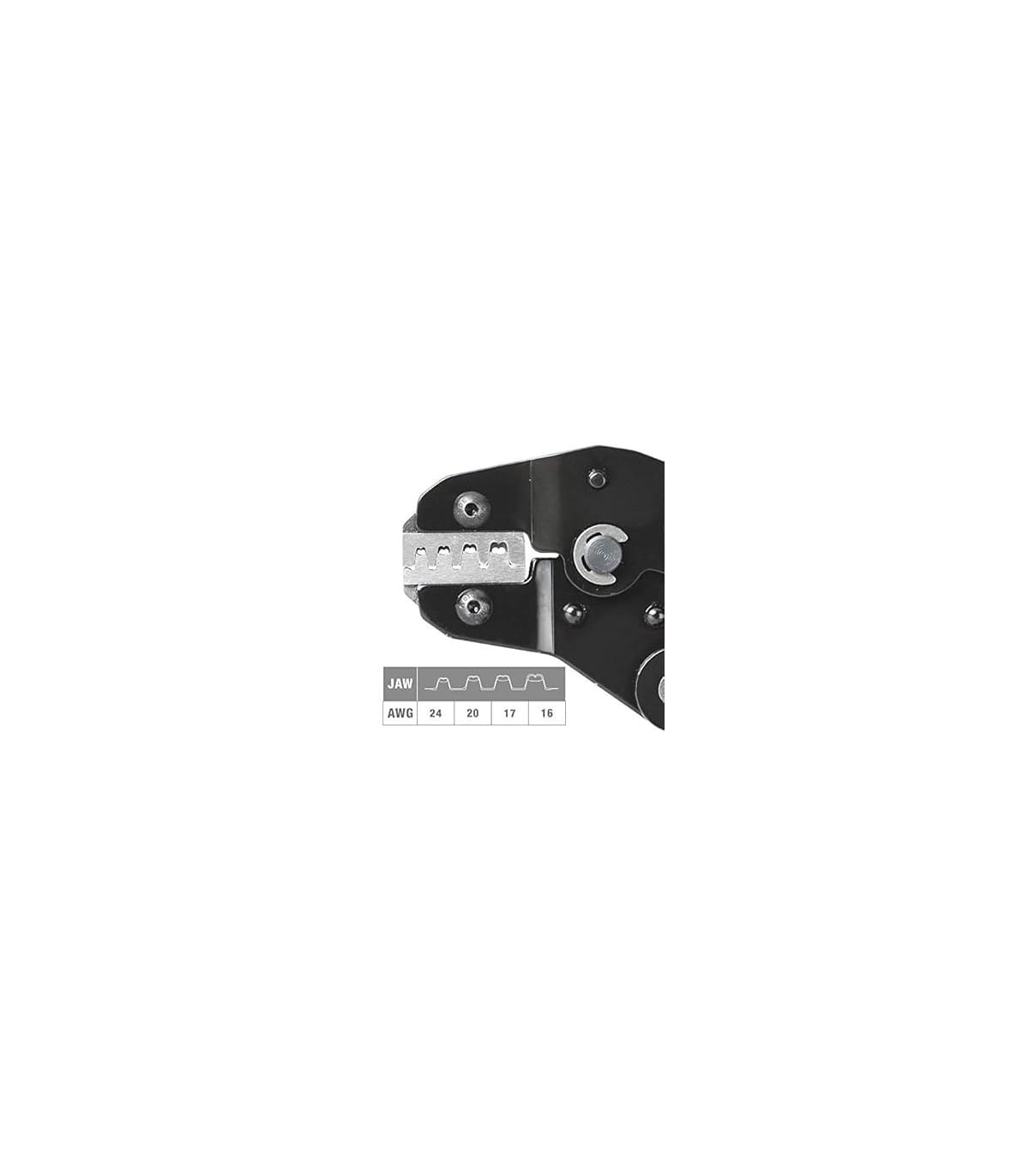

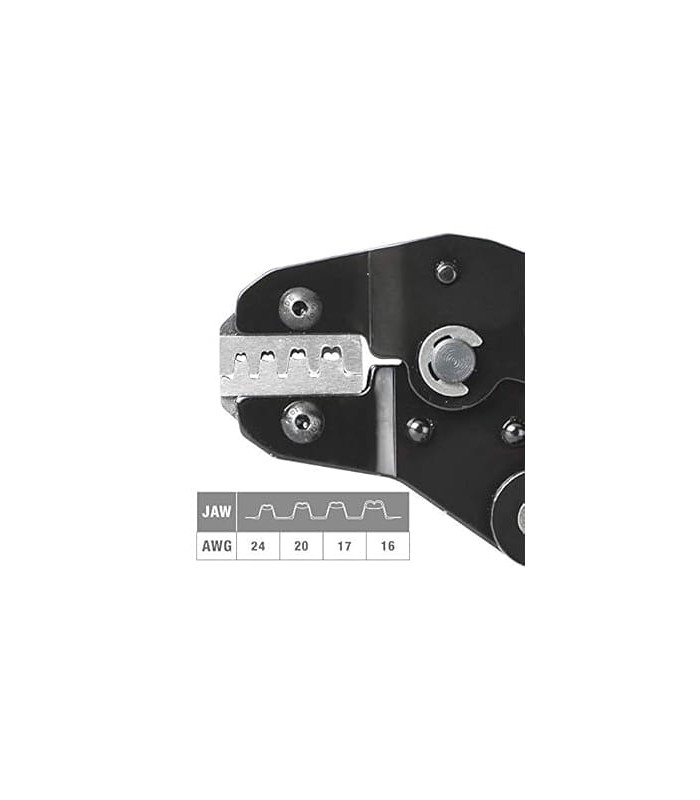

Crimping range (AWG): 24 – 16 AWG
Crimping range (mm²): 0.25 – 1.50 mmq
Mechanism: ratchet action

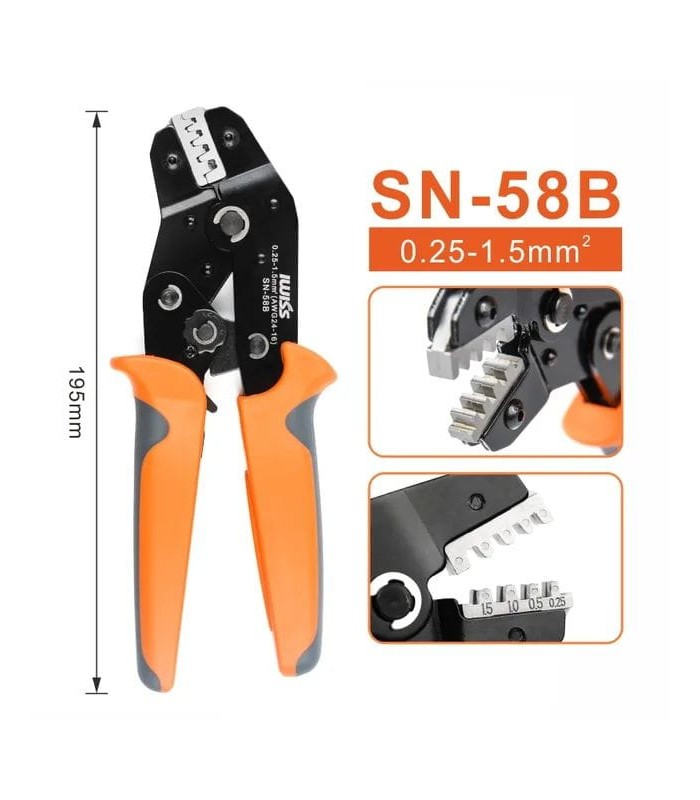

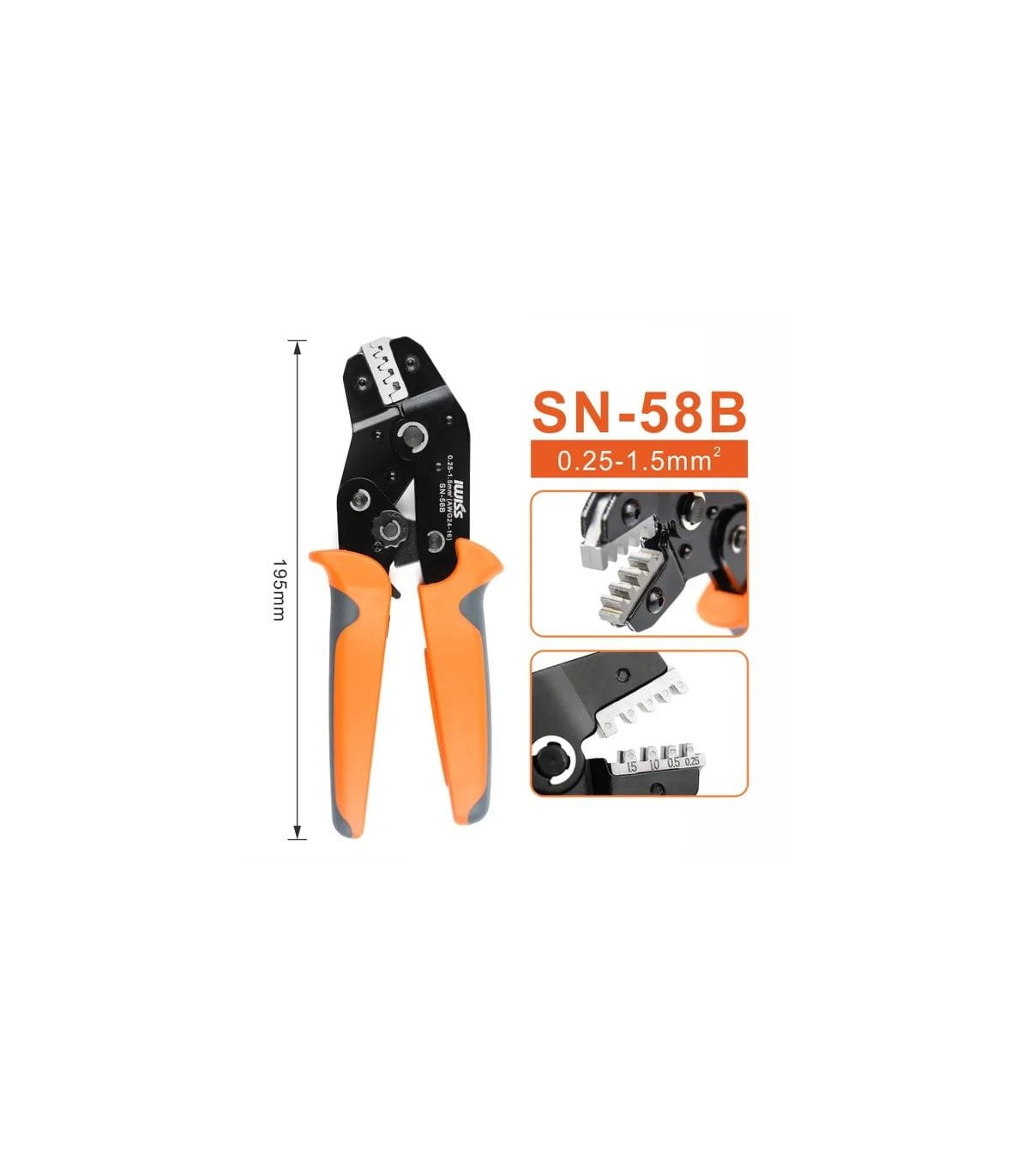

Length: 190 – 195 mm
Terminal compatibility:
Dupont: Jumper 2.54 mm
JST: HX series 2.54 mm pitch / PHR 2.00 mm
Molex: KK series
Faston: 2.8, 4.8, 6.3 mm (ring and fork)
Power supply terminals ATX / EPS / PCIe / SATA (non-insulated pins)
Material: steel with ergonomic rubber grips
