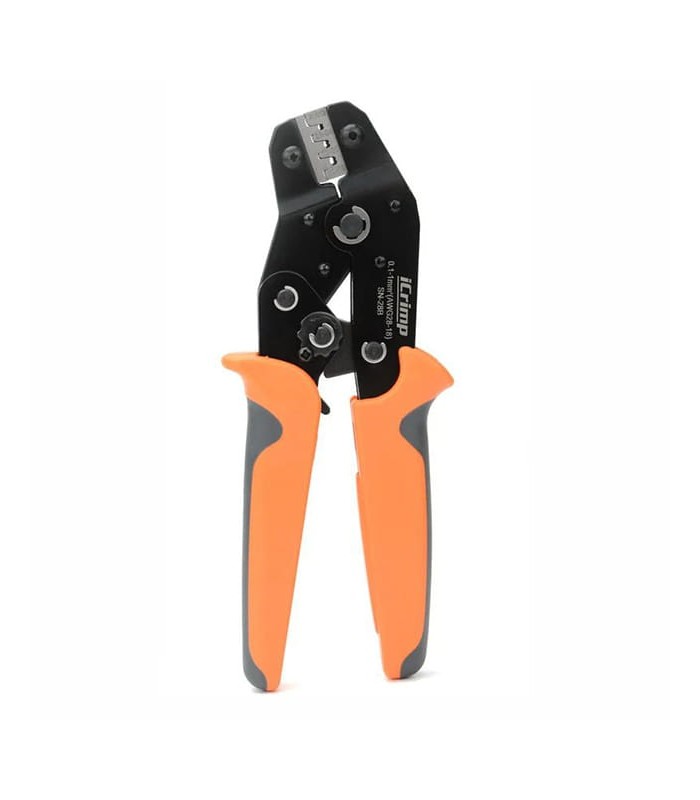

Crimping tool for non-insulated terminals (Dupont, JST, Molex)

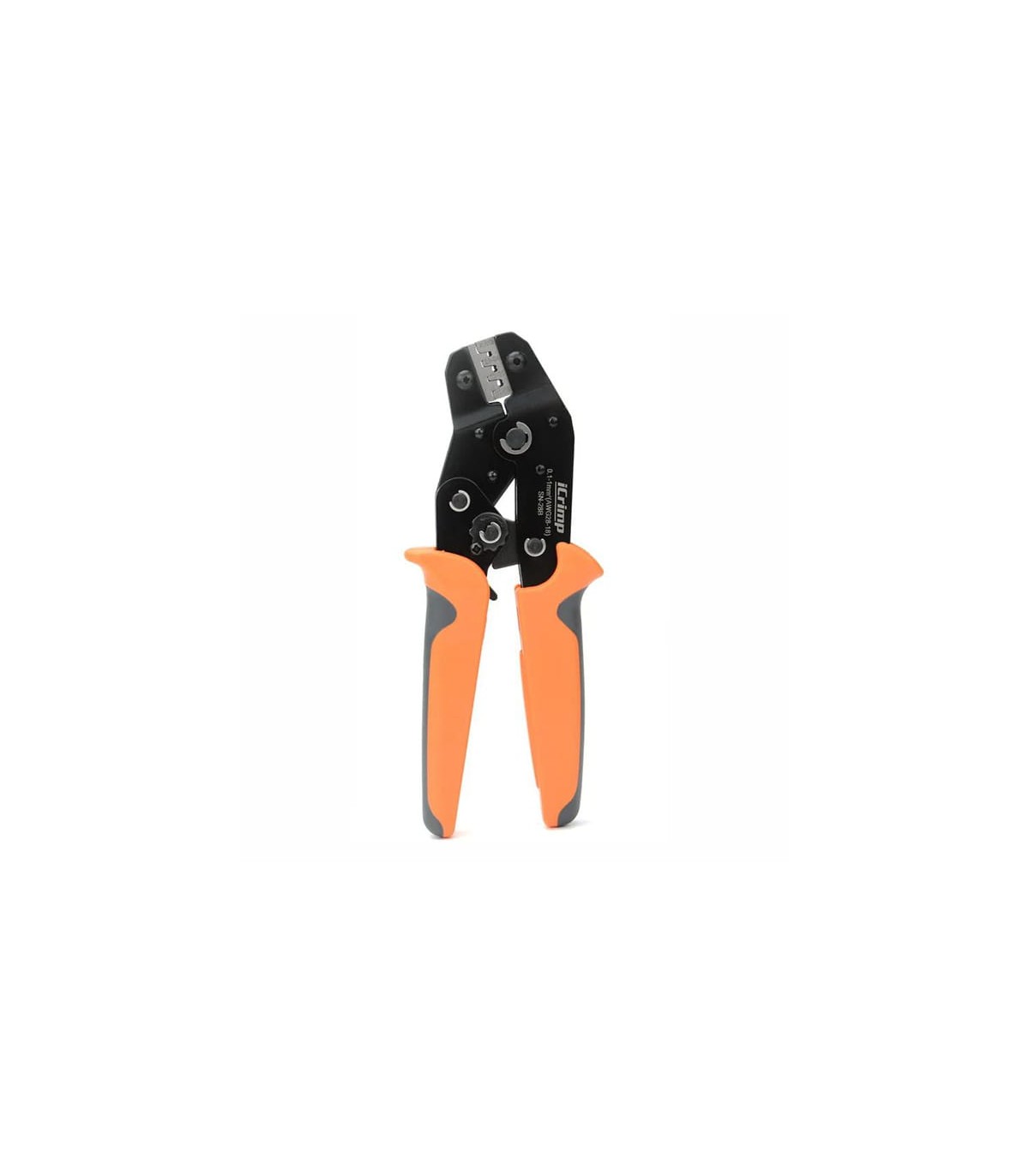

The RBSN-28B is a precision crimping tool designed for crimping open barrel terminals, commonly used with Dupont, JST, and Molex terminals for sensors and electronic wiring. Thanks to its ratchet mechanism and high-strength steel construction, it provides uniform and stable crimps, ensuring reliable and long-lasting electrical connections.

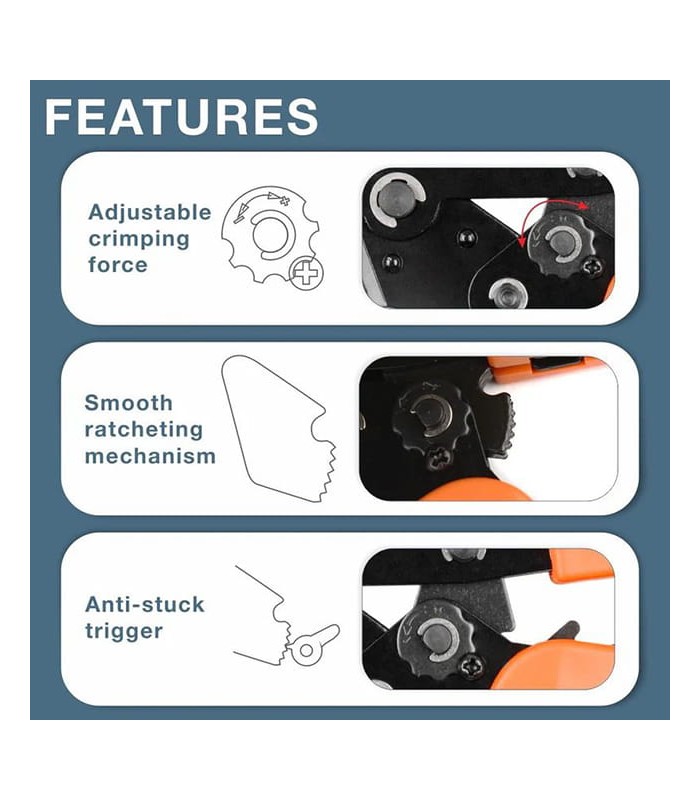

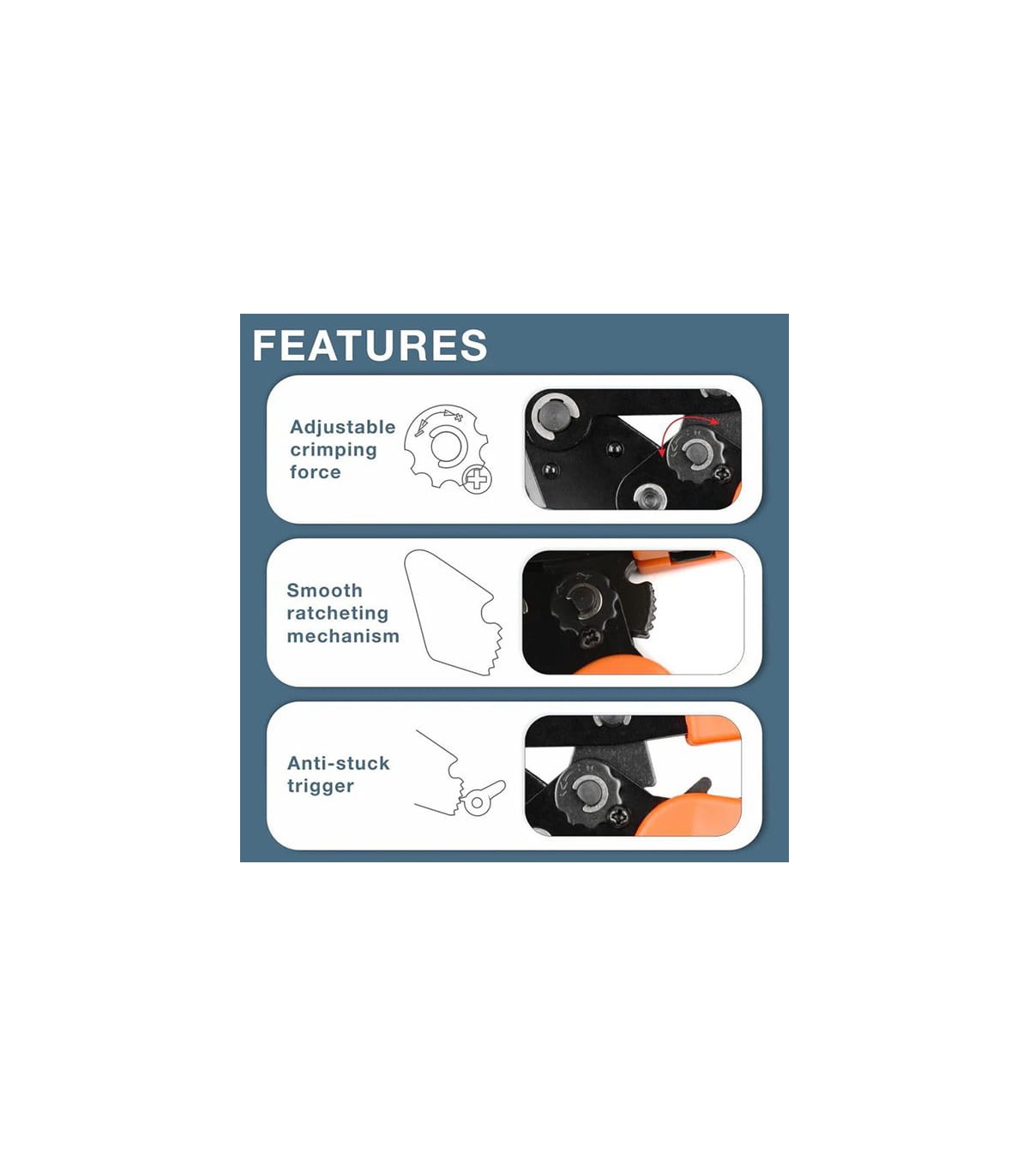

Main Features

1) Precise and stable crimping: suitable for open barrel terminals such as Dupont, JST, and Molex.

2) Robust and durable structure: made of hardened carbon steel with anti-corrosion treatment.

3) Calibrated ratchet mechanism: ensures constant pressure and uniform crimps.

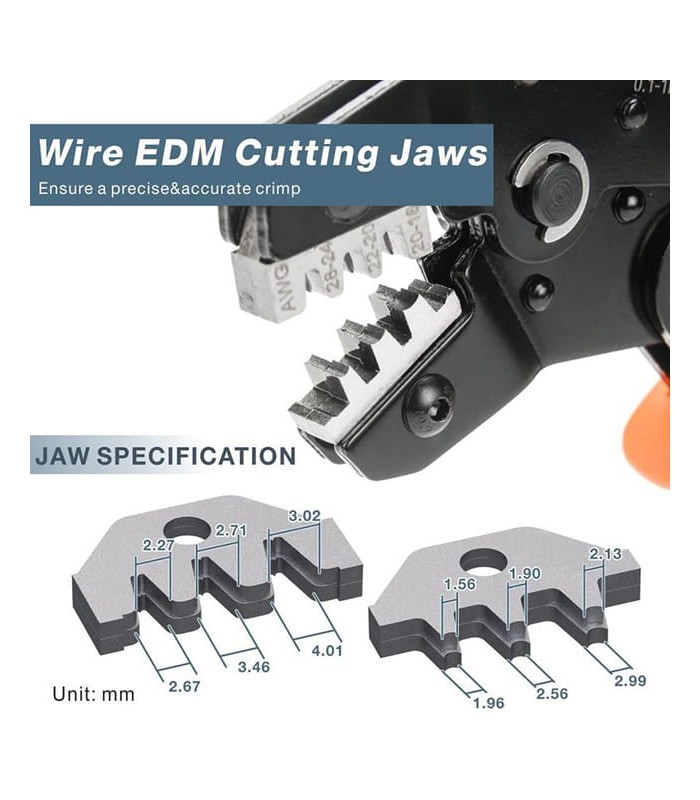

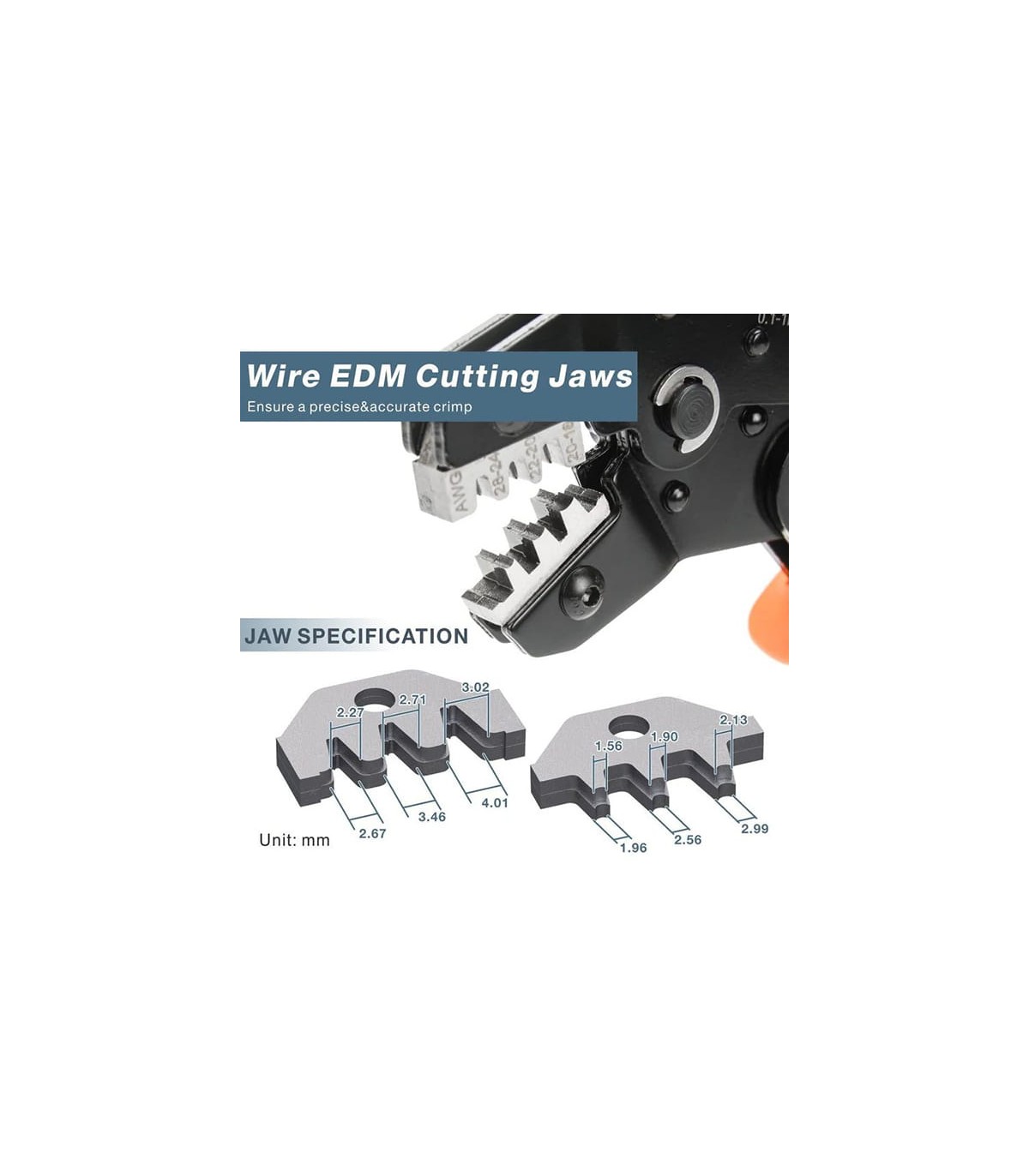

4) Integrated precision dies: designed to crimp wires from 0.10 to 1.00 mm² (AWG 28–18).

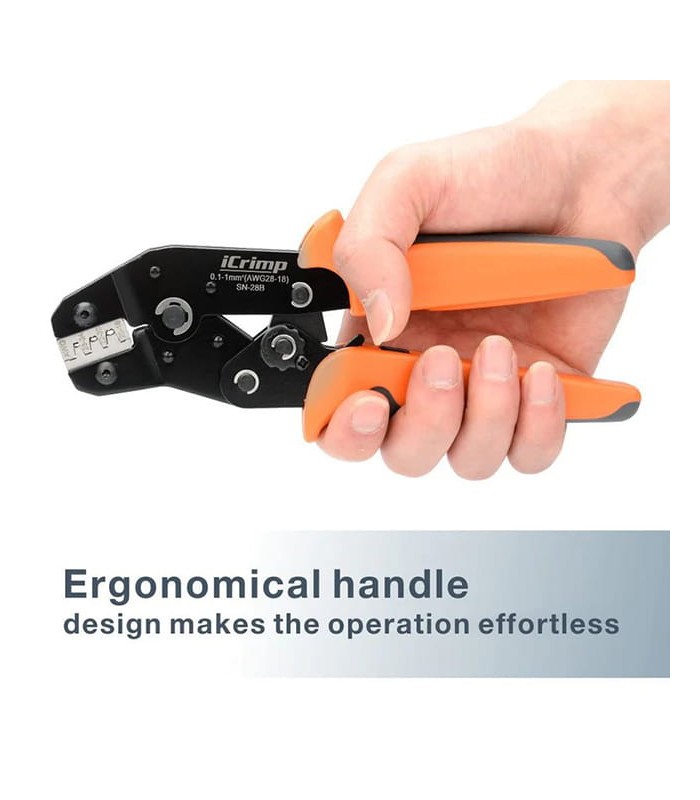

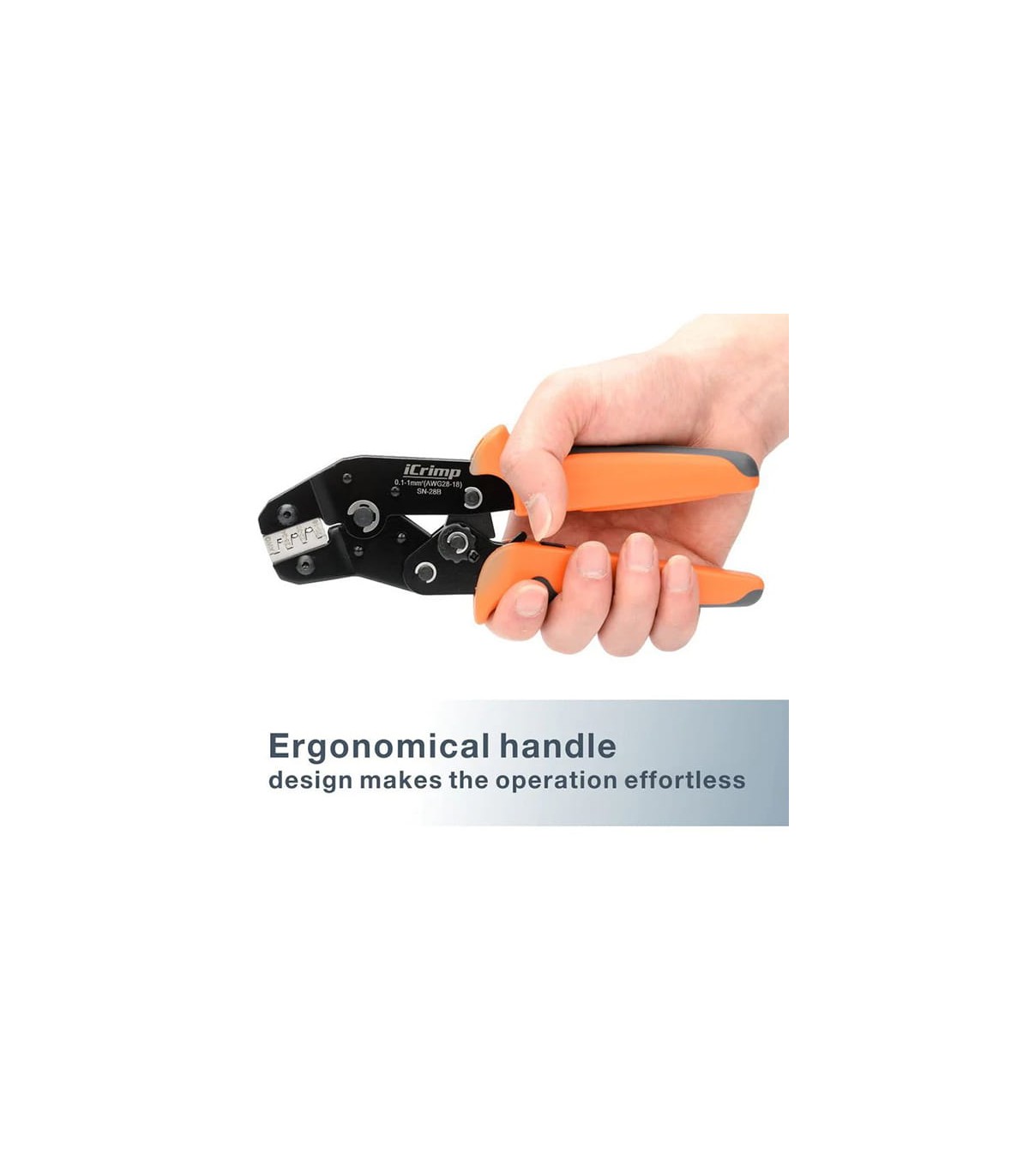

5) Ergonomic handle: non-slip material coating for comfortable use even during long sessions.

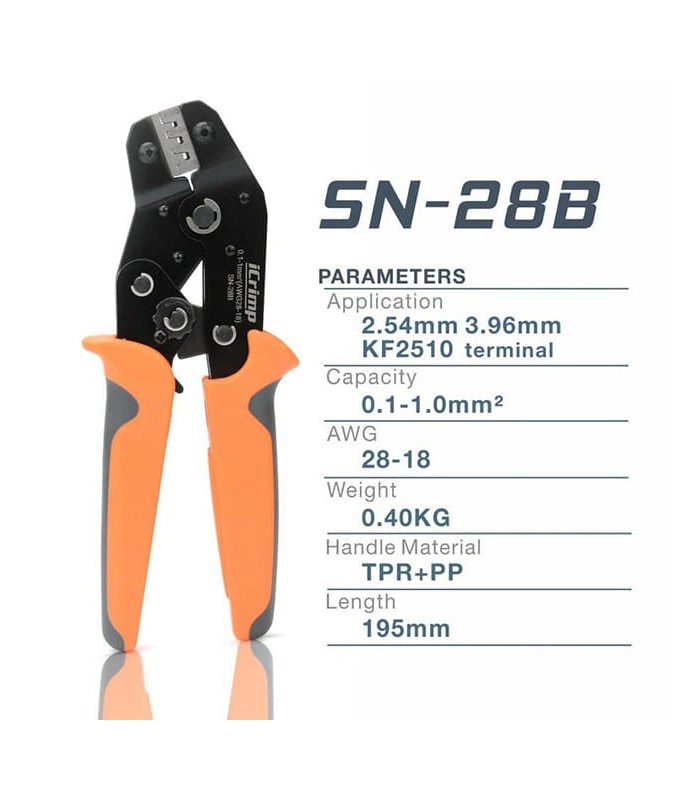

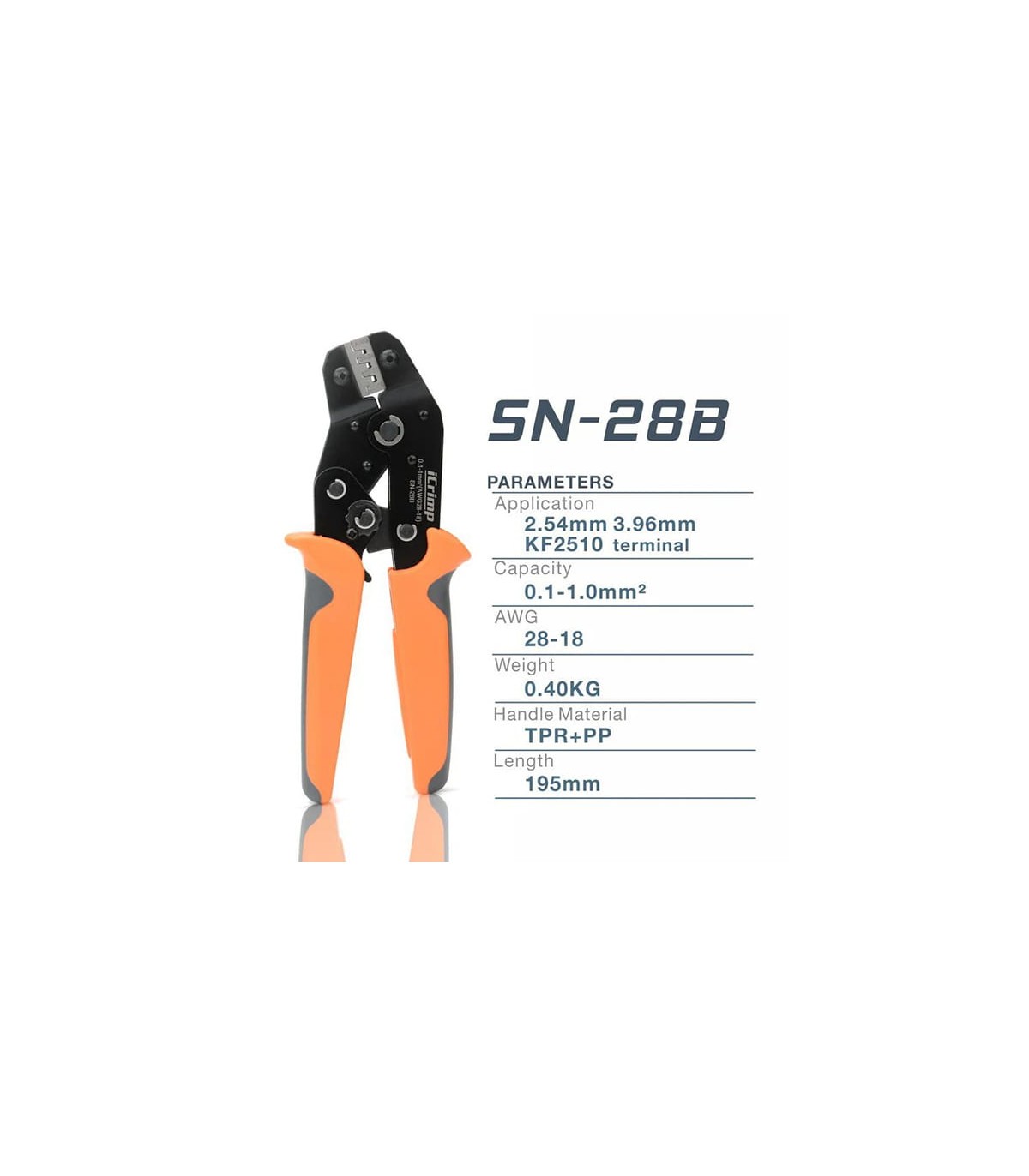

Technical Specifications

Wire range (AWG): 28 - 18 AWG

Wire range (mm²): 0.10 - 1.00 mm²

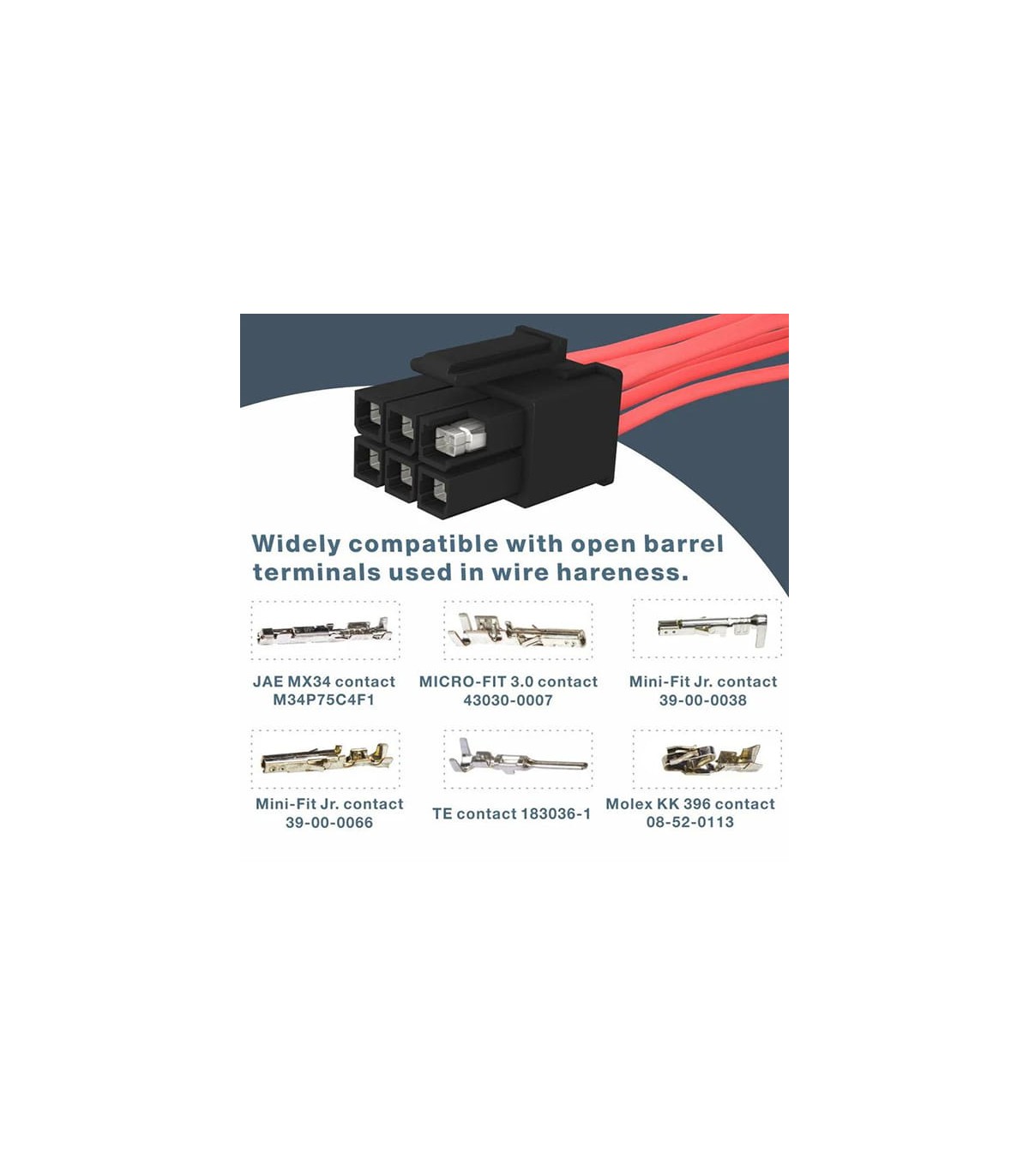

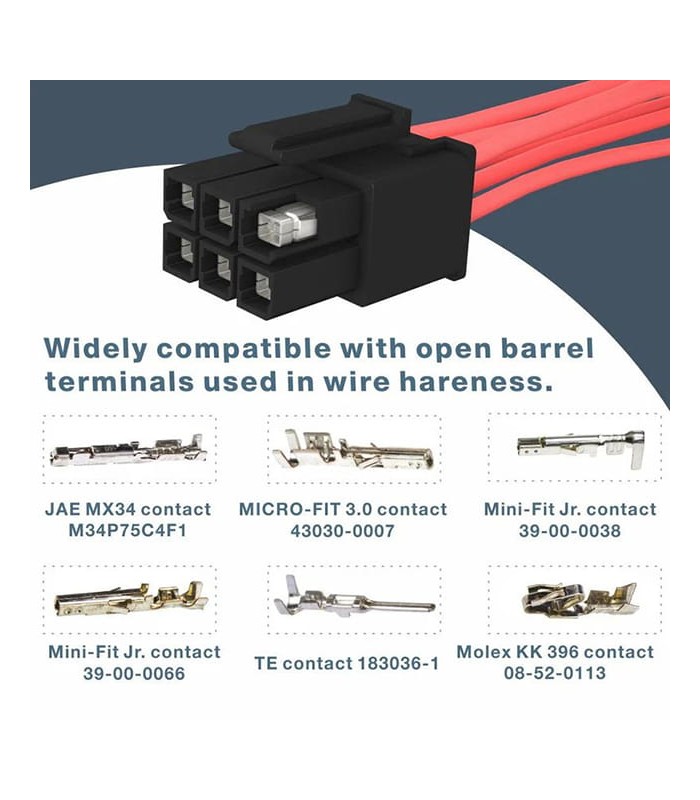

Terminal type: Dupont, JST, Molex

Terminal pitch: 2.54 or 3.96 mm

Mechanism: ratchet with safety release

Material: carbon steel

Handle: non-slip rubber

Length: 195 mm

Weight: 0.40 kg

Color: orange
