Crimping tool for square crimping of end sleeves ferrules (6 - 16 mmq)

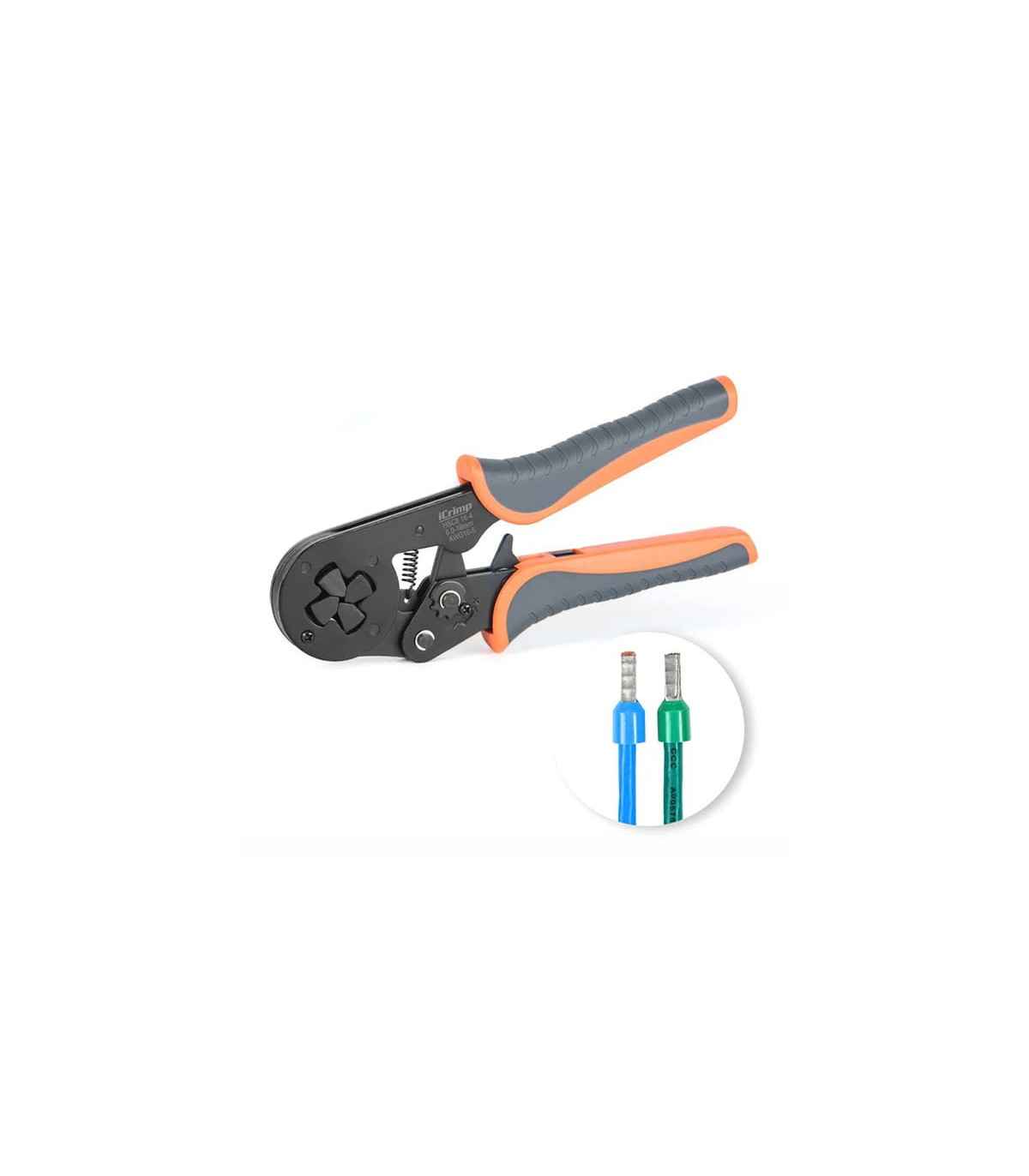

The RBHSC8 16-4 is a professional crimping tool with a square crimping profile, designed to ensure stable, safe and uniform electrical connections on end sleeves (ferrules).

This tool provides solid and durable connections thanks to its robust structure and precision ratchet mechanism that ensures even pressure on all sides of the ferrule.

Main Features

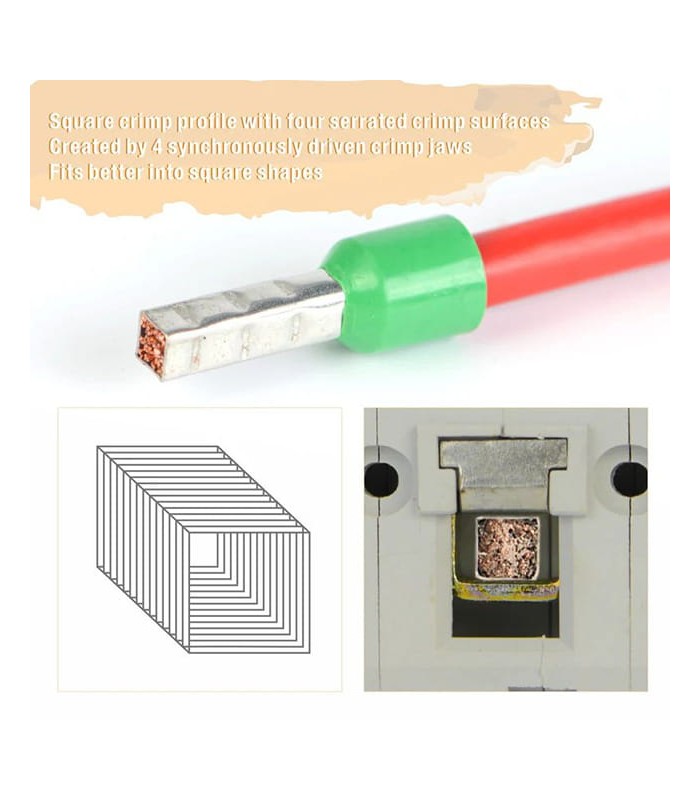

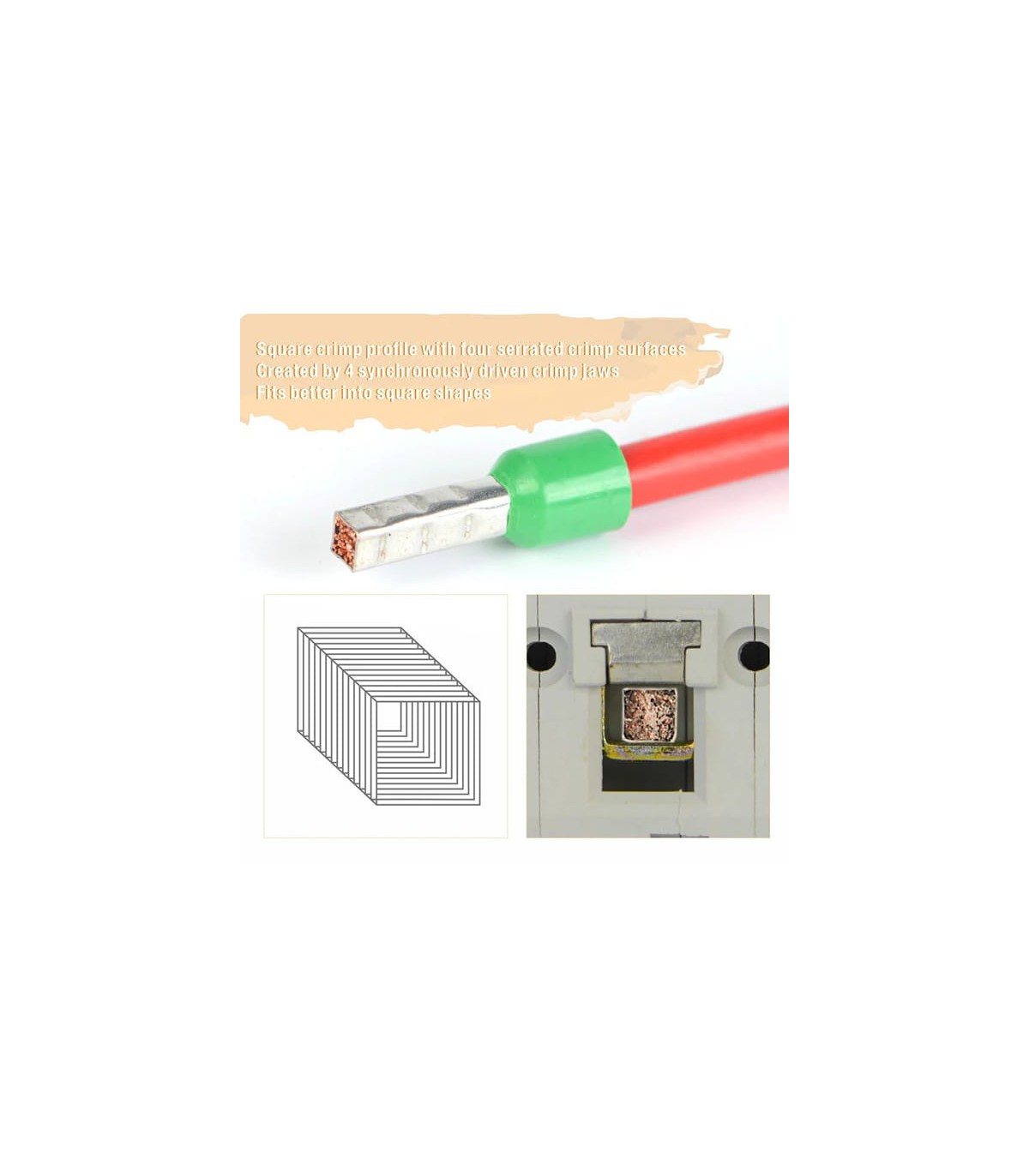

1) Square crimping: provides uniform pressure on all four sides of the ferrule.

2) Automatic adjustment: adapts to the terminal size (6 - 16 mm² / AWG 10 - 5).

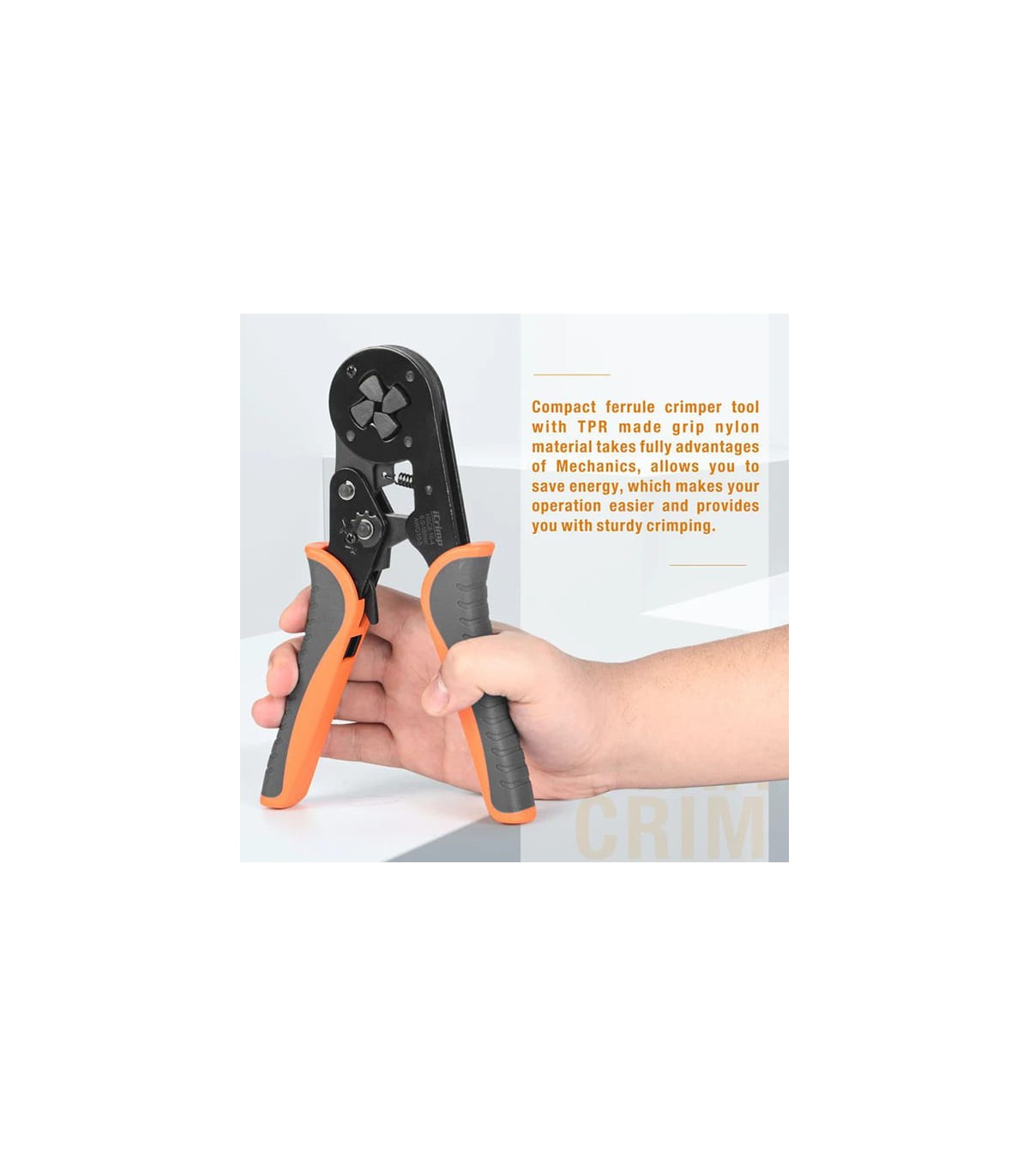

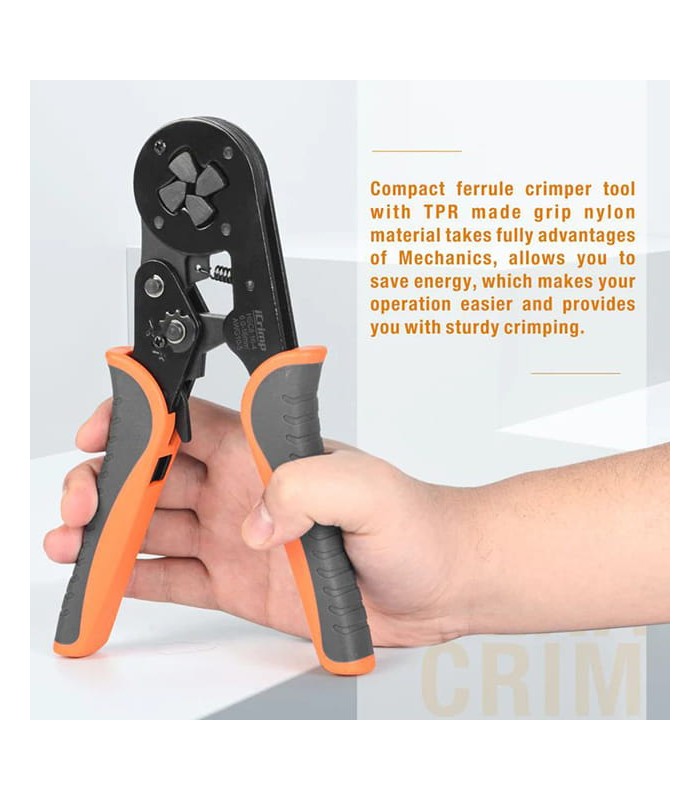

3) Robust structure: body made of steel with non-slip handles.

4) Ratchet mechanism: ensures the correct pressure for each cycle and a consistent crimp.

Recommended Use

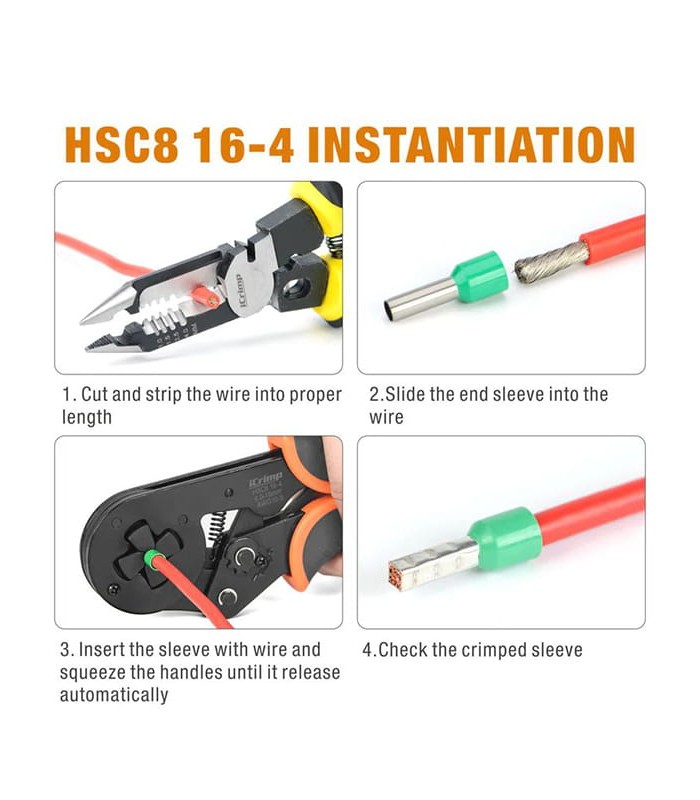

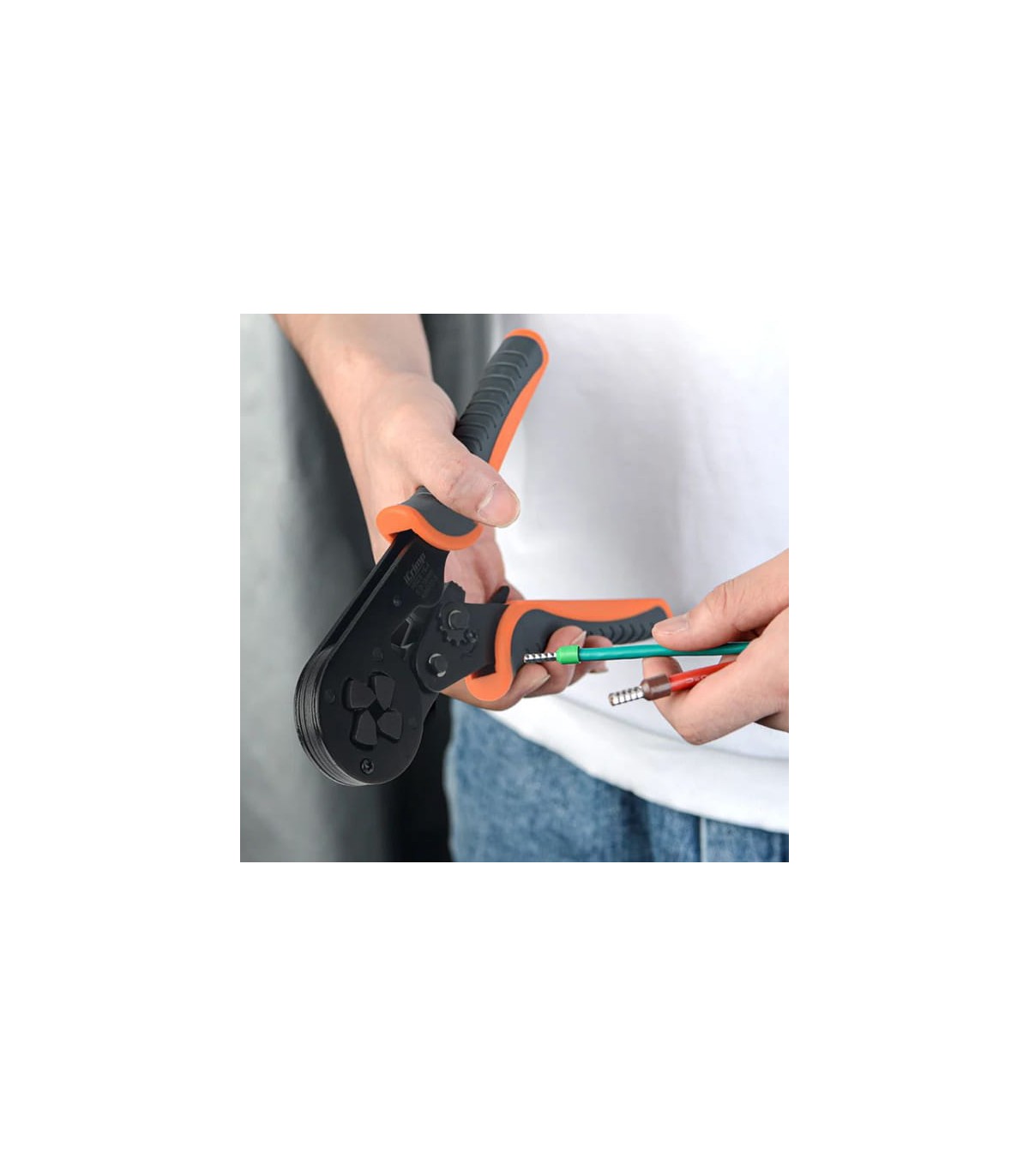

The automatic pressure adjustment allows intuitive adaptation to terminals of different sizes, eliminating the need for manual settings and making operation faster and more precise.

Suitable for panel assembly, industrial/civil systems, photovoltaic installations and maintenance work.

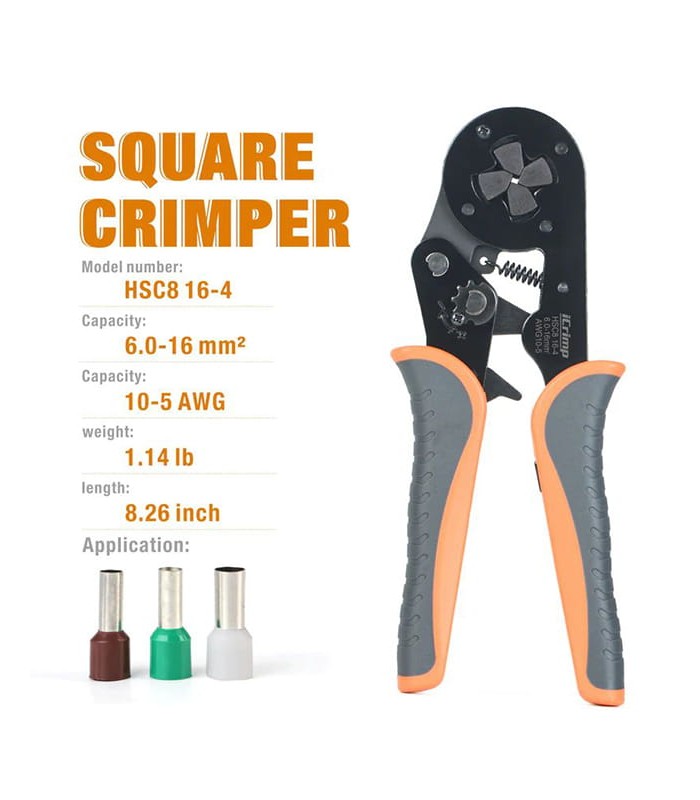

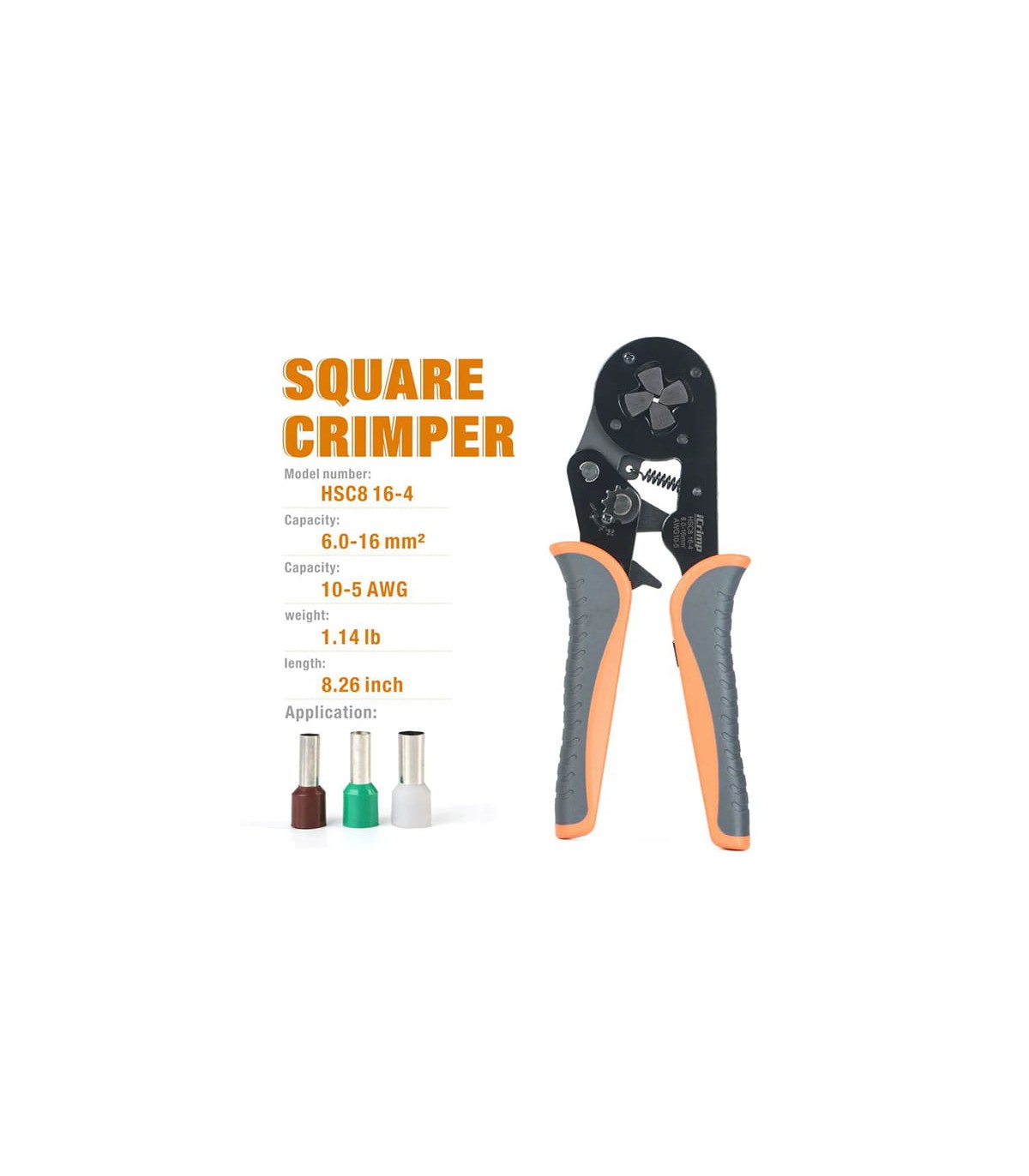

Technical Specifications

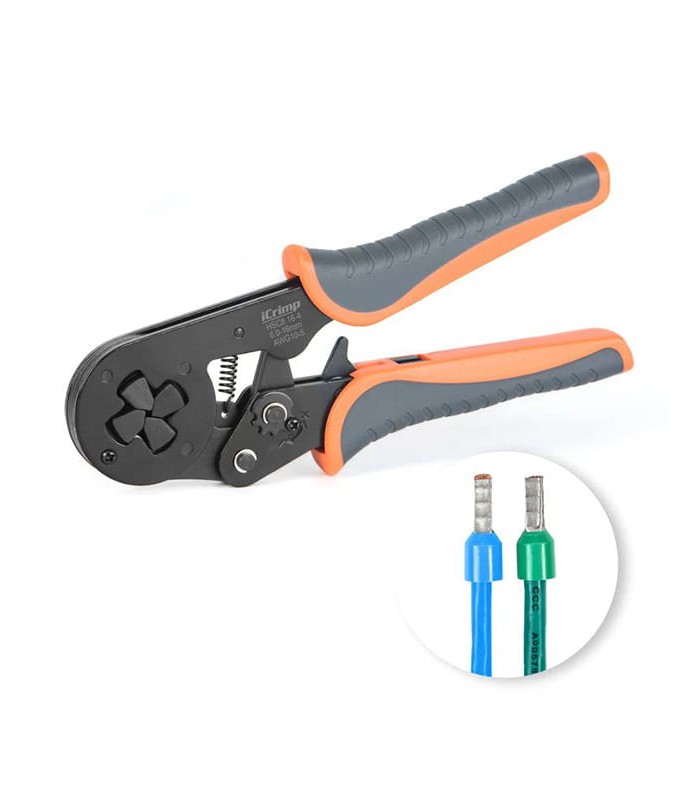

Model: RBHSC8 16-4

Crimping type: square

Wire section (mm²): 6 - 16 mm²

Wire section (AWG): 10 - 5 AWG

Applications: insulated ferrules

Length: approx. 210 mm

Weight: 0.52 kg

Handles: rubber

Material: steel
