Crimping tool for miniature and sub-miniature connectors 32-20 AWG

Crimping tool for miniature and sub-miniature connectors 32-20 AWG

ErreBi code: 56743

Read moreShow less

€250.36 (tax excl.)

€305.44 (tax incl.)

Discounts for quantities

Quantity	Unit price	You Save
2	€290.17	€30.54
3	€274.90	€91.63

'Available in 30 working days from the order.'

Condition

New

Reference:

RBHD-3220A

Brand:

ErreBi Group

Add to wishlist

Description

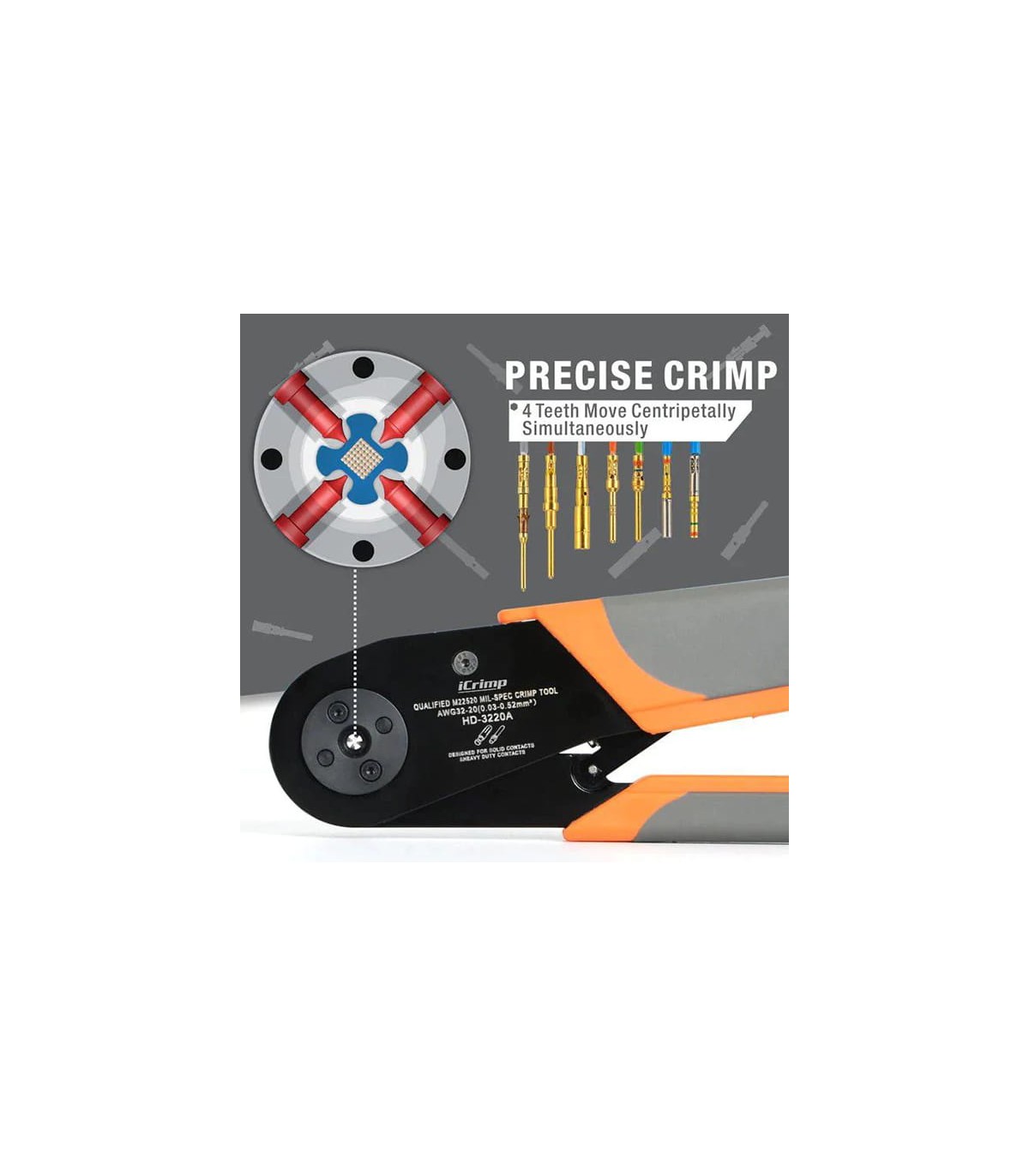

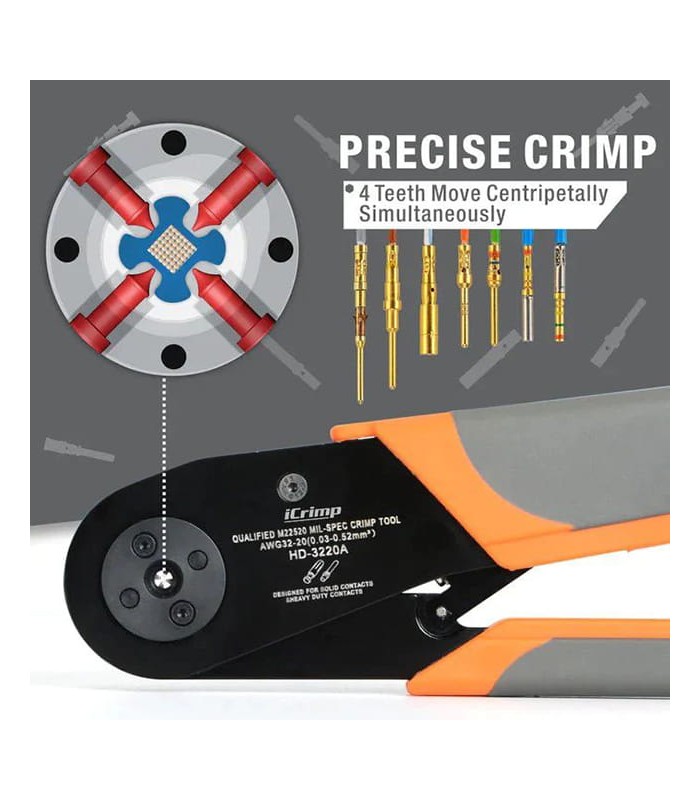

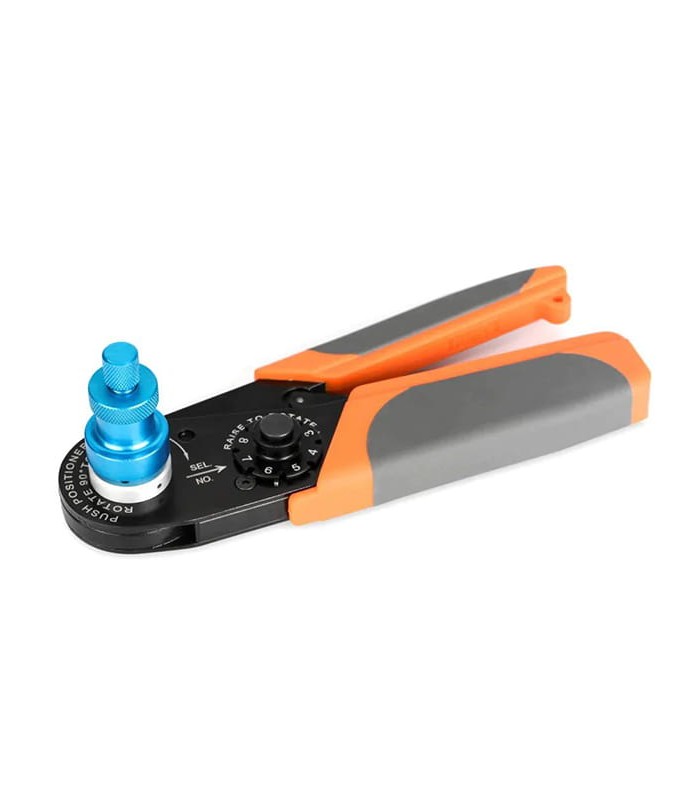

The RBHD-3220A crimping tool is a professional instrument designed for crimping miniature and sub-miniature connector contacts with cables from AWG 32 up to AWG 20 (0.03 - 0.52 mm²).

Advantages

1)High precision and repeatability, thanks to the ratchet mechanism and fine depth adjustment, each crimp is performed while minimizing the margin of error.

2)Compatibility with micro-connectors, the 32-20 AWG range makes it ideal for small pins.

3)Durability and user comfort, robust materials and ergonomic handles allow frequent use.

4)Versatility, suitable for a wide range of standardized contacts and connectors, useful both for industrial assembly and laboratory work.

Main features

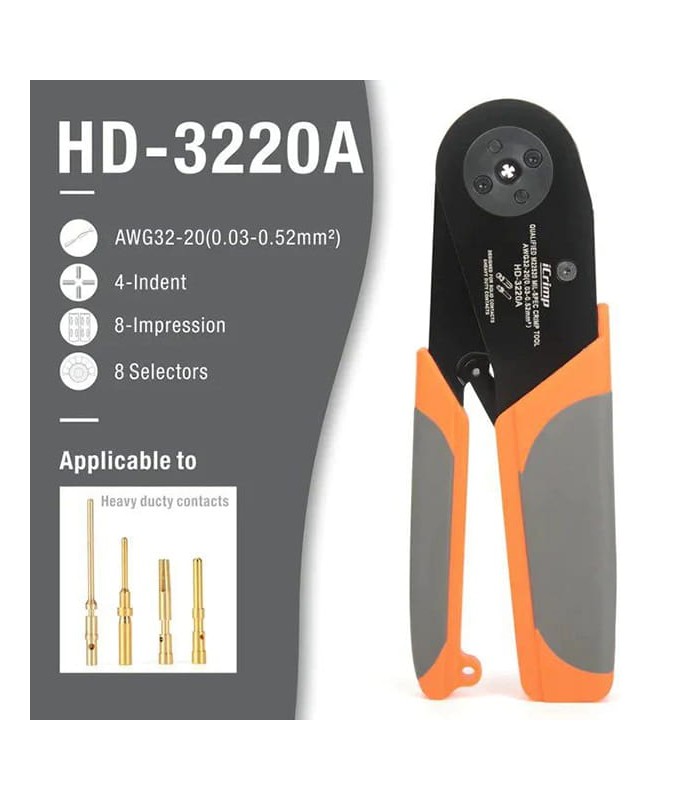

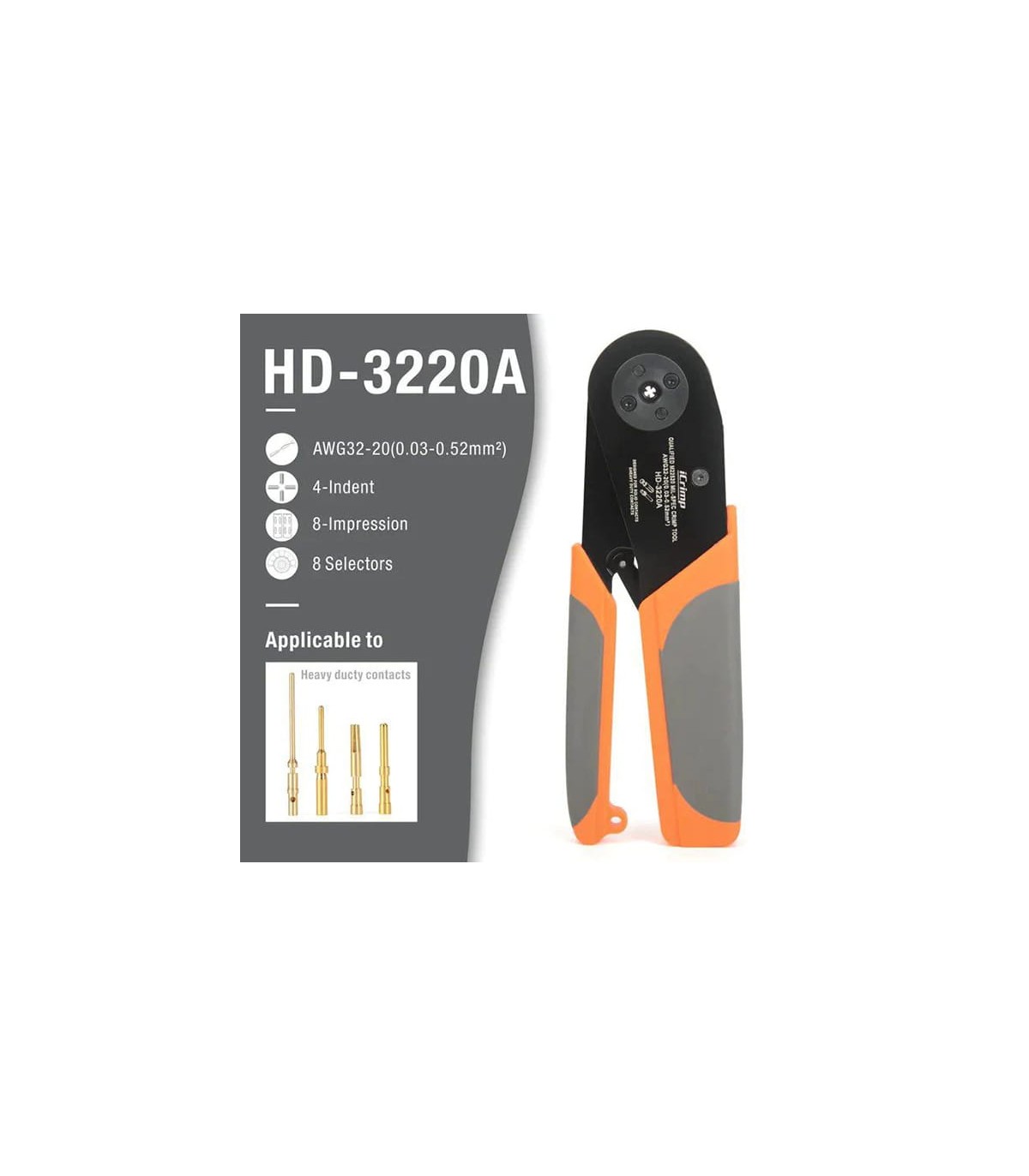

Model: RBHD-3220A

Supported cable size (AWG): 32 - 20 AWG

Supported cable size (mm²): 0.03 - 0.52 mm²

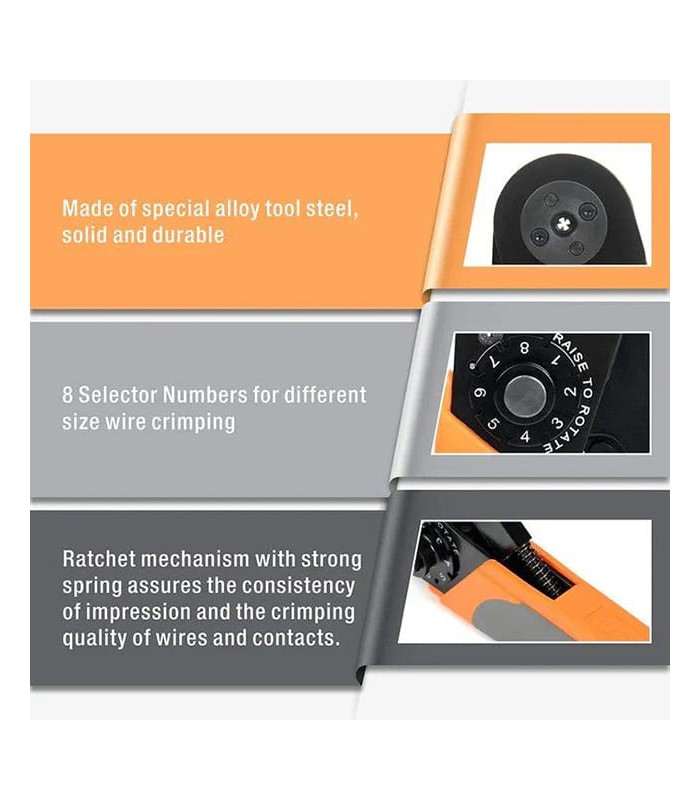

Material: high-quality carbon steel body

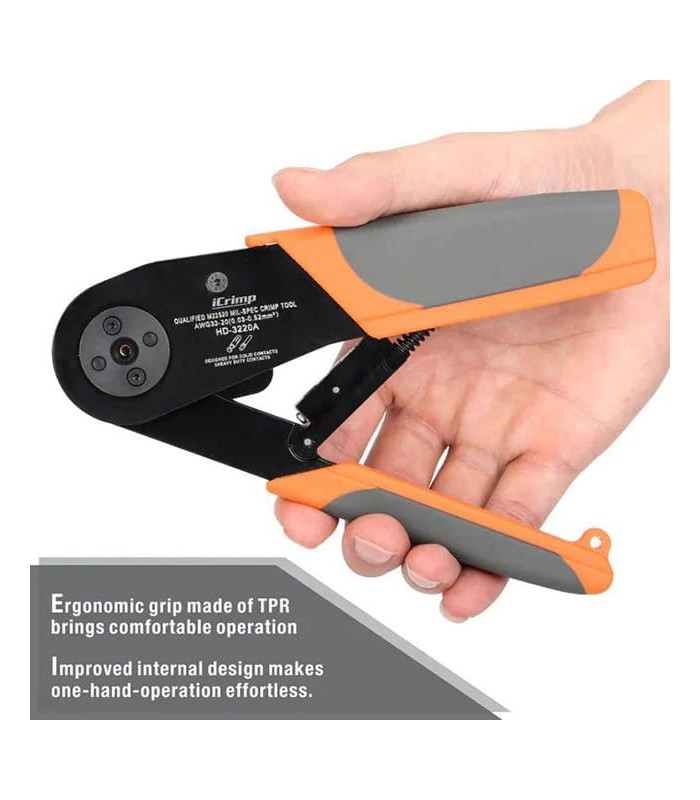

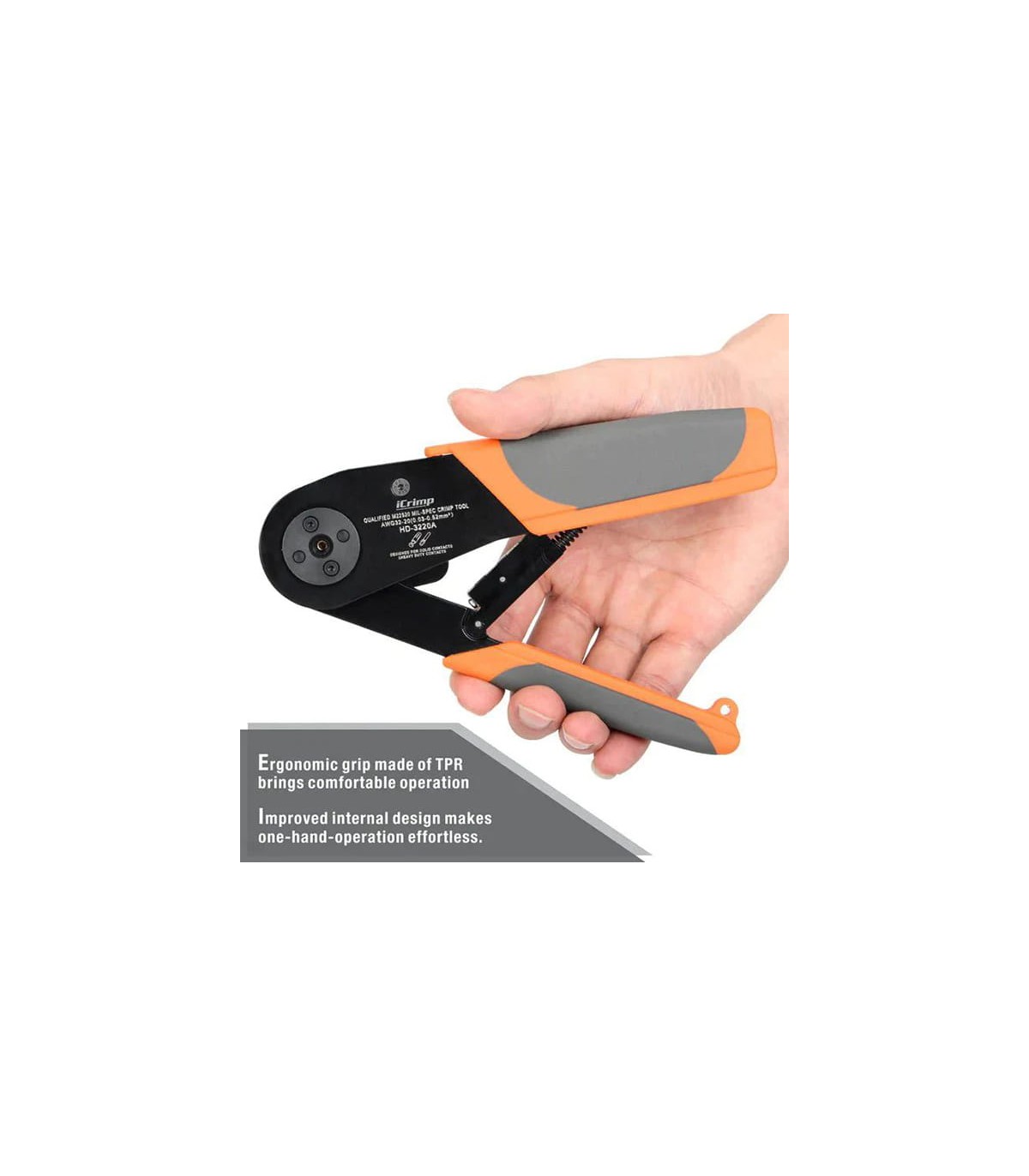

Handles: coated with ergonomic TPR (thermoplastic rubber) material, suitable for comfortable one-hand operation

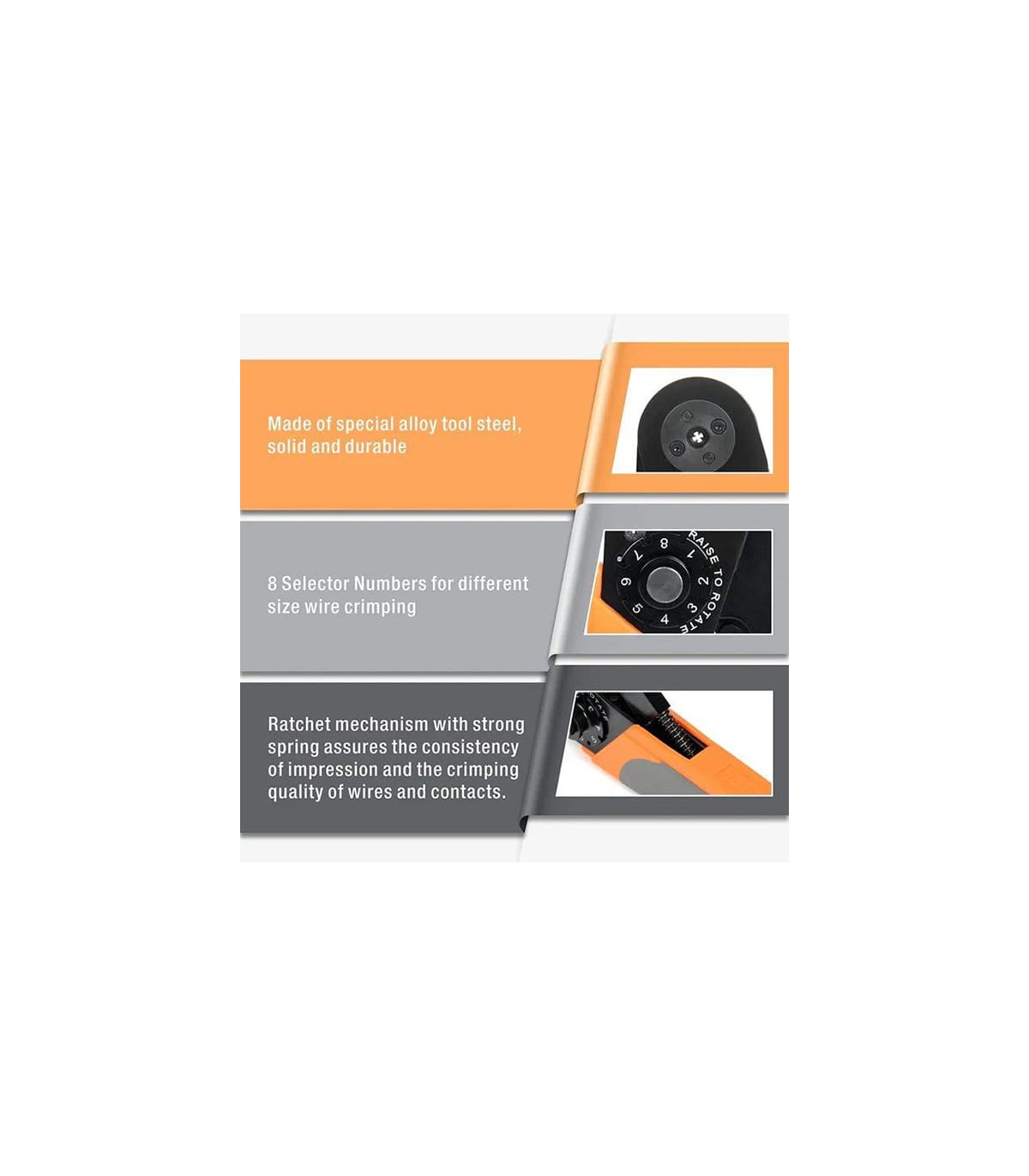

Precision and reliability: controlled-cycle ratchet mechanism

Depth adjustment: selector knob with 8 positions to set the crimping depth

Compatibility: suitable for contacts or connectors for micro-connectors, fine-pitch connectors such as Molex, JST, etc.

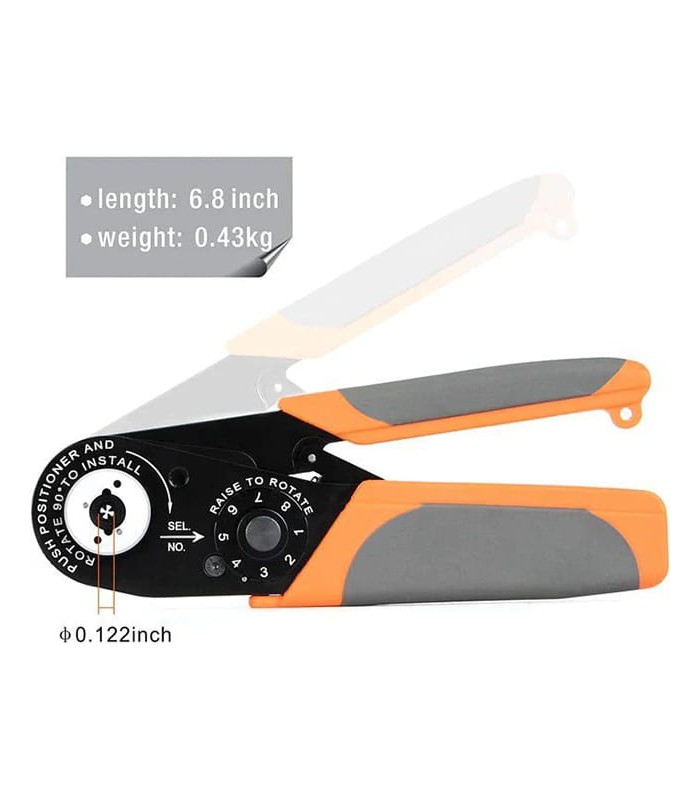

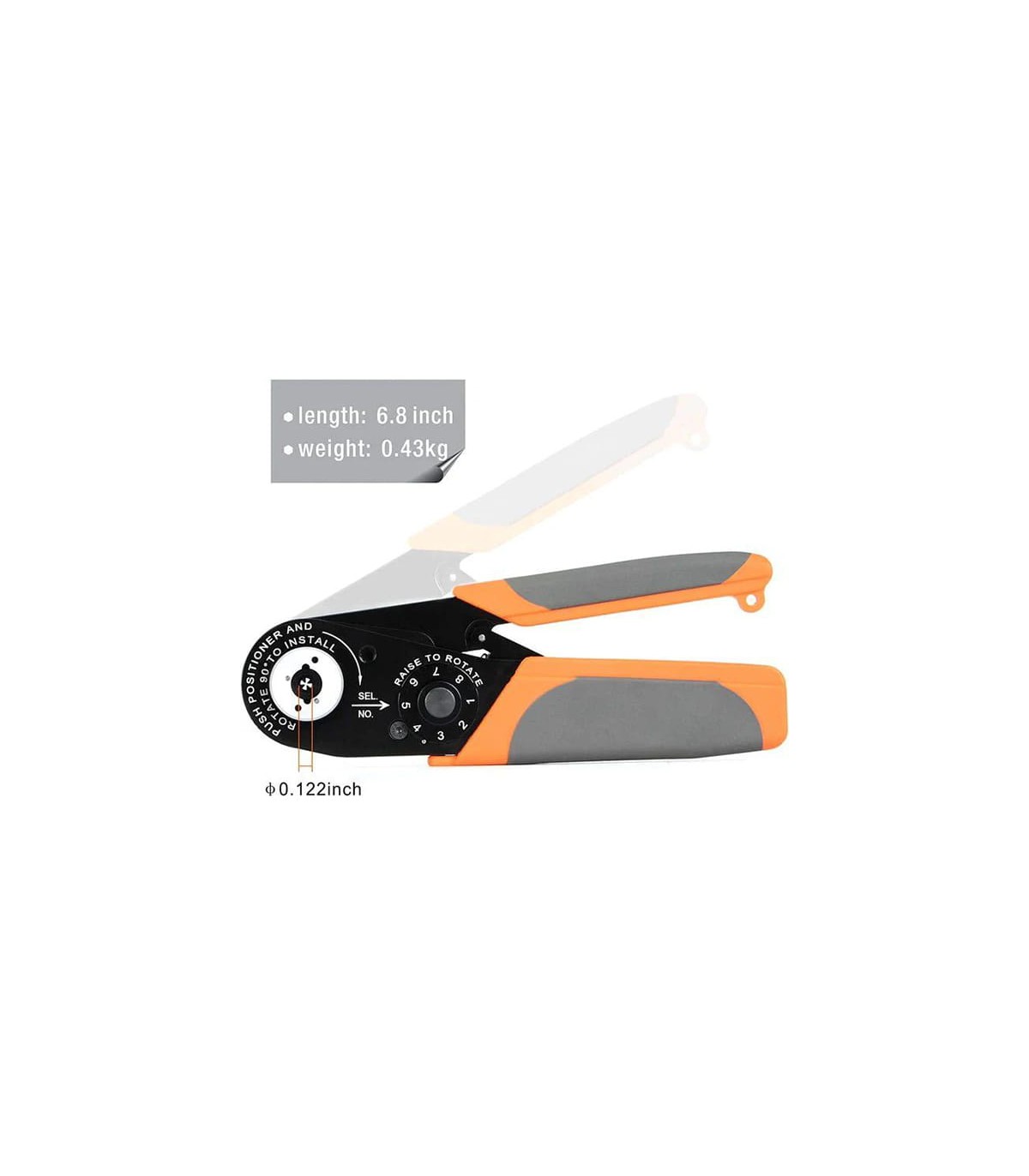

Length: 175 mm

Weight: 0.43 kg
