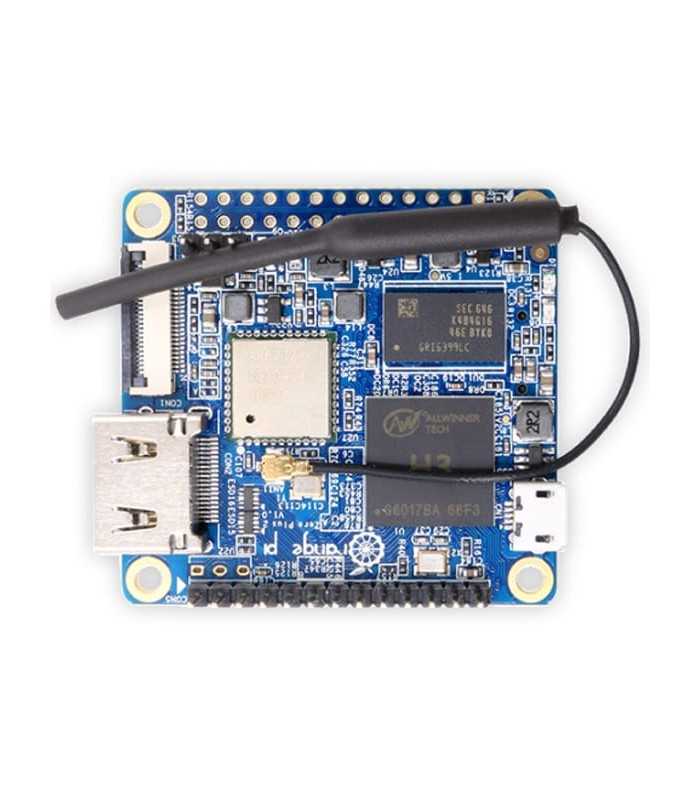

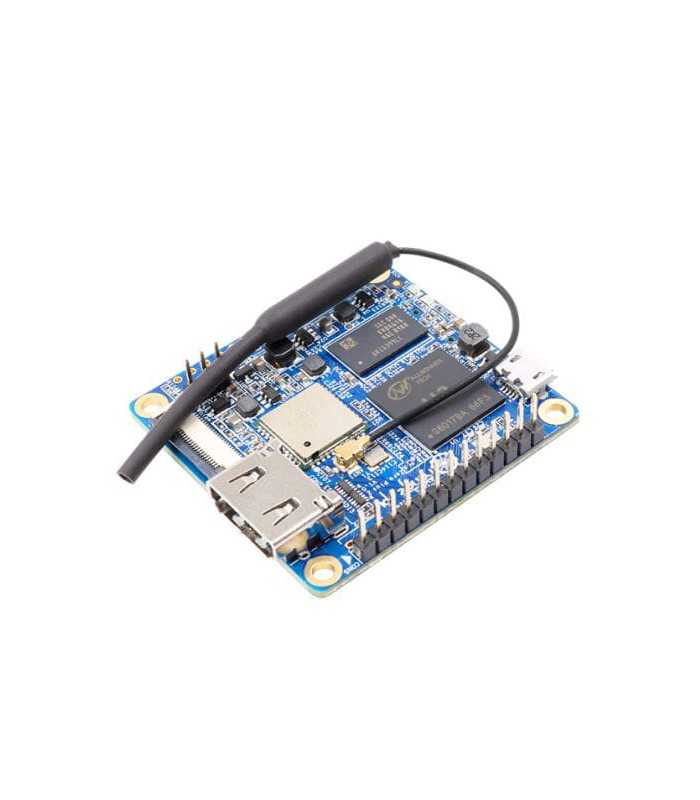

Orange Pi Zero Plus2 with 512MB RAM + 8GB memory
Errebi code: 60616
Producer: Orange
RAM: 512MB DDR3 (shared with GPU)
Memory: 8 Gb eMMC Flash
Orange Pi Zero Plus2 is an open-source single-board computer with wireless WiFi and Bluetooth 4.2. It is highly compact with a dimension of 46X48mm.
Read moreShow lessProducer: Orange
RAM: 512MB DDR3 (shared with GPU)
Memory: 8 Gb eMMC Flash
Orange Pi Zero Plus2 is an open-source single-board computer with wireless WiFi and Bluetooth 4.2. It is highly compact with a dimension of 46X48mm.
€106.49
(tax excl.)
€129.92
(tax incl.)
Condition
New
Reference:
RBOPZP2512MB-8GB
Brand:
Add to wishlist
Orange Pi Zero Plus2 uses the AllWinner H3(with Quad-core Cortex-A7)/H5(with Quad-core Cortex-A53) SoC, and has 512MB DDR3 SDRAM with 8GB eMMC flash. It integrates TF card, CSI camera port, USB 2.0, 26Pin headers, etc. lt is powered through USB OTG. It can run Android 4.4(H3 version)/Android 5.1(H5 version) , Ubuntu, Debian.
Orange Pi Zero Plus2 is for anyone who wants to start creating with technology - not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU:
- H5: Quad-core Cortex-A53
- H3:Quad-core Cortex-A7
GPU
- H5: Mali450 GPU
- H3: Mali400MP2 GPU
Memory (SDRAM): 512MB DDR3 (shared with GPU)
Onboard Storage: TF card/eMMC flash(8GB)
Onboard WIFI: AP6212, IEEE 802.11 b/g/n,BT4.2
Video Input:
- A CSI input connector Camera
- Supports 8-bit YUV422 CMOS sensor interface
- Supports CCIR656 protocol for NTSC and PAL
- Supports SM pixel camera sensor
- Supports video capture solution up to 1080p@30fps
Video Outputs:
- Supports HDMI output with HDCP
- Supports HDMI CEC
- Supports HDMI 30 function
Power Source: USB OTG can supply power
GPIO(1x3) pin: UART, Ground.
Buttons: Power Button
Low-level peripherals:
- 26 Pins Header,compatible with Raspberry Pi B+
- 13 Pins Header,with 2x USB, IR pin, AUDIO(MIC, AV)
LED: Power led & Status led
Supported OS: Android, Ubuntu, Debian, Raspbian Image

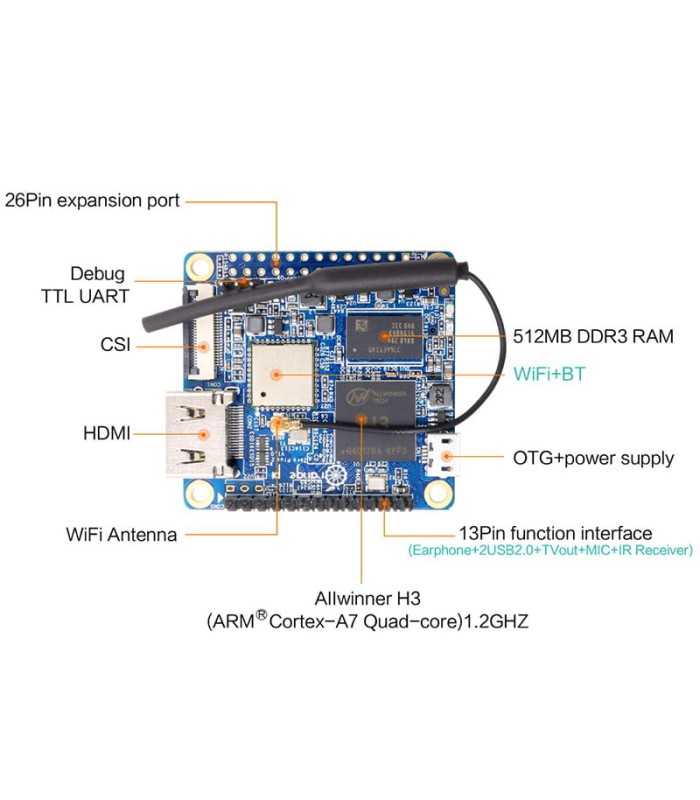

Interface definition:
Product size: 46 mm × 48mm
Weight: 36g
- H5: Quad-core Cortex-A53
- H3:Quad-core Cortex-A7
GPU
- H5: Mali450 GPU
- H3: Mali400MP2 GPU
Memory (SDRAM): 512MB DDR3 (shared with GPU)
Onboard Storage: TF card/eMMC flash(8GB)
Onboard WIFI: AP6212, IEEE 802.11 b/g/n,BT4.2
Video Input:
- A CSI input connector Camera
- Supports 8-bit YUV422 CMOS sensor interface
- Supports CCIR656 protocol for NTSC and PAL
- Supports SM pixel camera sensor
- Supports video capture solution up to 1080p@30fps
Video Outputs:
- Supports HDMI output with HDCP
- Supports HDMI CEC
- Supports HDMI 30 function
Power Source: USB OTG can supply power
GPIO(1x3) pin: UART, Ground.
Buttons: Power Button
Low-level peripherals:
- 26 Pins Header,compatible with Raspberry Pi B+
- 13 Pins Header,with 2x USB, IR pin, AUDIO(MIC, AV)
LED: Power led & Status led
Supported OS: Android, Ubuntu, Debian, Raspbian Image
Interface definition:
Product size: 46 mm × 48mm
Weight: 36g
