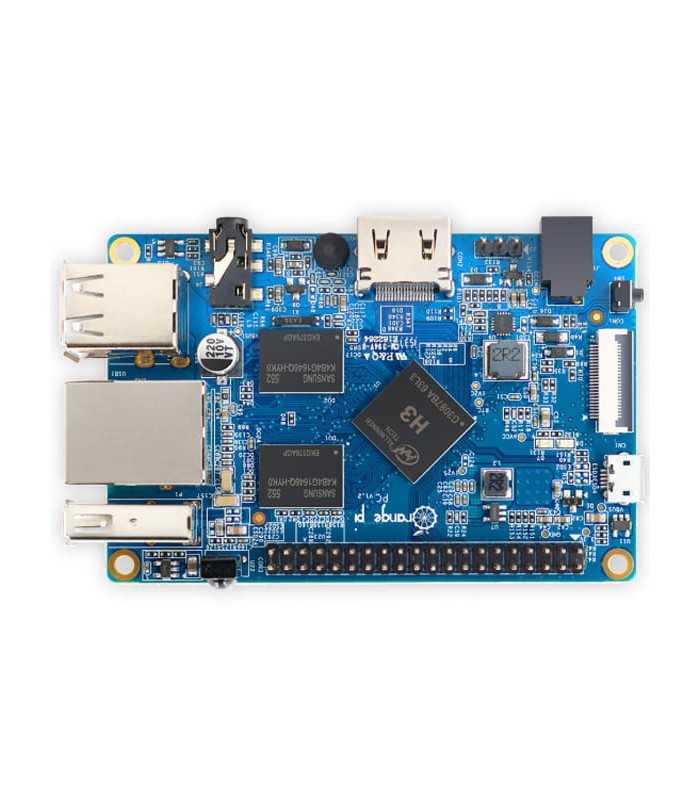

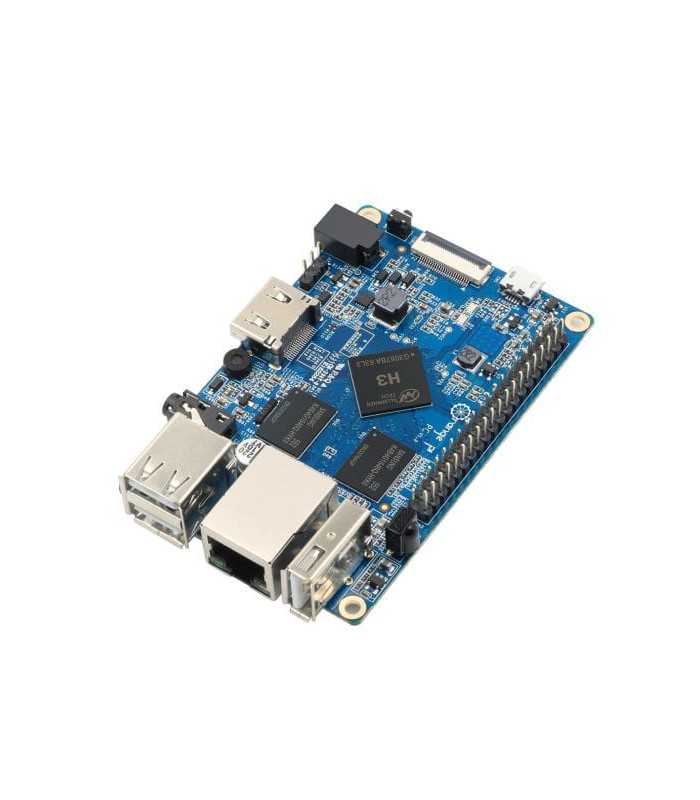

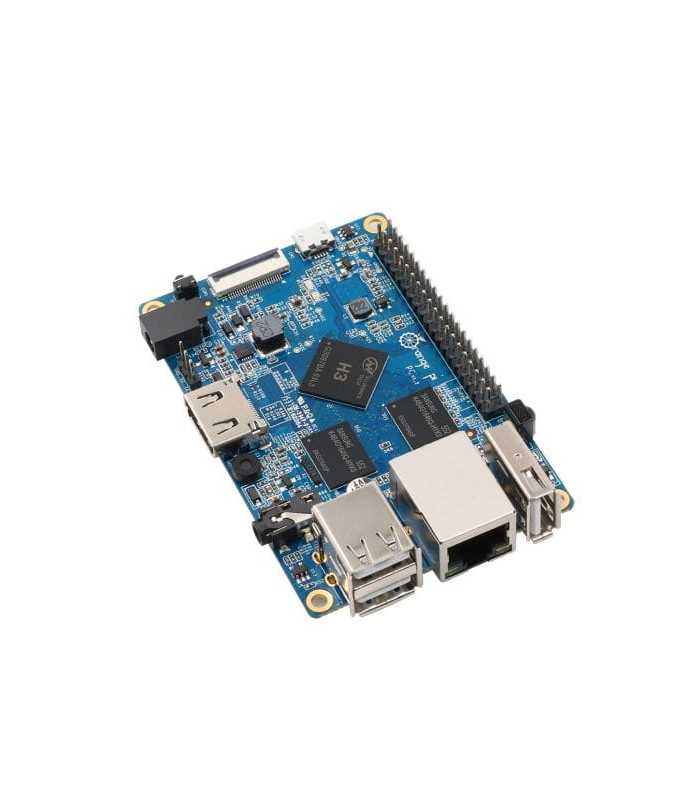

Orange Pi PC with 1 GB of RAM

Errebi code: 60613
Producer: Orange
Memory (SDRAM): 1GB DDR3 (shared with GPU)

Orange Pi PC is an open-source single-board computer .It uses the Allwinner H3 SoC with Quad-core Cortex-A7, has 1GB LPDDR3 SDRAM, and can run Android 4.4, Ubuntu, Debian Image.
Read moreShow less
€85.39 (tax excl.)
€104.18

Discounts for quantities

Quantity Unit price You Save
6 €98.83 €32.07
11 €93.49 €117.57
'Available in 30 working days from the order.'
Condition
New
Reference:
RBOPPC1GB
Brand:
Add to wishlist
Description
Orange Pi PC is an open-source single-board computer .It uses the Allwinner H3 SoC with Quad-core Cortex-A7, has 1GB LPDDR3 SDRAM, and can run Android 4.4, Ubuntu, Debian Image.

Orange Pi PC offers a range of different ports, including CSI camera port ,HDMI output, 40pin headers, 100M Ethernet port,USB2.0,etc. It is powered through DC.

Orange Pi PC is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

Hardware specification


CPU:
- H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
- Mali400MP2 GPU @600MHz
- Supports OpenGL ES 2.0
Memory (SDRAM): 1GB DDR3 (shared with GPU)
Onboard Storage: TF card (Max. 32GB)
Onboard Network: 10/100M Ethernet RJ45
Video Input
- A CSI input connector Camera:
- Supports 8-bit YUV422 CMOS sensor interface
- Supports CCIR656 protocol for NTSC and PAL
- Supports SM pixel camera sensor
- Supports video capture solution up to 1080p@30fps
Audio Input
- MIC
Video Outputs
- Supports HDMI output with HDCP
- Supports HDMI CEC
- Supports HDMI 30 function
- Integrated CVBS
- Supports simultaneous output of HDMI and CVBS
Audio Output
- 3.5 mm Jack and HDMI
Power Source: DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports: Three USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button (SW4)
Low-level peripherals: 40 Pins Header
GPIO(1x3) pin: UART, Ground.
LED: Power led & Status led
Key: IR input, Power
Supported OS: Android Ubuntu, Debian Image

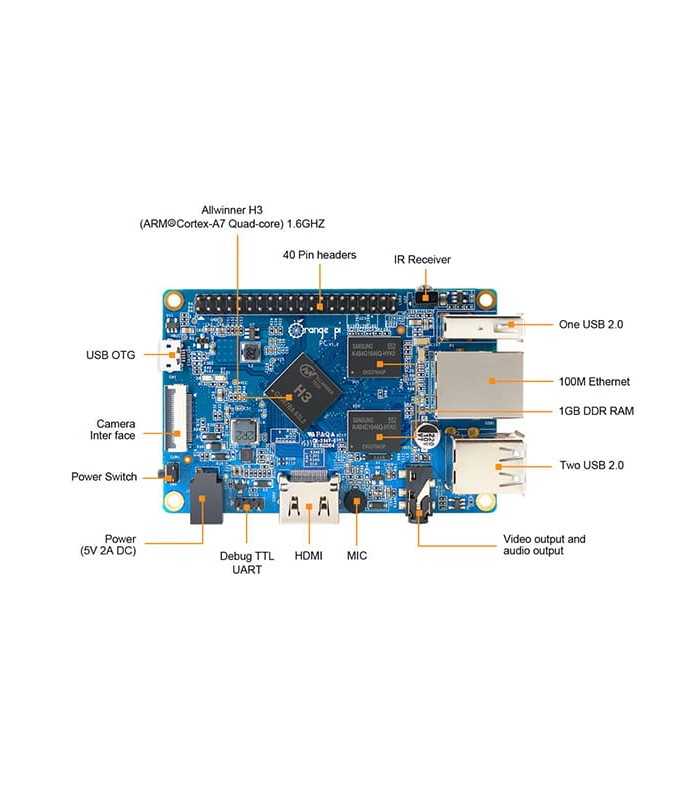

Interface definition:
Product size: 85 mm × 55mm
Weight: 38g







Read moreShow less
Product Details
RBOPPC1GB

Data sheet

Minimum order quantity
1
Unit Type
piece
