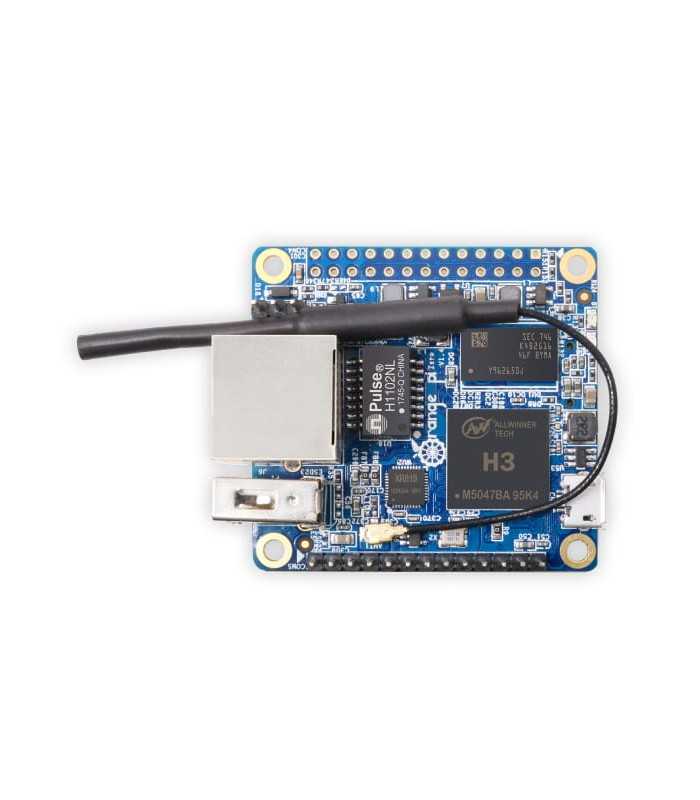

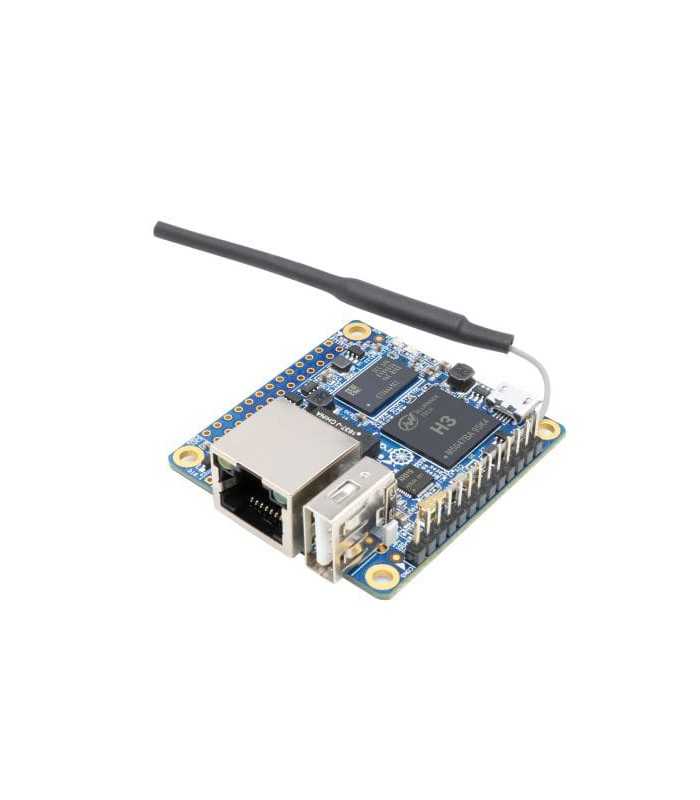

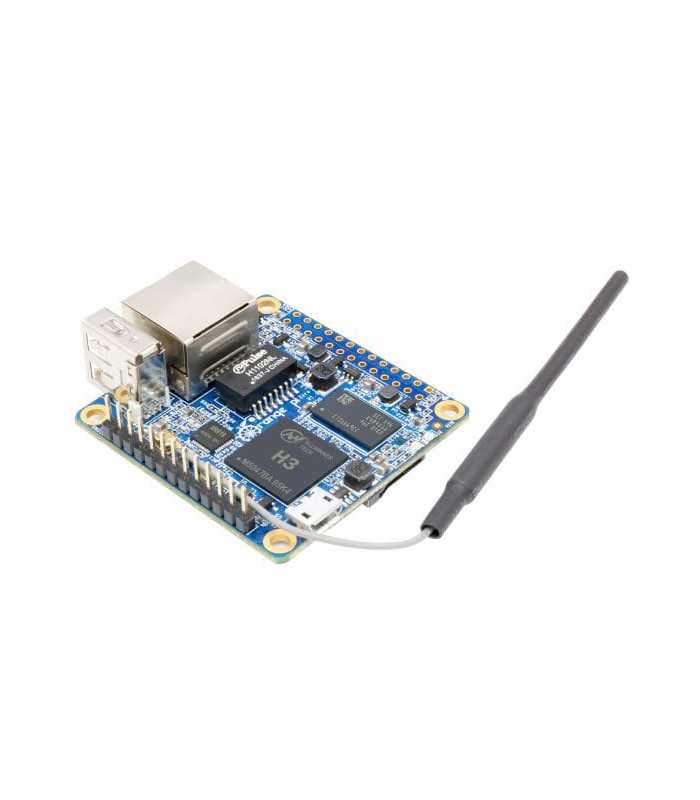

Orange Pi Zero with 512 MB of memory
Errebi code: 60612
Producer: Orange
Memory (SDRAM): 512MB DDR3 (shared with GPU)
Orange Pi Zero is an open-source single-board computer. It is highly compact with a dimension of 48X46mm. It can run Android 4.4, Ubuntu, Debian.
Read moreShow lessProducer: Orange
Memory (SDRAM): 512MB DDR3 (shared with GPU)
Orange Pi Zero is an open-source single-board computer. It is highly compact with a dimension of 48X46mm. It can run Android 4.4, Ubuntu, Debian.
€66.03
(tax excl.)
€80.56
(tax incl.)
Condition
New
Reference:
RBOPZ512MB
Brand:
Add to wishlist
Orange Pi Zero uses the AllWinner H2 SoC, and has 512MB DDR3 SDRAM, It integrates TF card, 100 Ethernet network, USB 2.0, 26Pin headers, etc. lt is powered through USB OTG.
Orange Pi Zero is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU:
- H2 Quad-core Cortex-A7 H.265/HEVC 1080P.
- H3 Quad-core Cortex-A7 H.265/HEVC 1080P
GPU
- Mali400MP2 GPU @600MHz
- Supports OpenGL ES 2.0
Memory (SDRAM): 256MB DDR3 SDRAM(Share with GPU)(256MB version is Standard version)
Onboard Storage
- TF card (Max. 32GB)/ 2MB Spi Flash
Onboard Network:
- 10/100M Ethernet RJ45 POE is default off.
Onboard WiFi: XR819, IEEE 802.11 b/g/n
Audio Input: MIC(via 13 pins external board )
Video Outputs: AV OUT(via 13 pins external board)
Power Source: USB OTG can supply power
USB 2.0 Ports: Only One USB 2.0 HOST, one USB 2.0 OTG
Low-level peripherals:
- 26 Pins Header,
- 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)
LED: Power led & Status led
Supported OS: Android, Lubuntu, Debian

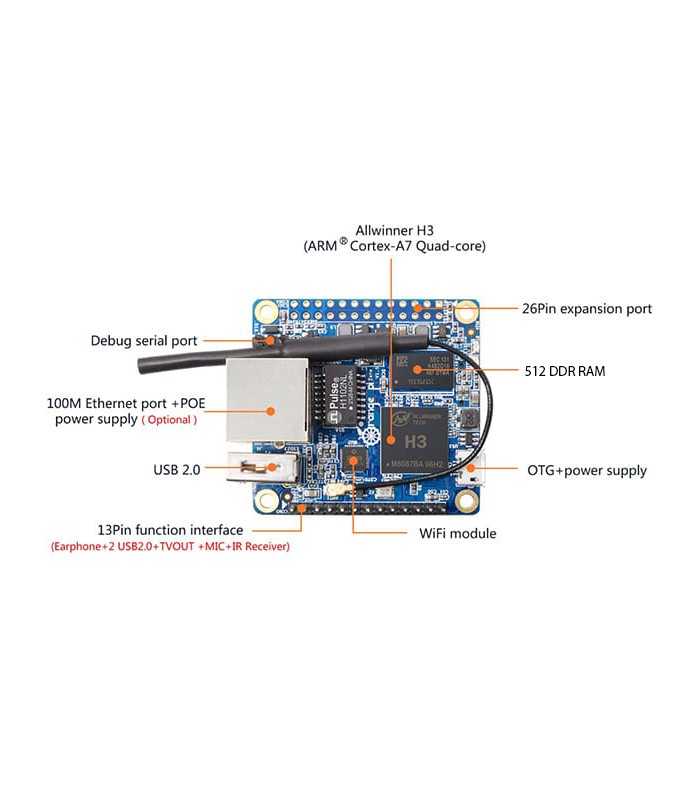

Interface definition:
Product size: 48 mm × 46mm
Weight: 26g
- H2 Quad-core Cortex-A7 H.265/HEVC 1080P.
- H3 Quad-core Cortex-A7 H.265/HEVC 1080P
GPU
- Mali400MP2 GPU @600MHz
- Supports OpenGL ES 2.0
Memory (SDRAM): 256MB DDR3 SDRAM(Share with GPU)(256MB version is Standard version)
Onboard Storage
- TF card (Max. 32GB)/ 2MB Spi Flash
Onboard Network:
- 10/100M Ethernet RJ45 POE is default off.
Onboard WiFi: XR819, IEEE 802.11 b/g/n
Audio Input: MIC(via 13 pins external board )
Video Outputs: AV OUT(via 13 pins external board)
Power Source: USB OTG can supply power
USB 2.0 Ports: Only One USB 2.0 HOST, one USB 2.0 OTG
Low-level peripherals:
- 26 Pins Header,
- 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)
LED: Power led & Status led
Supported OS: Android, Lubuntu, Debian
Interface definition:
Product size: 48 mm × 46mm
Weight: 26g
