Orange Pi Plus 2E with 2 GB Ram + 16 GB Memory
Errebi code: 60615
Producer: Orange
RAM: 2GB DDR3 (shared with GPU)
Memory: 16 Gb eMMC Flash
Orange Pi Plus 2E is an open-source single-board computer with Gigabit Ethernet port . It is highly compact with a dimension of 60X93mm. It can run Android 4.4 , Ubuntu, Debian Image.
Read moreShow lessProducer: Orange
RAM: 2GB DDR3 (shared with GPU)
Memory: 16 Gb eMMC Flash
Orange Pi Plus 2E is an open-source single-board computer with Gigabit Ethernet port . It is highly compact with a dimension of 60X93mm. It can run Android 4.4 , Ubuntu, Debian Image.
€199.95
(tax excl.)
€243.94
(tax incl.)
Condition
New
Reference:
RBOPP2E2-16GB
Brand:
Add to wishlist
Orange Pi Plus 2E uses the AllWinner H3 SoC with Quad-core Cortex-A7, and has 2GB DDR3 SDRAM with 16GB EMMC Flash. It integrates Gigabit Ethernet port, HDMI output, CSI camera port,USB 2.0 port, TF card slot, 40pin headers,etc. It is powered through DC.
Orange Pi Plus 2E is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU:
- H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
- Mali400MP2 GPU @600MHz
- Supports OpenGL ES 2.0
Memory (SDRAM): 2GB DDR3 (shared with GPU)
Onboard Storage
- TF card (Max. 32GB)
- 16GB eMMC Flash
Onboard Network: 10/100/1000M Ethernet RJ45
Onboard WiFi
- Realtek RTL8189ETV, IEEE 802.11 b/g/n
Video Input
- A CSI input connector camera:
- Supports 8-bit YUV422 CMOS sensor interface
- Supports CCIR656 protocol for NTSC and PAL
- Supports SM pixel camera sensor
- Supports video capture solution up to 1080p@30fps
Audio Input
- MIC
Video Outputs
- Supports HDMI output with HDCP
- Supports HDMI CEC
- Supports HDMI 30 function
- Integrated CVBS
- Supports simultaneous output of HDMI and CVBS
Audio Output
- 3.5 mm Jack and HDMI
Power Source: DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports: Three USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2)
Low-level peripherals: 40 Pins Header
GPIO(1x3) pin: UART, Ground.
LED: Power led & Status led
Key: IR input, Power
Supported OS: Android Lubuntu, Debian Image

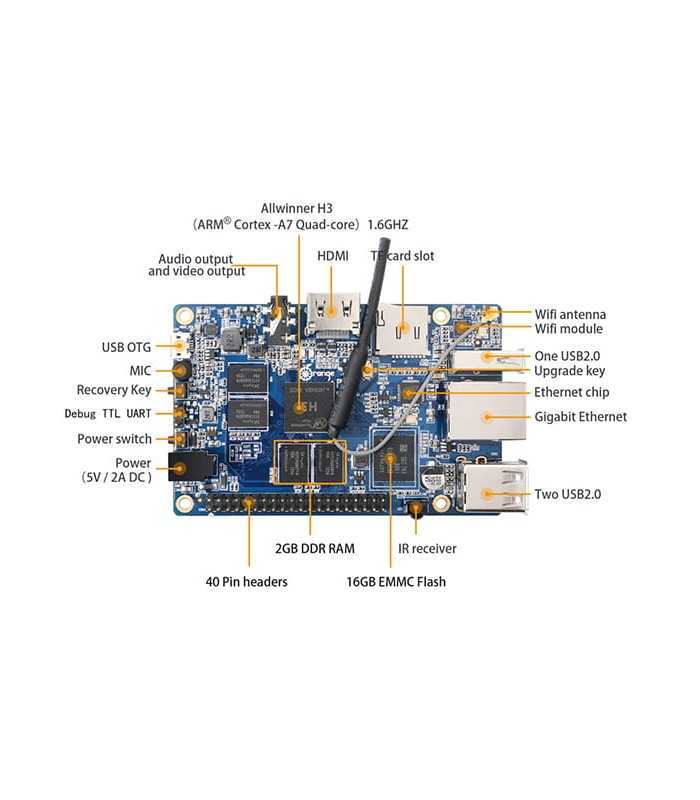

Interface definition:
Product size: 60 mm × 93mm
Weight: 83g
- H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
- Mali400MP2 GPU @600MHz
- Supports OpenGL ES 2.0
Memory (SDRAM): 2GB DDR3 (shared with GPU)
Onboard Storage
- TF card (Max. 32GB)
- 16GB eMMC Flash
Onboard Network: 10/100/1000M Ethernet RJ45
Onboard WiFi
- Realtek RTL8189ETV, IEEE 802.11 b/g/n
Video Input
- A CSI input connector camera:
- Supports 8-bit YUV422 CMOS sensor interface
- Supports CCIR656 protocol for NTSC and PAL
- Supports SM pixel camera sensor
- Supports video capture solution up to 1080p@30fps
Audio Input
- MIC
Video Outputs
- Supports HDMI output with HDCP
- Supports HDMI CEC
- Supports HDMI 30 function
- Integrated CVBS
- Supports simultaneous output of HDMI and CVBS
Audio Output
- 3.5 mm Jack and HDMI
Power Source: DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports: Three USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2)
Low-level peripherals: 40 Pins Header
GPIO(1x3) pin: UART, Ground.
LED: Power led & Status led
Key: IR input, Power
Supported OS: Android Lubuntu, Debian Image
Interface definition:
Product size: 60 mm × 93mm
Weight: 83g
