Orange PI 3 with 2gb ram and 8gb storage
Errebi code: 60617
Producer: Orange
Memory (RAM): 2gb LPDDR4
Storage: 8gb EMMC
Orange Pi 3 is an open-source single-board computer with wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 90X64mm.
Read moreShow lessProducer: Orange
Memory (RAM): 2gb LPDDR4
Storage: 8gb EMMC
Orange Pi 3 is an open-source single-board computer with wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 90X64mm.
€187.58
(tax excl.)
€228.85
(tax incl.)
Condition
New
Reference:
RBOP32GB-8GB
Brand:
Add to wishlist

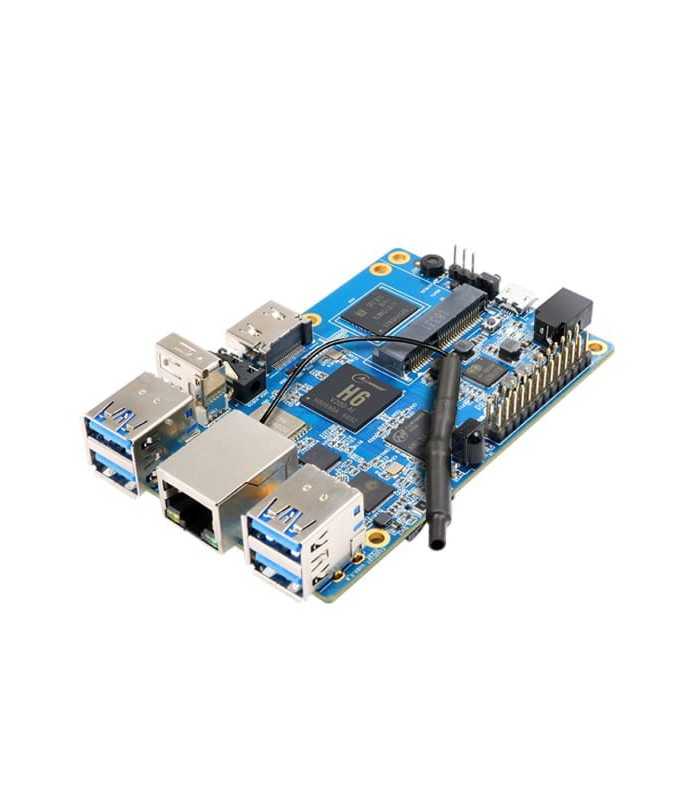

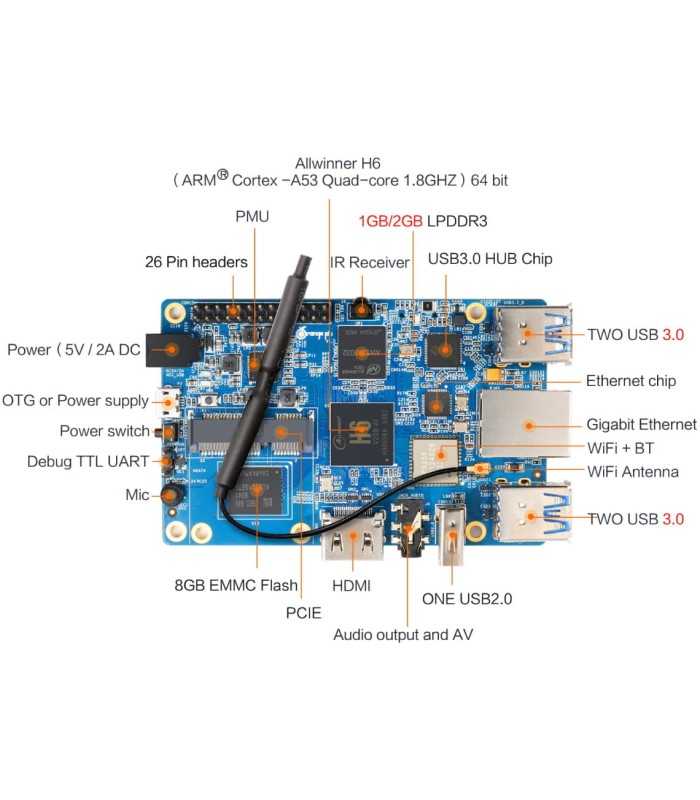

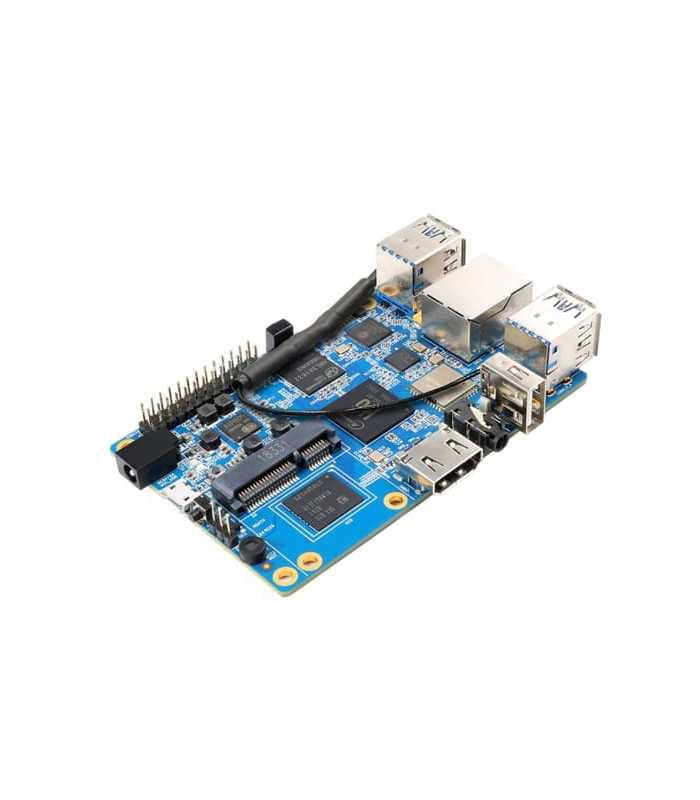

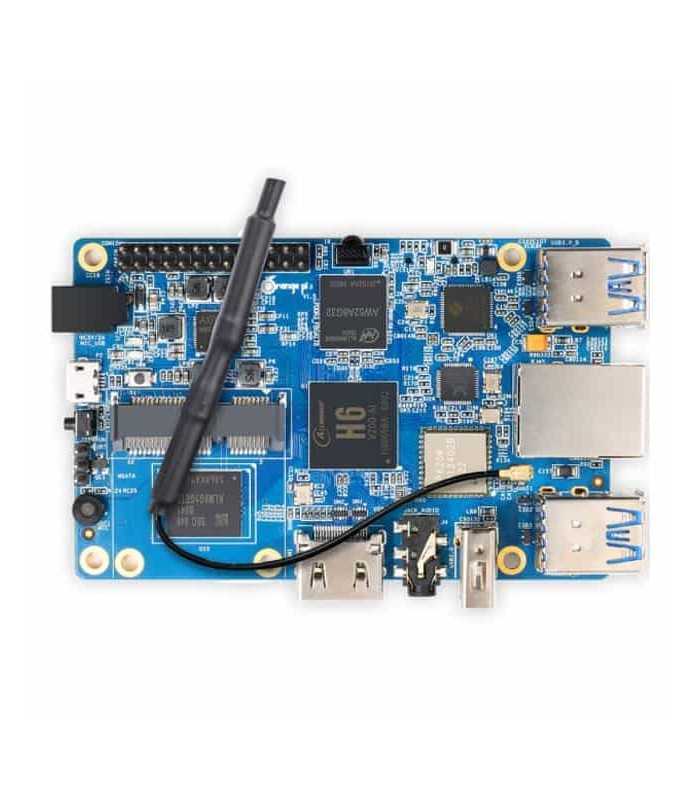

Orange Pi 3 uses the Allwinner H6 SoC, and has 2GB LPDDR3 (shared with GPU) , an optional 8GB eMMC flash. It can run Android 7.0,Ubuntu,Debian image. Orange Pi 3 offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,4*USB 3.0, etc. It is powered through DC and USB OTG. It is a good choice for applications that need strong networking perfomance.
Orange Pi 3 is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU: H6 Quad-core 64-bit 1.8GHZ ARM Cortex™-A53
GPU:
- High-performance multi-core GPU Mali T720
- OpenGL ES3.1/3.0/2.0/1.1
- Microsoft DirectX 11 FL9_3
- ASTC(Adaptive Scalable Texture Compression)
- Floating point operation greater than 70 GFLOPS
Memory: 2GB LPDDR3(shared with GPU)
Onboard Storage: 8GB EMMC Flash
WiFi+BT: AP6256, IEEE 802.11 a/b/g/n/ac, BT5.0
Onboard Network: 10/100M/1000M (RTL8211), ethernet RJ45
Audio Input: MIC
Audio Output: HDMI 2.0a and 3.5 mm AV Jack
Video Output: HDMI 2.0a and CVBS
Video Decoding:
- H265/HEVC Main/Main10 [email protected] High-tier ;4K@60fps, up to 6Kx4K@30fps
- H264/AVC BP/MP/[email protected], MVC, 4K@30fps
- VP9,Profile 0/2, 4K@30fps
- AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps
PCIE:
- Supports RC mode
- Supports x1 Gen2(5.0Gbps) lane
- Complies with PCI Express Base 2.0 Specification
Power Source: DC input,MicroUSB (OTG)
PMU: AXP805
USB 2.0 Ports: 1*USB 2.0 Host, 1*USB OTG 2.0
USB 3.0 Ports: 4*USB 3.0 Host
Low-level peripherals: 26 Pin
GPIO(1x3) pin: UART, Ground
IR: YES
Key: Power(SW4)
Supported OS: Android7.0, Ubuntu, Debian
GPU:
- High-performance multi-core GPU Mali T720
- OpenGL ES3.1/3.0/2.0/1.1
- Microsoft DirectX 11 FL9_3
- ASTC(Adaptive Scalable Texture Compression)
- Floating point operation greater than 70 GFLOPS
Memory: 2GB LPDDR3(shared with GPU)
Onboard Storage: 8GB EMMC Flash
WiFi+BT: AP6256, IEEE 802.11 a/b/g/n/ac, BT5.0
Onboard Network: 10/100M/1000M (RTL8211), ethernet RJ45
Audio Input: MIC
Audio Output: HDMI 2.0a and 3.5 mm AV Jack
Video Output: HDMI 2.0a and CVBS
Video Decoding:
- H265/HEVC Main/Main10 [email protected] High-tier ;4K@60fps, up to 6Kx4K@30fps
- H264/AVC BP/MP/[email protected], MVC, 4K@30fps
- VP9,Profile 0/2, 4K@30fps
- AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps
PCIE:
- Supports RC mode
- Supports x1 Gen2(5.0Gbps) lane
- Complies with PCI Express Base 2.0 Specification
Power Source: DC input,MicroUSB (OTG)
PMU: AXP805
USB 2.0 Ports: 1*USB 2.0 Host, 1*USB OTG 2.0
USB 3.0 Ports: 4*USB 3.0 Host
Low-level peripherals: 26 Pin
GPIO(1x3) pin: UART, Ground
IR: YES
Key: Power(SW4)
Supported OS: Android7.0, Ubuntu, Debian

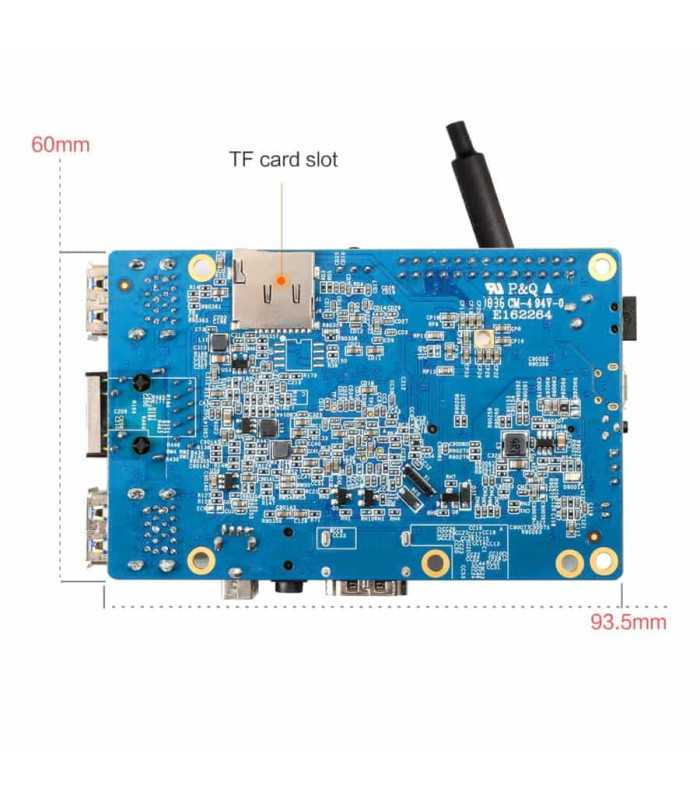

Appearance specification introduction
Dimension: 56mm*85mm
Weight: 45g
Weight: 45g
