SOC: Rockchip RK3399 (4GB)
CPU:
- Based on the large and small size of big.LITTLE core architecture:Dual-core Cortex-A72 (large core)+ Quad-core Cortex-A53(small core)
- 6-core ARMR64-bit processor ,main frequency speeds up to 1.8 GHz(4GB)
GPU
- High-performance Multi-core Mali-T860 GPU
- Supports OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11
- Support for AFBC
PMU: RK808 PMU
Memory: 4GB LPDDR4
Onboard Storage:
- 16GB EMMC Flash
- MicroSD (TF) Card Slot
Onboard Ethernet: Support 10/100M/1000M Ethernet (YT8531C)
Onboard WiFi+BT:
- CDW.20U5622-00
- Support IEEE 802.11 a/b/g/n/ac, 2T2R
- Support BT 5.0
Video:
- HDMI 2.0,Supports 4K@60fps output
- Supports Dual MIPl-DSI (4 lines Per Channel)
Audio:
- Output: 3.5mm Jack and HDMI2.0a
- lnput: MIC
Camera: 2*MIPI-CSl Camera Connector (MIPI_RXO?MIPI_TX1/RX1)
USB: 2*USB2.0, 1*USB3.0, 1*USB3.0 Type-C
Debug UART: 3 Pin

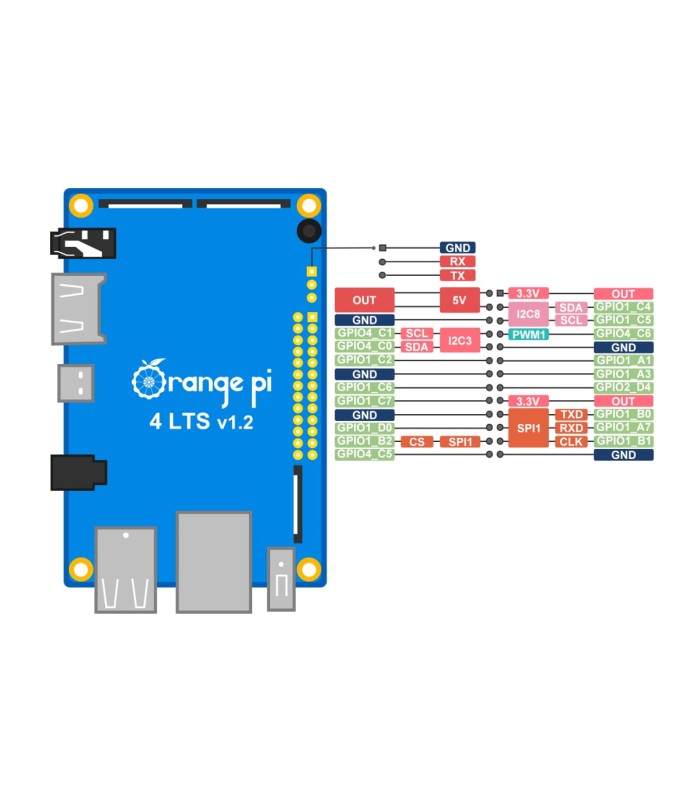

GPIO: 26 Pin
PCIe: Support Mini PCIe port
Key: Upgrade Key & Reset Key
Power Supply: DC 5V/3A or 5V/4A, TYPE-C 5V/4A
LED: Power led & Status led
Supported OS: Android, Ubuntu, Debian
Dimension: 56mm x 91mm
