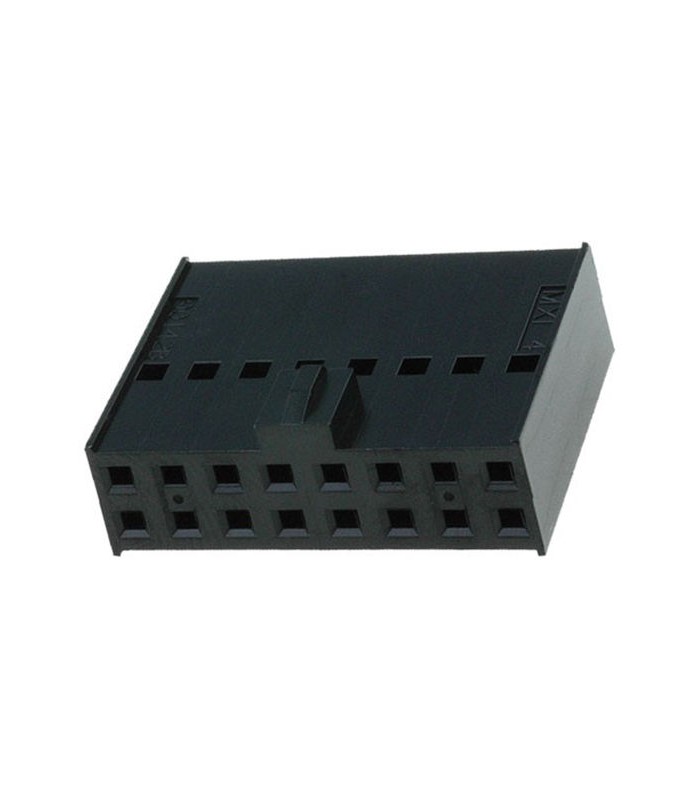

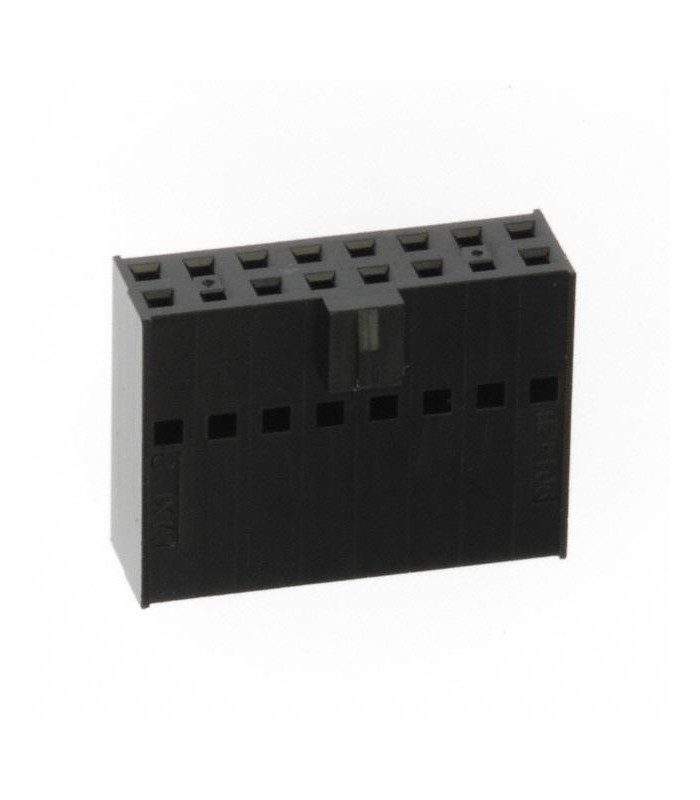

Connector C-Grid III Female 8x2 Way
Errebi code: 30516
Producer code: Cross Reference 90142-0016
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow lessProducer code: Cross Reference 90142-0016
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
€0.52
(tax excl.)
€0.63
(tax incl.)
Condition
New
Reference:
RBCTCGIIIPF8X2V
Brand:
Add to wishlist
Series: 90142
Application: Signal, Wire-to-Board
Product Name: C-Grid III
Breakaway: No
Circuits (maximum): 16
Color - Resin: Black
Flammability: 94V-0
Gender: Receptacle
Glow-Wire Capable: No
Keying to Mating Part: None
Lock to Mating Part: Yes
Material - Resin: PPO
Number of Rows: 2
Panel Mount: No
Pitch - Mating Interface: 2.54mm
Pitch - Termination Interface: 2.54mm
Polarized to Mating Part: Yes
Temperature Range - Operating: -55°C to +105°C
Current - Maximum per Contact: 3.0A
Read moreShow less
Application: Signal, Wire-to-Board
Product Name: C-Grid III
Breakaway: No
Circuits (maximum): 16
Color - Resin: Black
Flammability: 94V-0
Gender: Receptacle
Glow-Wire Capable: No
Keying to Mating Part: None
Lock to Mating Part: Yes
Material - Resin: PPO
Number of Rows: 2
Panel Mount: No
Pitch - Mating Interface: 2.54mm
Pitch - Termination Interface: 2.54mm
Polarized to Mating Part: Yes
Temperature Range - Operating: -55°C to +105°C
Current - Maximum per Contact: 3.0A
RBCTCGIIIPF8X2V
Data sheet
- Product type
- Connector body
- Serie
- C-Grid III - 90142
- Amperage
- 3A
- Material
- PPO (polyphenylene oxide)
- Color
- Black
- Operating temperature
- -55°C a +105°C
- Dimensions
- 15,24x20,32x7,72 (L x W x H)
- Flammability
- 94V-0
- Mounting
- For cable
- Kind
- Female
- Number of poles
- 16
- Number of rows
- 2
- Pitch
- 2.54 mm
- Orientation
- 180°
- Minimum order quantity
- 3
- Unit Type
- pieces
Specific References
- UPC
- 800753658172
