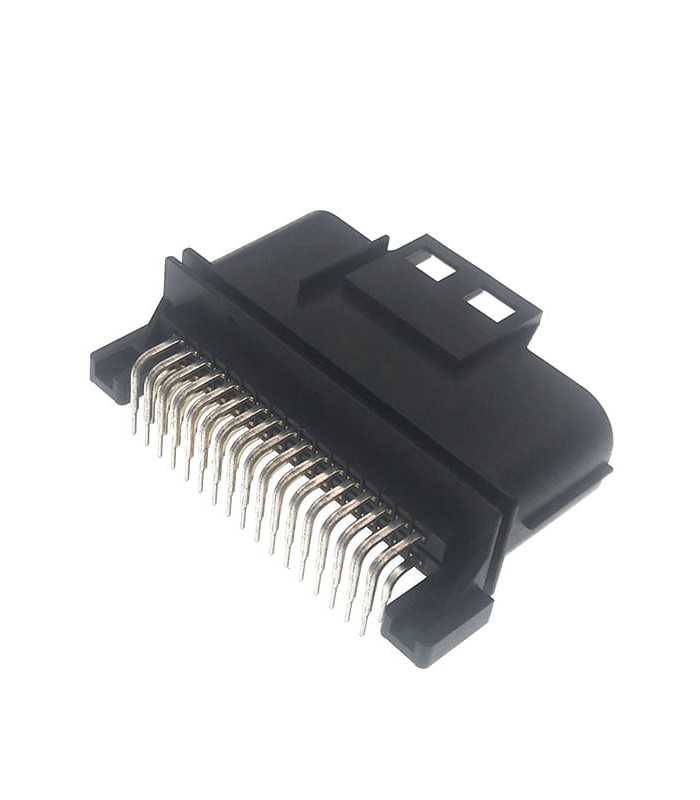

Connector JAE MX23A female 34 Way PCB 90°
Errebi code: 59103
Producer code: MX23A34NF1
Producer: JAE
Read moreShow lessProducer code: MX23A34NF1
Producer: JAE
€8.30
(tax excl.)
€10.13
(tax incl.)
Condition
New
Reference:
RBCTJAEMX23AF34VCS90
Brand:
Add to wishlist
Manufacturer: JAE Electronics
Number of positions: 34 positions
Pitch: 2.5mm
Gender: male
Mounting Style: Through Hole
Maximum wire diameter: 16 AWG
Minimum wire diameter: 22 AWG
Series: MX23A
Black colour
Contact material: copper alloy
Rated current: 3A
Length: 54 mm
Material: Polybutylene Terephthalate (PBT)
Maximum operating temperature: + 125 C
Minimum operating temperature: - 40 C
Mounting angle: right angle
Number of lines: 2 lines
Outer diameter: 1.6mm to 2.2mm
Conductor size range: 22 AWG to 16 AWG
Unit weight: 16.300 g
Read moreShow less
Number of positions: 34 positions
Pitch: 2.5mm
Gender: male
Mounting Style: Through Hole
Maximum wire diameter: 16 AWG
Minimum wire diameter: 22 AWG
Series: MX23A
Black colour
Contact material: copper alloy
Rated current: 3A
Length: 54 mm
Material: Polybutylene Terephthalate (PBT)
Maximum operating temperature: + 125 C
Minimum operating temperature: - 40 C
Mounting angle: right angle
Number of lines: 2 lines
Outer diameter: 1.6mm to 2.2mm
Conductor size range: 22 AWG to 16 AWG
Unit weight: 16.300 g
RBCTJAEMX23AF34VCS90
Data sheet
- Product type
- Connector body
- Serie
- JAE
- Amperage
- 3A
- Material
- PBT (Polybutylene terephthalate)
- Color
- Black
- Operating temperature
- -40°C to +125°C
- Mounting
- Printed circuit
- Kind
- Female
- Number of poles
- 34
- Number of rows
- 2
- Pitch
- 2.50 mm
- Orientation
- 90°
- Minimum order quantity
- 1
- Unit Type
- piece
