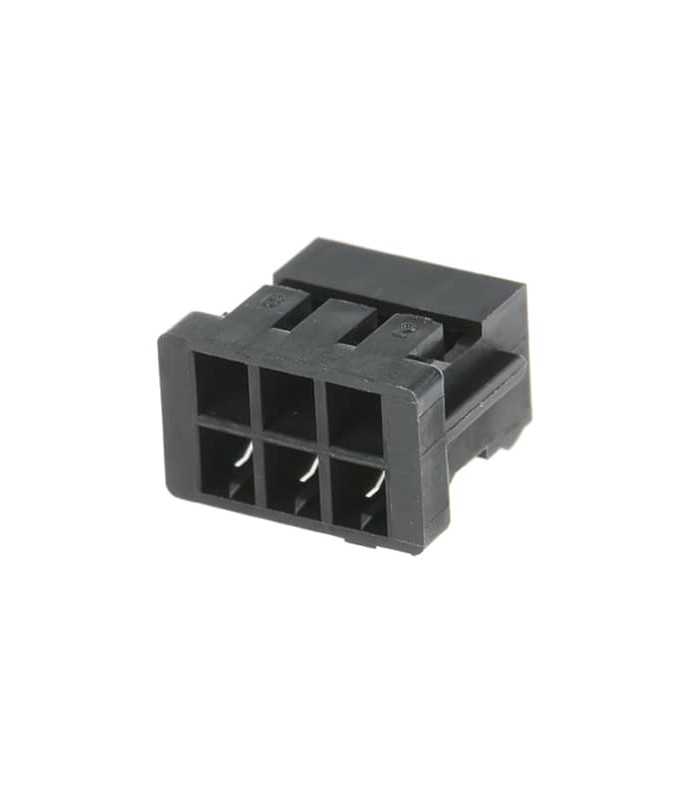

Connector DF11 Female 3x2 Way

Basic specifications
- Connector type: header
- Cable assembly: n
- Safety standards: C-UL / CSA, UL
- Number of Positions: 6
- Number of lines (interface): 2
- Mounting pitch: 2.0mm
- Contact pitch: 2.0mm
- Connector length: 8.0mm
- Connector width: 5.0mm
- Connector height: 6.6 mm
- Offset lead: no
- Recommended PCB thickness: 1.6mm max.
- Connector orientation: straight
- Case color: black
- Operating temperature: from -40 ° C to 85 ° C

Mechanical Specifications
- Locking style: friction

Electrical Specifications
- Rated current: 2.0A
- Rated voltage (AC): AC 250.0V
- Rated voltage (DC): DC 250.0V
- Withstand voltage: 650 V max.
