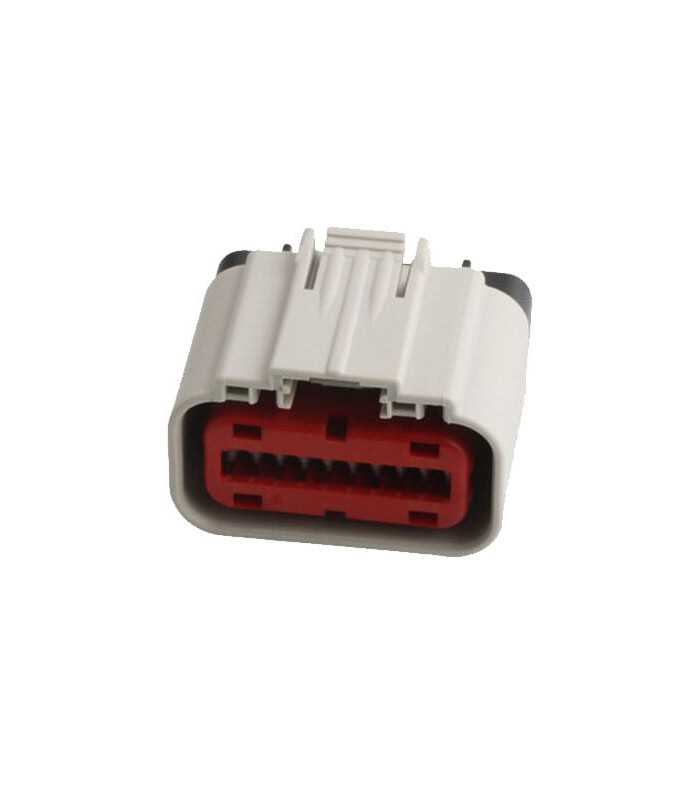

Connector Get.64 Series Male 18 Way white

Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: cable to board, cable to device, cable to cable

Number of positions: 18
Number of lines: 1
Empty cavity position: 5

Characteristics of the body

Body material: PA GF
Cable exit angle: 180 °
Main product color: black

Housing features
Center line (pitch): 2.54mm

Dimensions
Product height: 19.6mm
Product length: 31.4mm
Product Width: 24.5mm

Terms of use
Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Operating temperature range: -40 - 125 ° C [-40 - 257 ° F]
Degree of protection: IP67
