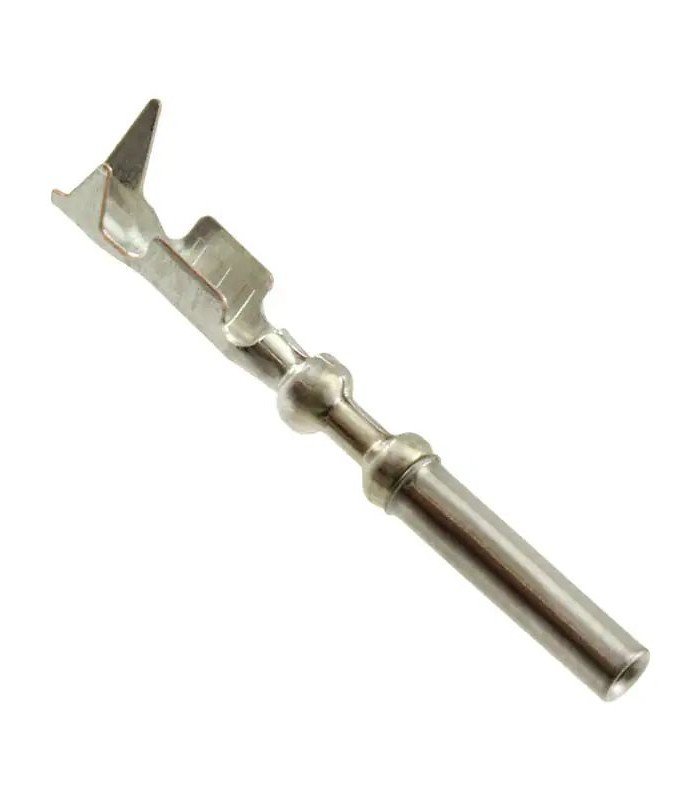

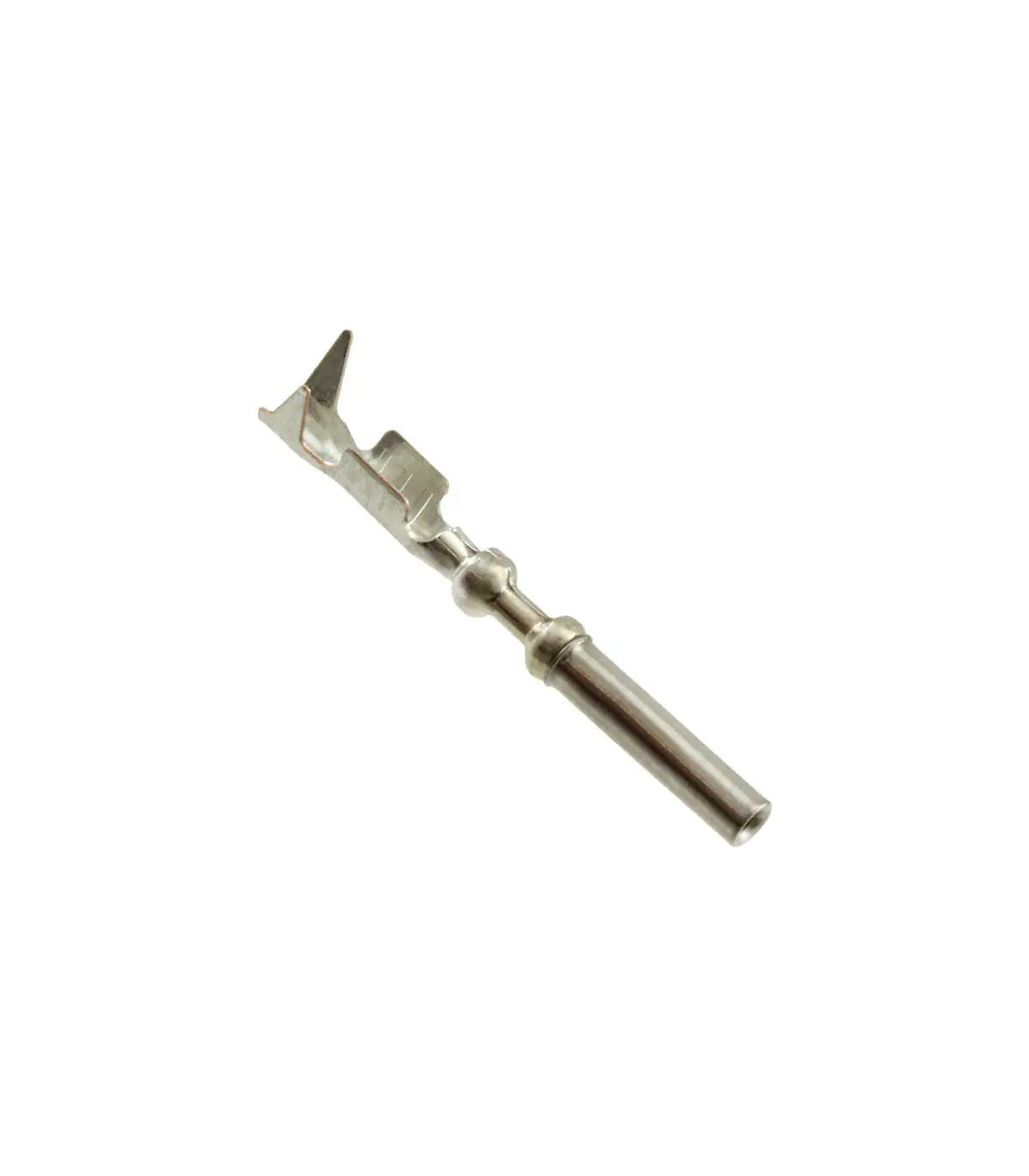

Superseal 1.0 Terminal female awg 20

Characteristics of the product type
Automotive Terminal Wire Type: Copper
Grip style: 180 °

Characteristics of the body
Automotive End Seal Type: Family Seal

Contact characteristics
Typical rated current A (A): 15
Type of terminal and Sp junction: socket
Diameter of the coupling pin: 1 mm [.039 in]
Automotive Terminal Interface Plating: Gold (Au)
Contact termination area plating material: tin (Sn)

Termination functions
Automotive Terminal Termination Method: Crimp

Dimensions
Wire size (AWG): 20
Cable size (mm²): .75 - 1.25
Wire search wire size (mm²): .75, .85, 1, 1.25
Search wire size (AWG): 20
Wire insulation diameter: 1.6 - 2.2mm [.063 - .087 in]

Terms of use
Operating temperature (max) (° C): 80, 85, 90, 100, 105, 110, 120, 125, 130
Operating temperature (max) (° F): 176, 185, 194, 212, 221, 230, 248, 257, 266
Operating temperature range: -30 - 130 ° C [-22 - 266 ° F]
