RBCTJWPF3VMCS

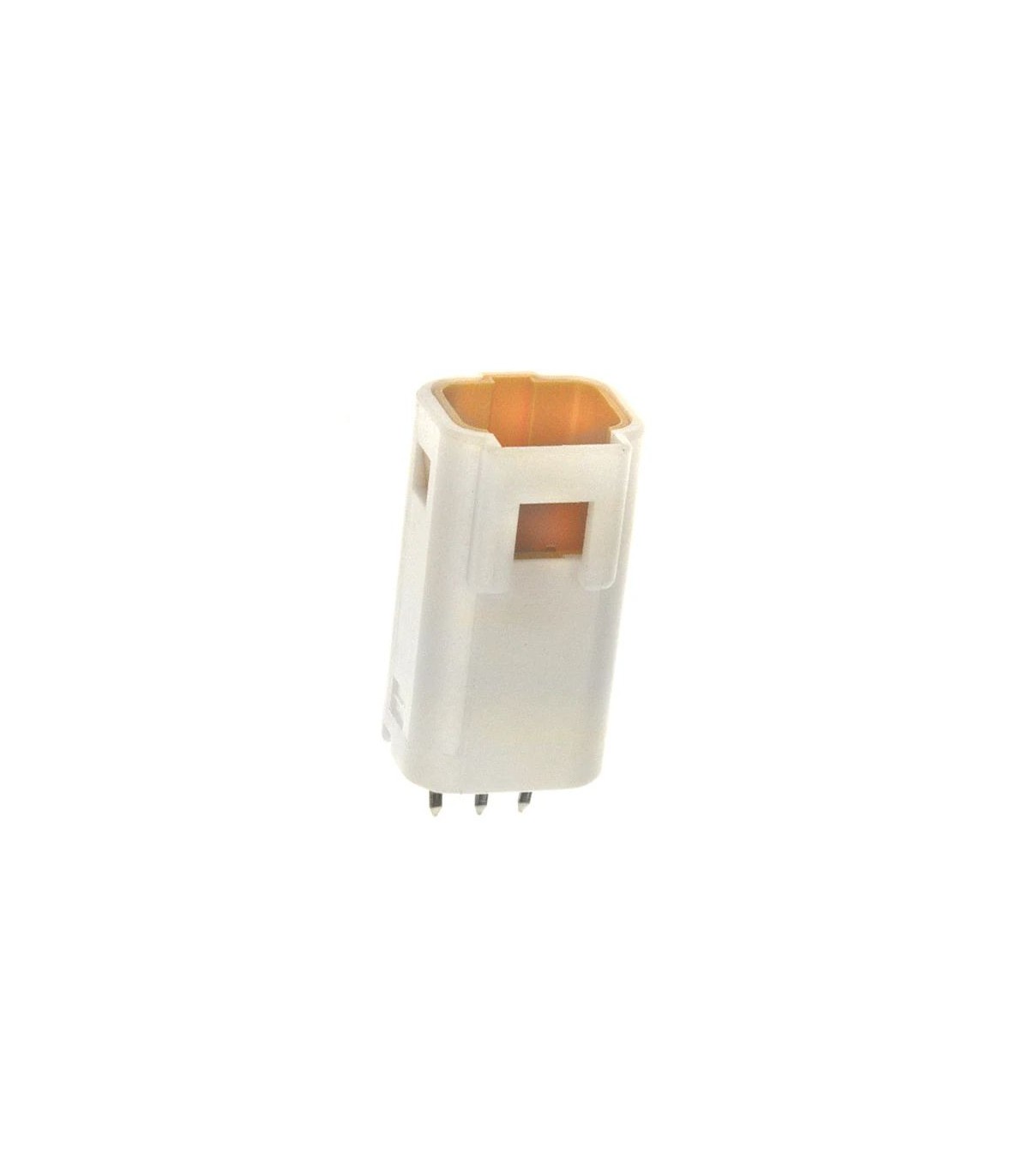

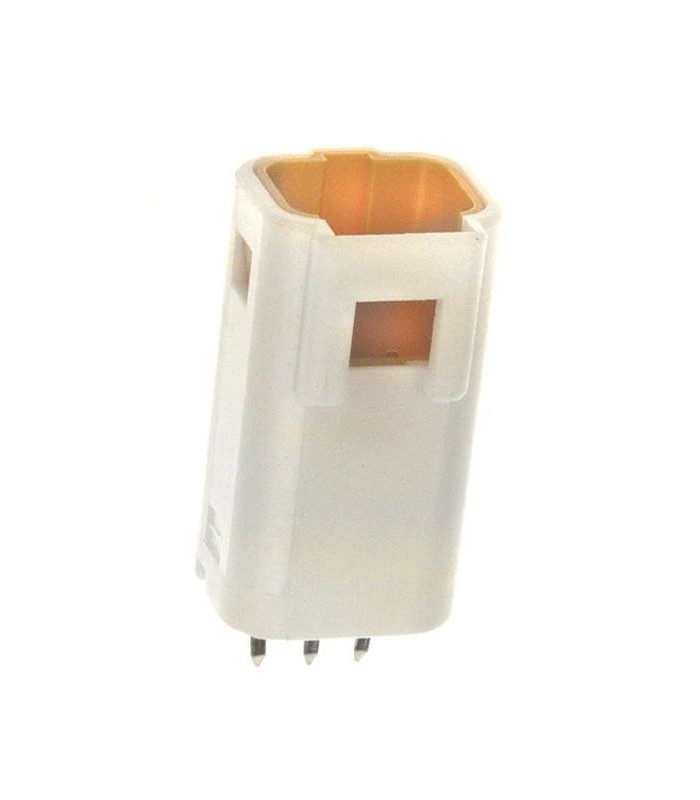

JWPF Connectors female 3 way PCB

Terminal DT size 16 female 16-20 awg
Errebi code: 56877
Producer code: B03B-JWPF-SK-R
Producer: Japan Solderless Terminals
Read moreShow less
€3.72 (tax excl.)
€4.54 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €4.08 €4.54
25 €3.63 €22.69
50 €3.40 €56.73
100 €2.95 €158.84
250 €2.50 €510.57
500 €2.27 €1,134.60
1000 €2.04 €2,496.12
Available in stock 186 Items
Condition
New
Reference:
RBCTJWPFPM3VCS
Brand:
Japan Solderless Terminals
Add to wishlist
Description
Connector type: Header
Contact Type: Male Pin
Pitch - Coupling: 0.079 "(2.00mm)
No. of positions: 3
No. of rows: 1
No. of positions loaded: All
Style: Card to cable
Protective cover: Coated - 4 walls
Mounting type: Through hole
Termination: Twisted plug, solder
Type of fastening: Seat closure
Contact Length - Pin: 0.130 "(3.30mm)
Insulator Height: 0.654 "(16.61mm)
Contact shape: Square
Contact finish - Coupling: Tin
Contact finish - Pin: Tin
Contact material: Copper alloy
Insulating material: Polybutylene terephthalate (PBT), glass filled
Operating temperature: -55 ° C ~ 85 ° C
Ingress Protection: Dust tight, waterproof
Flammability class of the material: UL94 V-0
Insulator color: Natural
Rated current (A): 3A
Rated voltage: 100V
Matched stacking heights: 21mm
Read moreShow less
Product Details
RBCTJWPFPM3VCS

Data sheet

Product type
Connector
Serie
JWPF
Amperage
3A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-55°C to +85°C
Dimensions
9,00x16,60x8,40 (L x W x H)
Flammability
94V-0
Voltage
100V
Contact material
Copper Alloy
Mounting
Printed circuit
Kind
Female
Number of poles
3
Number of rows
1
Pitch
2.00 mm
Orientation
180°
Contact plating
Tin
Minimum order quantity
1
Unit Type
piece
