€0.54
(tax excl.)
€0.66
(tax incl.)
Errebi code: 58574Producer code: 04R-JWPF-VRLE-SProducer: Japan Solderless Terminals

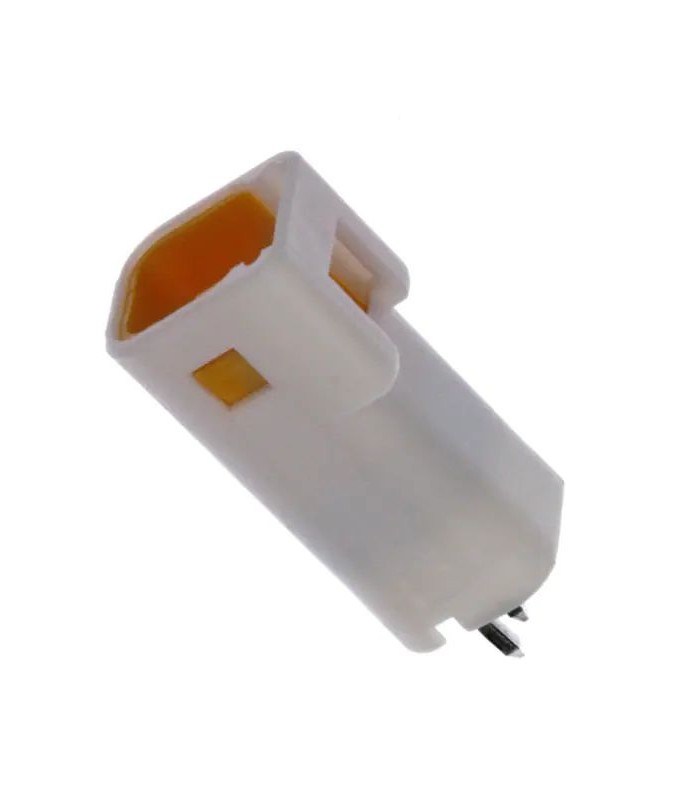

JWPF Connectors female 2 way PCB
Errebi code: 56876
Producer code: B02B-JWPF-SK-R
Producer: Japan Solderless Terminals
Read moreShow lessProducer code: B02B-JWPF-SK-R
Producer: Japan Solderless Terminals
€2.55
(tax excl.)
€3.11
(tax incl.)
Condition
New
Reference:
RBCTJWPFPM2VCS
Brand:
Add to wishlist
Connector type: Header
Contact Type: Male Pin
Pitch - Coupling: 0.079 "(2.00mm)
No. of positions: 2
No. of rows: 1
No. of positions loaded: All
Style: Card to cable
Protective cover: Coated - 4 walls
Mounting type: Through hole
Termination: Twisted plug, solder
Type of fastening: Seat closure
Contact Length - Pin: 0.130 "(3.30mm)
Insulator Height: 0.654 "(16.61mm)
Contact shape: Square
Contact finish - Coupling: Tin
Contact finish - Pin: Tin
Contact material: Copper alloy
Insulating material: Polybutylene terephthalate (PBT), glass filled
Operating temperature: -55 ° C ~ 85 ° C
Ingress Protection: Dust tight, waterproof
Flammability class of the material: UL94 V-0
Insulator color: Natural
Rated current (A): 3A
Rated voltage: 100V
Matched stacking heights: 21mm
Read moreShow less
Contact Type: Male Pin
Pitch - Coupling: 0.079 "(2.00mm)
No. of positions: 2
No. of rows: 1
No. of positions loaded: All
Style: Card to cable
Protective cover: Coated - 4 walls
Mounting type: Through hole
Termination: Twisted plug, solder
Type of fastening: Seat closure
Contact Length - Pin: 0.130 "(3.30mm)
Insulator Height: 0.654 "(16.61mm)
Contact shape: Square
Contact finish - Coupling: Tin
Contact finish - Pin: Tin
Contact material: Copper alloy
Insulating material: Polybutylene terephthalate (PBT), glass filled
Operating temperature: -55 ° C ~ 85 ° C
Ingress Protection: Dust tight, waterproof
Flammability class of the material: UL94 V-0
Insulator color: Natural
Rated current (A): 3A
Rated voltage: 100V
Matched stacking heights: 21mm
RBCTJWPFPM2VCS
Data sheet
- Product type
- Connector
- Serie
- JWPF
- Amperage
- 3A
- Material
- PBT (Polybutylene terephthalate)
- Color
- White
- Operating temperature
- -55°C to +85°C
- Dimensions
- 7,00x16,60x8,10 (L x W x H)
- Flammability
- 94V-0
- Voltage
- 100V
- Contact material
- Copper Alloy
- Mounting
- Printed circuit
- Kind
- Female
- Number of poles
- 12
- Number of rows
- 1
- Pitch
- 2.00 mm
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 1
- Unit Type
- piece
