Kit Connector SuperSeal Male Female 6 Way

Superseal connector kit, safe and waterproof electrical connections. The Superseal connector kit is the ideal solution for those who need safe, resistant and reliable electrical connections under any condition. Composed of male and female connector, crimp terminals and sealing grommets, it guarantees a complete system that combines easy assembly with maximum protection against external agents.

Waterproofing and total protection

These connectors included in the kit offer a protection rating of up to IP67, preventing the ingress of water, dust, oils and dirt. They are therefore perfect for outdoor applications or harsh environments where it is essential to preserve electrical continuity over time.

Operation and features

1) Male and female connectors: ensure precise and stable coupling, even in the presence of vibrations

2) Crimp terminals: provide a solid and highly conductive electrical contact, minimizing energy loss

3) Sealing grommets: protect cables from moisture and corrosive agents, preserving the functionality of the connection system

Main advantages

1) Safe, stable and durable electrical connection

2) Certified waterproofing, ideal for outdoor environments or applications exposed to weather conditions

3) Resistance to vibrations, shocks and temperature changes

4) Easy installation, suitable for custom wiring and DIY projects

Fields of application

1) Automotive: wiring for cars, motorcycles, motorhomes, agricultural and industrial vehicles

2) Marine: electrical systems resistant to salty and marine environments

3) Industry: machinery and equipment requiring reliable and protected connections

4) DIY and custom: perfect for those who build tailor-made wiring with maximum safety

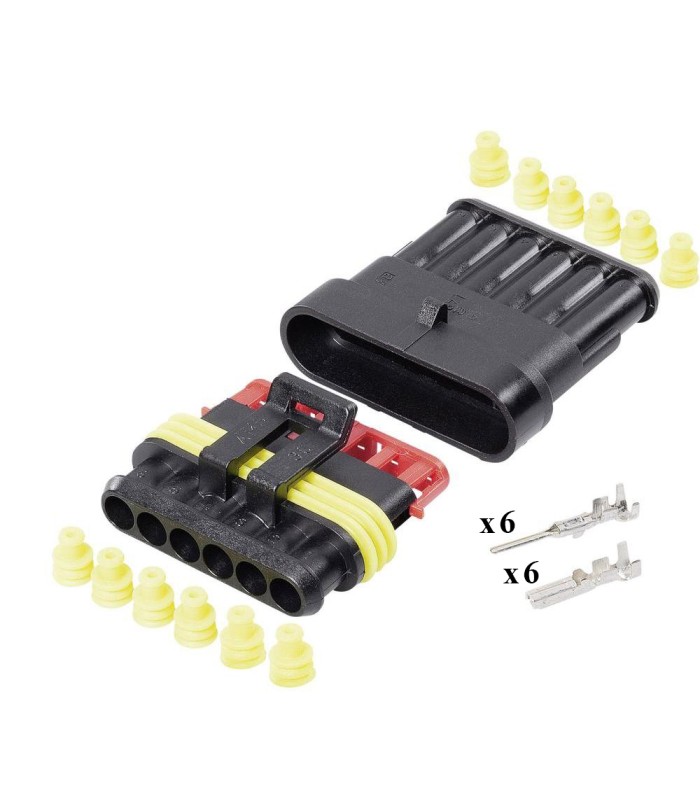

Each kit includes:

1 pc - Superseal Male Connector 6-way (282090-1)

1 pc - Superseal Female Connector 6-way (282107-1)

6 pcs - Superseal Female Terminal (282110-1)

6 pcs - Superseal Male Terminal (183024-1)

12 pcs - Yellow Sealing Grommet for Superseal connector (281934-2)
