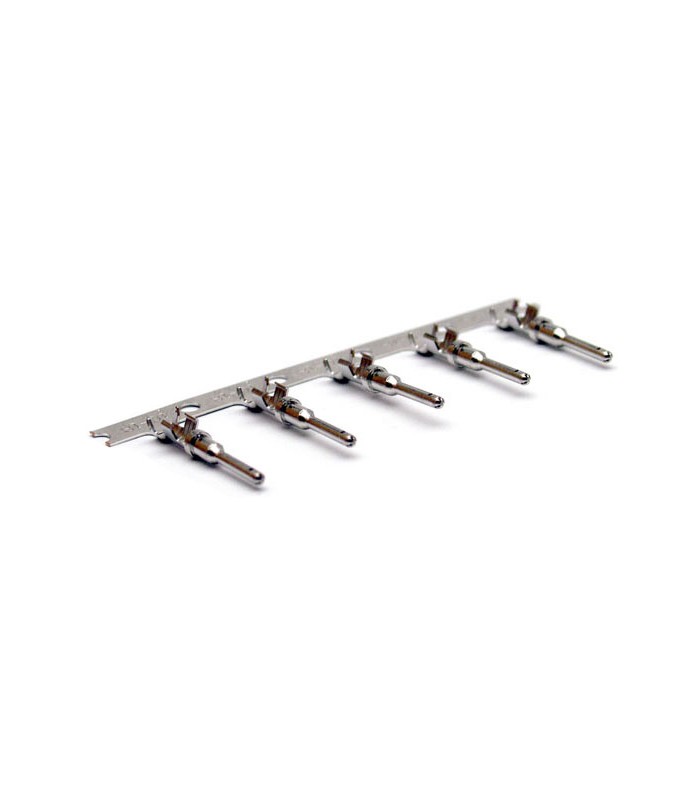

Terminal Serie DT Male Size 16 for Cable sec. 14-18 Awg

Product Type Features
- Sealable : No
- Wire Type : Copper

Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating(A): 13
- Terminal & Splice Style: Pin
- Mating Pin Diameter: 1.5 mm [ 0.059 in ]
- Interface Plating: Nickel (Ni)
- Contact Termination Area Plating Material: Nickel (Ni)

Termination Features
- Termination Method: Crimp

Dimensions
- Wire Size (AWG): 14 – 18
- Wire Size (mm²): .75 – 2
- Wire Size Search (AWG): 14, 15, 16, 17, 18
- Wire Size Search (mm²): .85, 1, 1.25, 1.3, 1.5, 2
- Wire Insulation Diameter: 1.9 – 3.55 mm [ 0.075 – 0.14 in ]

Usage Conditions
- Operating Temperature Range: -55 – 125°C [ -67 – 257°F]

Other
- Terminal Transmits: 0 – 24 A (Low Power)
- Customer Preferred Contact: No
