RBCTMTSLDPF3V

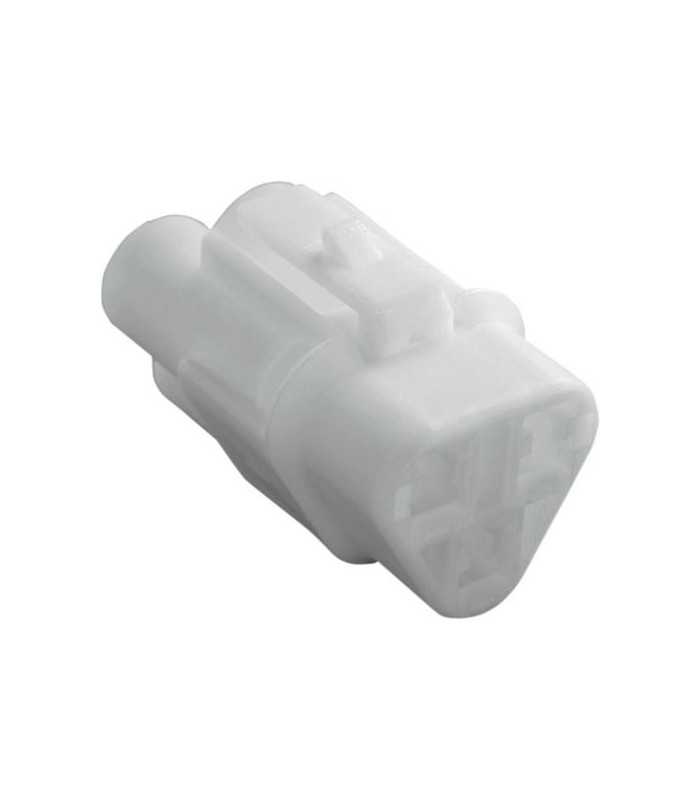

Connector MT Sealed Series Male 3 Way Type T

Terminal DT size 16 male 16-20 awg
Errebi code: 28789
Producer code: 6180-3241
Producer: Sumitomo
Read moreShow less
€0.60 (tax excl.)
€0.73 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €0.66 €0.73
26 €0.59 €3.81
50 €0.55 €9.15
100 €0.48 €25.62
250 €0.40 €82.35
500 €0.37 €183.00
1000 €0.33 €402.60
Available in stock 75 Items
The minimum purchase order quantity for the product is 2.
Condition
New
Reference:
RBCTMTSLDPF3VT
Brand:
Sumitomo
Add to wishlist
Description
Sealed/Unsealed: sealed
Male/Female: M
Way: 3
Mating parts: 6187-3231(MT sealed series), 6187-3271(MT sealed series), 6188-0018(MT sealed series)
Materials: PBT
Color: Natural
Contact resistance: Initial, 3mO Max. After durability tests, 10mO Max.
Leak current: 100µA Max.
Insulation resistance: 100MO Min.
Seal: Initial, 49.0kPa Min.After durability tests, 29.4kPa Min.
Note: T Type
Read moreShow less
Product Details
RBCTMTSLDPF3VT

Data sheet

Product type
Connector body
Serie
MT Sealed Series
Material
PBT (Polybutylene terephthalate)
Color
Neutral
Kind
Male
Number of poles
3
Number of rows
2
Minimum order quantity
2
Unit Type
pieces
