RBTNJPTF20.90.5-2

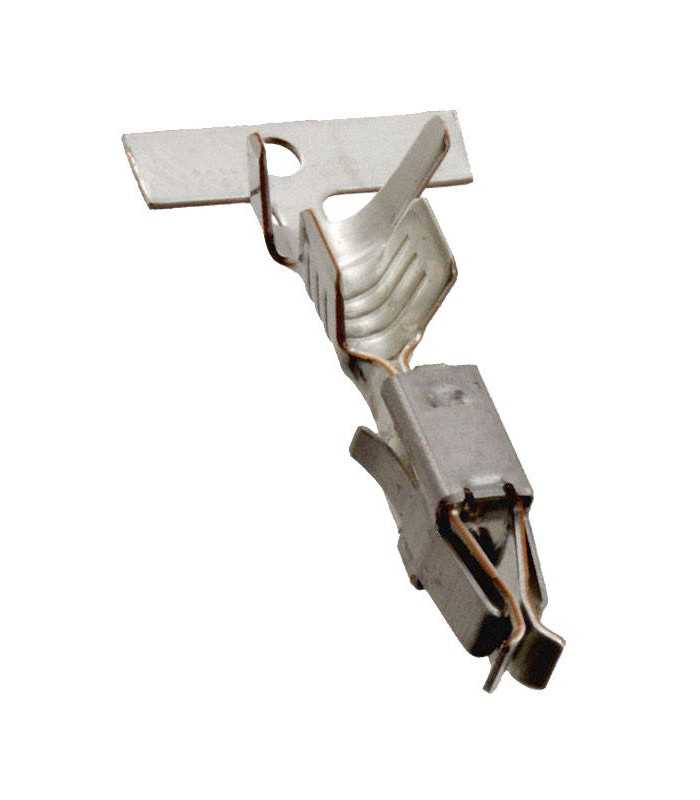

JPT Terminal Female section 0,50 - 2,00 mmq long 20,9 mm

JPT Connector Female 25 way yellow
Errebi code: 11896
Producer code: 929937-3
Producer: TE/Connectivity
Read moreShow less
€0.18 (tax excl.)
€0.22 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
40 €0.18 €1.76
60 €0.16 €3.29
100 €0.14 €7.69
260 €0.12 €25.69
500 €0.11 €54.90
1000 €0.10 €120.78
Available in stock 2394 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBTNJPTF20.90.5-2
Brand:
TE Connectivity
Add to wishlist
Description
Product Type Features
Sealable: Yes
Primary Locking Feature: Locking Lance
Wire Type: Phosphor Bronze

Contact Features
Crimp Type: F-Crimp
Typical Current Rating(A): 30
Terminal & Splice Style: Receptacle
Mating Tab Width: 2.8mm [0.11in]
Mating Tab Thickness: 0.3mm
Interface Plating: Tin (Sn)
Contact Termination Area Plating Material: Tin (Sn)

Termination Features
Termination Method: Crimp

Dimensions
Wire Size (mmq): 0.50 – 2.00

Usage Conditions
Operating Temperature Range: -40 – 130°C [ -40 – 266°F]

Other
Terminal Transmits: 25 – 40 A (Power)
Read moreShow less
Product Details
RBTNJPTF20.90.5-2

Data sheet

Product type
Terminal
Serie
JPT
Amperage
30A
Operating temperature
-40°C to +130°C
Contact material
Copper
Wire range
1.00 - 2.50 mmq
Kind
Female
Orientation
180°
Contact plating
Tin
Minimum order quantity
20
Unit Type
pieces
Attachments
011896_001_3D .pdf
Download (146.43KB)
011896_002_Drawing.pdf
Download (40.39KB)
