RBCTMTSLDPF2VB

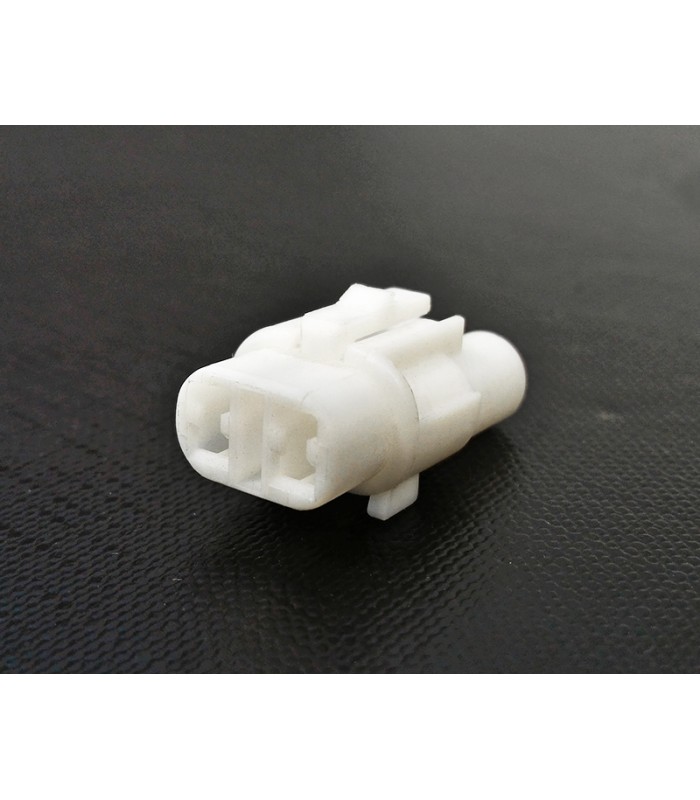

MT SEALED series Connector male 2 way

Terminal DT size 16 male 16-20 awg
Errebi code: 22385
Producer code: 6180-2321
Producer: Sumitomo
Read moreShow less
€0.64 (tax excl.)
€0.78 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
12 €0.70 €0.94
27 €0.62 €4.22
51 €0.59 €9.96
102 €0.51 €27.87
252 €0.43 €88.54
501 €0.39 €195.59
1002 €0.35 €430.30
'Available in 20 working days from the order.'
The minimum purchase order quantity for the product is 3.
Condition
New
Reference:
RBCTMTSLDPF2VB
Brand:
Sumitomo
Add to wishlist(1)
Description
Sealed/Unsealed: sealed
Male/Female: M
Way: 2
Mating parts: 6187-2311(MT sealed series)
Materials: PBT
Color: Natural
Contact resistance: Initial 3mOhm Max. After durability tests 10mOhm Max.
Leak current: 100µA Max.
Insulation resistance: 100MOhm Min.
Seal: Initial 49.0kPa Min. After durability tests 29.4kPa Min.
Type: IL Type
Read moreShow less
Product Details
RBCTMTSLDPF2VB

Data sheet

Product type
Connector body
Serie
MT Sealed Series
Material
PBT (Polybutylene terephthalate)
Color
Neutral
Kind
Male
Number of poles
2
Number of rows
1
Minimum order quantity
3
Unit Type
pieces
