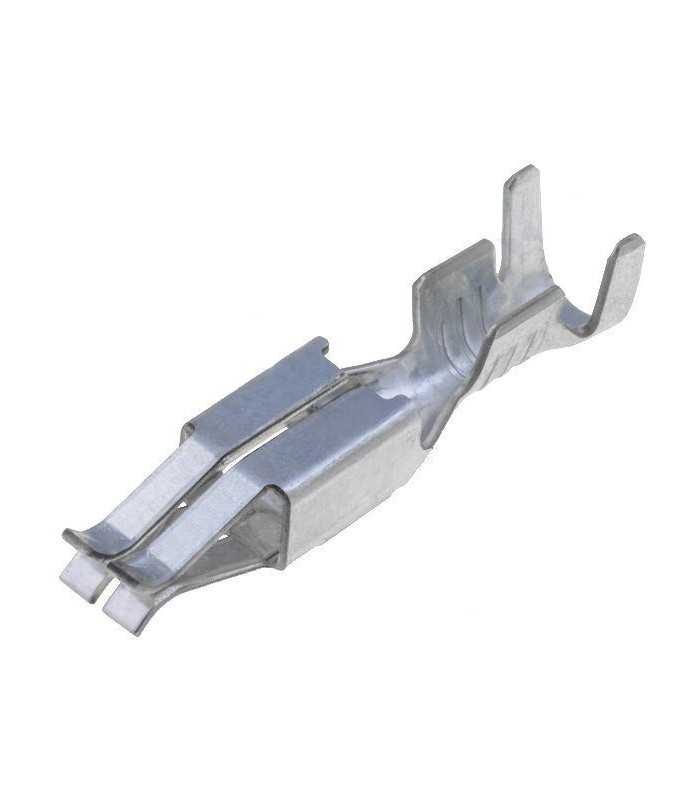

JTC Mini-Spring Terminal female 1-2,5mmq
ErreBi code: 16752
Producer code: 925595-2
Producer: TE/Connectivity
Read moreShow lessProducer code: 925595-2
Producer: TE/Connectivity
€0.07
(tax excl.)
€0.09
(tax incl.)
Condition
New
Reference:
RBTNJTC1-2.5
Brand:
Add to wishlist
Contact Type: Socket
Contact Design: Standard Flat
Contact Base Material: CuSn4
Contact Plating, Mating Area, Material: Pre-Tin
Configuration: Features
GET 0.64 Connector System: No
Single Wire Sealing System: No
Operating Temperature (°C [°F]): -40 - +110 [-40 - +230]
Applies To: Wire/Cable
Accepts Wire Insulation Diameter, Range (mm [in]): 2.40 - 3.70 [0.094 - 0.1456]
Application Use: Wire-to-Wire
Contact Transmits (Typical Application): Power
Read moreShow less
Contact Design: Standard Flat
Contact Base Material: CuSn4
Contact Plating, Mating Area, Material: Pre-Tin
Configuration: Features
GET 0.64 Connector System: No
Single Wire Sealing System: No
Operating Temperature (°C [°F]): -40 - +110 [-40 - +230]
Applies To: Wire/Cable
Accepts Wire Insulation Diameter, Range (mm [in]): 2.40 - 3.70 [0.094 - 0.1456]
Application Use: Wire-to-Wire
Contact Transmits (Typical Application): Power
RBTNJTC1-2.5
Data sheet
- Product type
- Terminal
- Serie
- JTC
- Amperage
- 20A
- Operating temperature
- -40°C to +110°C
- Contact material
- Copper Alloy
- Wire range
- 1.00 - 2.50 mmq
- Kind
- Female
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 8
- Unit Type
- pieces
