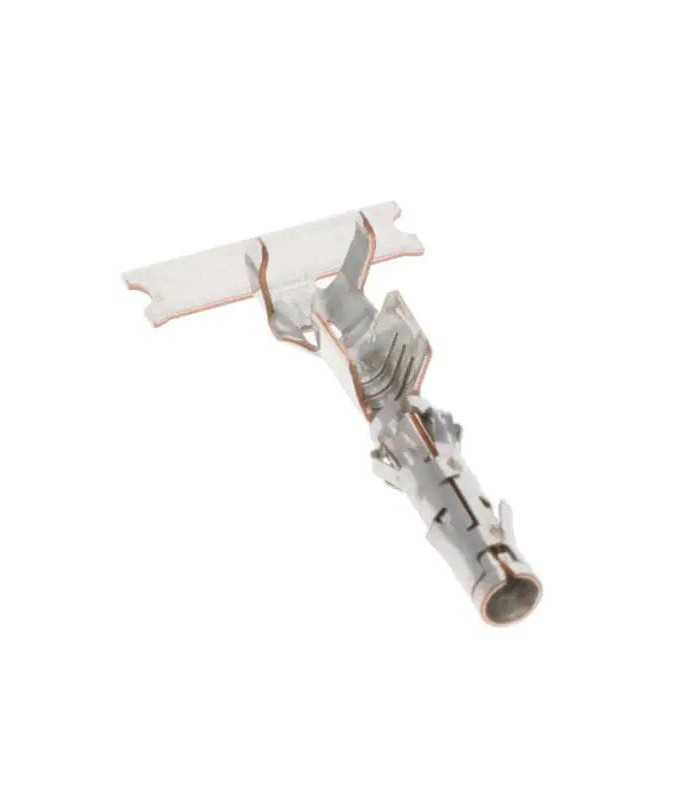

Terminal female BU-GH 1.5mm sec. 1-2,5

Errebi code: 15614
Producer code: 929990-1
Producer: TE/Connectivity
Read moreShow less
€0.27 (tax excl.)
€0.33

Discounts for quantities

Quantity Unit price You Save
10 €0.30 €0.32
25 €0.26 €1.64
50 €0.25 €4.12
100 €0.21 €11.56
250 €0.18 €37.02
500 €0.16 €82.35
1000 €0.15 €181.33
Available in stock 7564 Items
Condition
New
Reference:
RBTN1.5BGF1
Add to wishlist
Description
Manufacturer: TE Connectivity
Gender: Female socket
Mounting Style: Cable Mount / Free Hanging
Termination style: crimp
Contact plating: Tin
Maximum wire diameter: 13 AWG
Minimum wire diameter: 17 AWG
Series: 1.5mm system
Contact type: socket
Rated current: 34 A
Maximum operating temperature: + 130 C
Minimum operating temperature: - 40 C
Mounting angle: straight
Unit weight: 422 mg
Read moreShow less
Product Details
RBTN1.5BGF1

Data sheet

Product type
Terminal
Amperage
34A
Color
Grey
IP rating
IP67
Operating temperature
-40°C to +130°C
Contact material
Silicon, Nickel, Copper alloy
Wire range
17 - 13 AWG
Kind
Female
Orientation
180°
Contact plating
Tin
Minimum order quantity
1
Unit Type
piece
