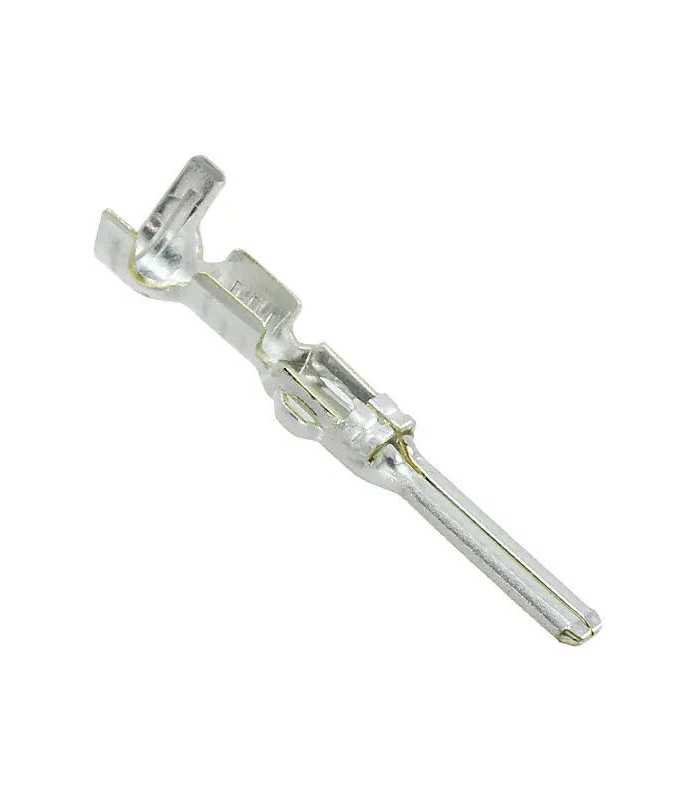

Terminal Econoseal J MK II Male for Cable sec. 0.20-0.50mmq

Errebi code: 14154
Producer code: 171631-1
Producer: TE/Connectivity
Read moreShow less
€0.55 (tax excl.)
€0.67

Discounts for quantities

Quantity Unit price You Save
7 €0.67 €0.00
14 €0.60 €0.93
28 €0.54 €3.75
56 €0.50 €9.39
105 €0.44 €24.73
252 €0.37 €76.01
504 €0.34 €169.09
1001 €0.30 €369.75
Available in stock 875 Items
The minimum purchase order quantity for the product is 7.
100% secure payments
Rated 5/5 Based on 1 customer reviews
Condition
New product
Reference:
RBTNESMT
Description
Product Type Features
- Sealable: Yes
- Primary Locking Feature: Clean Body
- Wire Type: Copper

Body Features
- Seal Type: Single Wire Seal (SWS)

Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating (A): 6
- Terminal & Splice Type: Tab
- Mating Tab Width: 1.8 mm [ .071 in ]
- Mating Tab Thickness: .64 mm [ .025 in ]
- Interface Plating: Gold (Au)
- Contact Termination Area Plating Material: Tin (Sn)

Termination Features
- Termination Method: Crimp

Dimensions
- Wire Size (mm²): .2 – .5
- Wire Size (AWG): 24 - 20
- Wire Insulation Diameter: 1.5 – 2.2 mm [ .055 – .094 in ]

Usage Conditions
- Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]

Other
- Terminal Transmits: 0 – 24 A (Low Power)
Read moreShow less
Product Details
RBTNESMT

Data sheet

Serie
Econoseal J
Amperage
6A
Operating temperature
-30°C to +105°C
Contact material
Brass
Mounting
On cable
Wire range
0.20 - 0.50 mmq
Kind
Male
Orientation
180°
Contact plating
Tin
Product type
Terminal
Minimum order quantity
7
Unit Type
pieces
