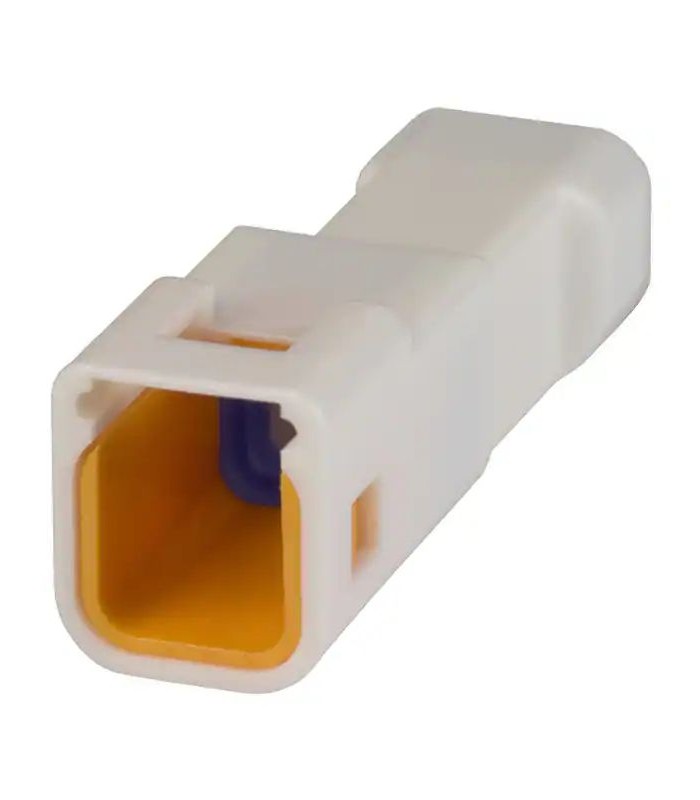

JWPF Connectors female 2 way

Errebi code: 15727
Producer code: 02T-JWPF-VSLE-S
Producer: Japan Solderless Terminals
Read moreShow less
€0.63 (tax excl.)
€0.77

Discounts for quantities

Quantity Unit price You Save
10 €0.69 €0.76
25 €0.62 €3.83
50 €0.58 €9.61
100 €0.50 €26.98
250 €0.42 €86.37
500 €0.38 €192.15
1000 €0.35 €423.11
Available in stock 8232 Items
Condition
New
Reference:
RBCTJWPF2VM
Add to wishlist
Description
Series: JWPF
No. of Positions: 2
Pitch Spacing: 2mm
SVHC: No SVHC (16-Dec-2013)
Body Plating: Tin
Contact Plating: Tin
Contact Resistance Max: 10mohm
Contact Resistance Min: 5mohm
Current rating: 3.0A
Female Contact Material: Phosphor Bronze
Flammability rating: UL94V-0
Gender: Female
IP / NEMA rating: IP67
Insulation Resistance: 800Mohm
Insulation Thickness Max: 1.74mm
Insulation Thickness Min: 1.4mm
Male Contact Material: Brass
Material: Nylon
No. of Rows: 1
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Voltage Rating V AC: 100V
Wire Size AWG Max: 22AWG
Wire Size AWG Min: 26AWG
Working Voltage: 100
Read moreShow less
Product Details
RBCTJWPF2VM

Data sheet

Product type
Connector body
Serie
JWPF
Amperage
3A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-25°C a +85°C
Dimensions
25,80x7,00x8,10 (L x W x H)
Flammability
94V-0
Mounting
On cable
Kind
Female
Number of poles
2
Number of rows
1
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
