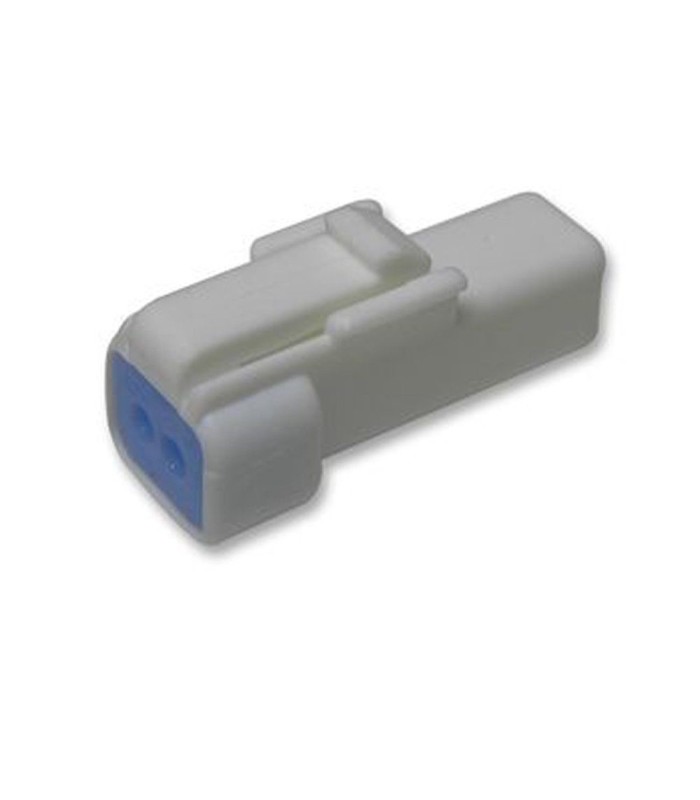

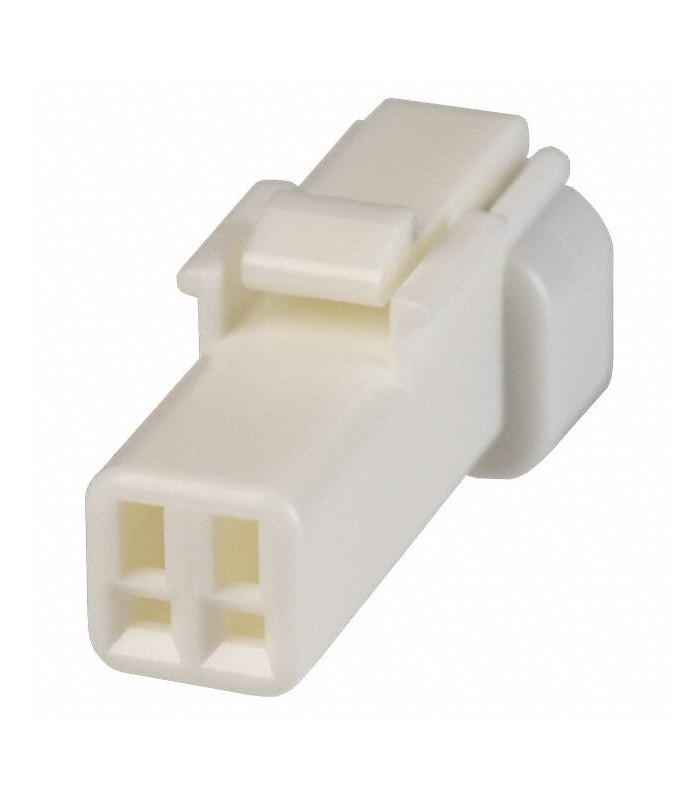

JWPF Connectors male 2 way
Errebi code: 15728
Producer code: 02R-JWPF-VSLE-S
Producer: Japan Solderless Terminals
Read moreShow lessProducer code: 02R-JWPF-VSLE-S
Producer: Japan Solderless Terminals
€0.33
(tax excl.)
€0.40
(tax incl.)
Condition
New
Reference:
RBCTJWPFPF2V
Brand:
Add to wishlist
Series: JWPF
No. of Positions: 2
Pitch Spacing: 2mm
SVHC: No SVHC (16-Dec-2013)
Body Plating: Tin
Contact Plating: Tin
Contact Resistance Max: 10mohm
Contact Resistance Min: 5mohm
Current rating: 3.0A
Female Contact Material: Phosphor Bronze
Flammability rating: UL94V-0
Gender: Male
IP / NEMA rating: IP67
Insulation Resistance: 800Mohm
Insulation Thickness Max: 1.74mm
Insulation Thickness Min: 1.4mm
Male Contact Material: Brass
Material: Nylon
No. of Rows: 1
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Voltage Rating V AC: 100V
Wire Size AWG Max: 22AWG
Wire Size AWG Min: 26AWG
Working Voltage: 100
Read moreShow less
No. of Positions: 2
Pitch Spacing: 2mm
SVHC: No SVHC (16-Dec-2013)
Body Plating: Tin
Contact Plating: Tin
Contact Resistance Max: 10mohm
Contact Resistance Min: 5mohm
Current rating: 3.0A
Female Contact Material: Phosphor Bronze
Flammability rating: UL94V-0
Gender: Male
IP / NEMA rating: IP67
Insulation Resistance: 800Mohm
Insulation Thickness Max: 1.74mm
Insulation Thickness Min: 1.4mm
Male Contact Material: Brass
Material: Nylon
No. of Rows: 1
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Voltage Rating V AC: 100V
Wire Size AWG Max: 22AWG
Wire Size AWG Min: 26AWG
Working Voltage: 100
RBCTJWPFPF2V
Data sheet
- Product type
- Connector body
- Serie
- JWPF
- Amperage
- 3A
- Material
- PA (Polyamide, Nylon)
- Color
- White
- Operating temperature
- -25°C a +85°C
- Dimensions
- 16,50x6,70x7,00 (L x W x H)
- Flammability
- 94V-0
- Mounting
- On cable
- Kind
- Male
- Number of poles
- 2
- Number of rows
- 1
- Pitch
- 2.00 mm
- Orientation
- 180°
- Minimum order quantity
- 2
- Unit Type
- pieces
