Errebi code: 58160Producer code: HCCPHPE24GYB90FProducer: Aptiv

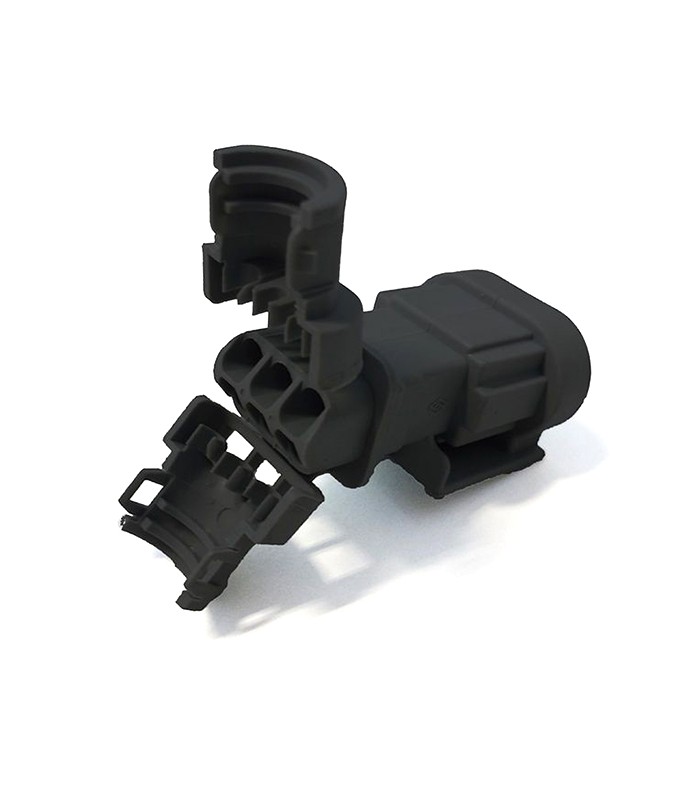

Connectors Framatome Female 6 Way black
Errebi code: 15169
Producer code: 211PL063S0003
Producer: Aptiv
Read moreShow lessProducer code: 211PL063S0003
Producer: Aptiv
€2.00
(tax excl.)
€2.44
(tax incl.)
Condition
New
Reference:
RBCTFTPM6VNR
Brand:
Add to wishlist
The connector from the SICMA 2.8 family is designed to create robust and reliable in-line cable-to-cable connections in automotive and industrial wiring harnesses exposed to vibration and moisture.
It is a typical solution for creating a “harness break point”, useful both in production (modular assembly) and service (faster disassembly and diagnostics).
Typical use
This housing is used to connect two wiring harness sections, creating a neat and easily inspectable joint.
It is particularly suitable for areas such as the engine bay, chassis, dashboard and harness breakouts in the passenger compartment, where stable connections and good protection against dirt and water are required.
Main features
Number of positions: 6 positions
Gender: female
Series: SICMA 2.8
Housing material: PBT
Wire size (AWG): 22 - 14 AWG
Wire cross-section (mm²): 0.35 - 2.50 mm²
Minimum operating temperature: -40 °C
Maximum operating temperature: +125 °C
Rated current: 33 A
Color: black
Pitch: 6 mm
Read moreShow less
It is a typical solution for creating a “harness break point”, useful both in production (modular assembly) and service (faster disassembly and diagnostics).
Typical use
This housing is used to connect two wiring harness sections, creating a neat and easily inspectable joint.
It is particularly suitable for areas such as the engine bay, chassis, dashboard and harness breakouts in the passenger compartment, where stable connections and good protection against dirt and water are required.
Main features
Number of positions: 6 positions
Gender: female
Series: SICMA 2.8
Housing material: PBT
Wire size (AWG): 22 - 14 AWG
Wire cross-section (mm²): 0.35 - 2.50 mm²
Minimum operating temperature: -40 °C
Maximum operating temperature: +125 °C
Rated current: 33 A
Color: black
Pitch: 6 mm
RBCTFTPM6VNR
Data sheet
- Product type
- Connector body
- Serie
- SICMA 2.8
- Amperage
- 33A
- Material
- PBT (Polybutylene terephthalate)
- Color
- Black
- Operating temperature
- -40°C to +125°C
- Mounting
- On cable
- Wire range
- 22 - 14 AWG
- Kind
- Female
- Number of poles
- 6
- Number of rows
- 2
- Pitch
- 6.00 mm
- Orientation
- 180°
- Minimum order quantity
- 1
- Unit Type
- piece
