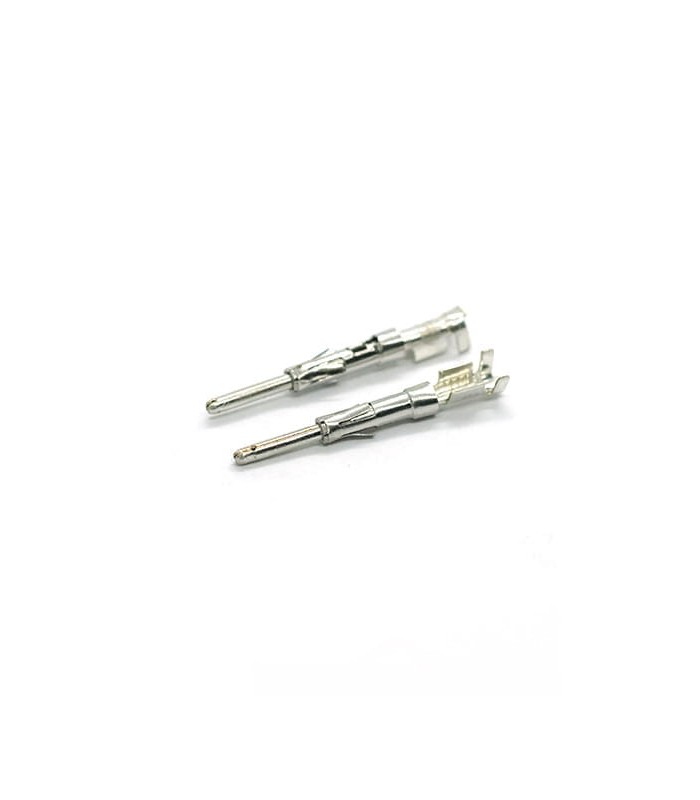

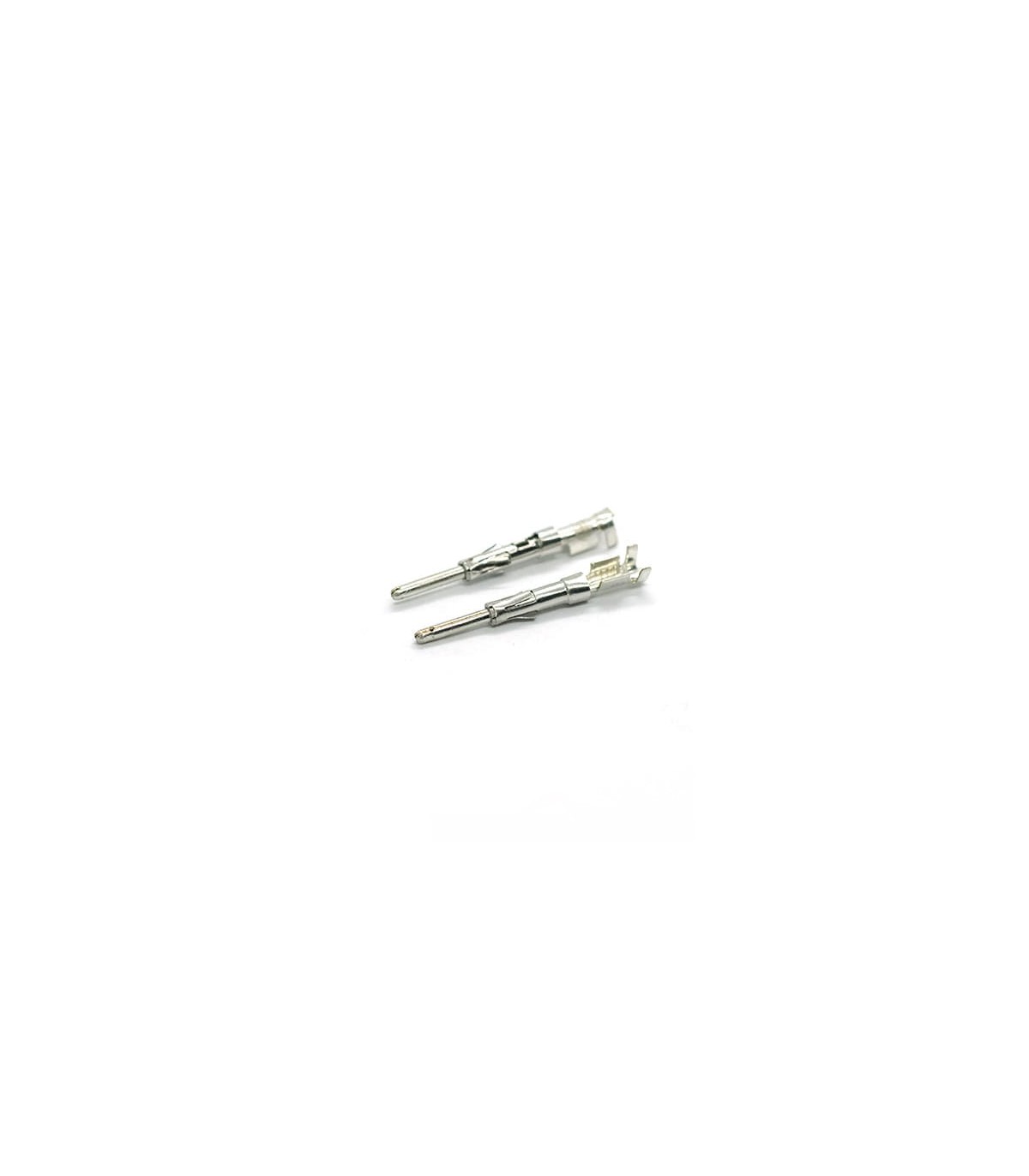

Terminal male Trim Trio Trident 16-18 AWG

Terminal male Trim Trio Trident 16-18 AWG

JPT Connector Female 25 way blue
Errebi code: 20883
Producer code: SM16M11TK6
Producer: Souriau
Read moreShow less
€1.06 (tax excl.)
€1.29 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €1.16 €1.29
25 €1.03 €6.47
50 €0.97 €16.17
100 €0.84 €45.26
250 €0.71 €145.49
500 €0.65 €323.30
1000 €0.58 €711.26
Available in stock 2726 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBTNTTTM1618
Brand:
Souriau
Add to wishlist
Description

The crimp male contact Souriau is the ideal solution for professional wiring and circular connectors. Designed for 16 - 18 AWG cables, it offers a stable, low-resistance and highly reliable connection, compatible with the wide range of Trim Trio series connectors.


Usage Instructions


To ensure optimal and safe performance, it is important to:


  • Use proper crimping tools suitable for 16 - 18 AWG wires.

  • Respect the cable stripping length and ensure the insulation is not damaged.

  • If the connector is used in exposed environments, consider using sleeves, dust caps or protections to achieve adequate protection level.

    • Main Features


  • Type: male pin contact for circular connector

  • Termination: crimp (to be crimped on cable), not solder

  • Cable section (AWG): 16 - 18 AWG

  • Cable section (mm²): 0.82 - 1.5 mm²

  • Contact material: copper alloy

  • Current rating: 13 A

  • Voltage rating: 750 V

  • Mounting type: cable mounting

  • Weight: 0.49 g

    • Read moreShow less
    Product Details
    RBTNTTTM1618

    Data sheet

    Product type
    Terminal
    Serie
    Trim Trio Trident
    Amperage
    13A
    Voltage
    750V
    Contact material
    Copper Alloy
    Mounting
    On cable
    Wire range
    18 - 16 AWG
    Kind
    Male
    Orientation
    180°
    Contact plating
    Tin
    Minimum order quantity
    5
    Unit Type
    pieces
    Attachments
    020883_001_DATASHEET.pdf
    Download (361.4KB)
