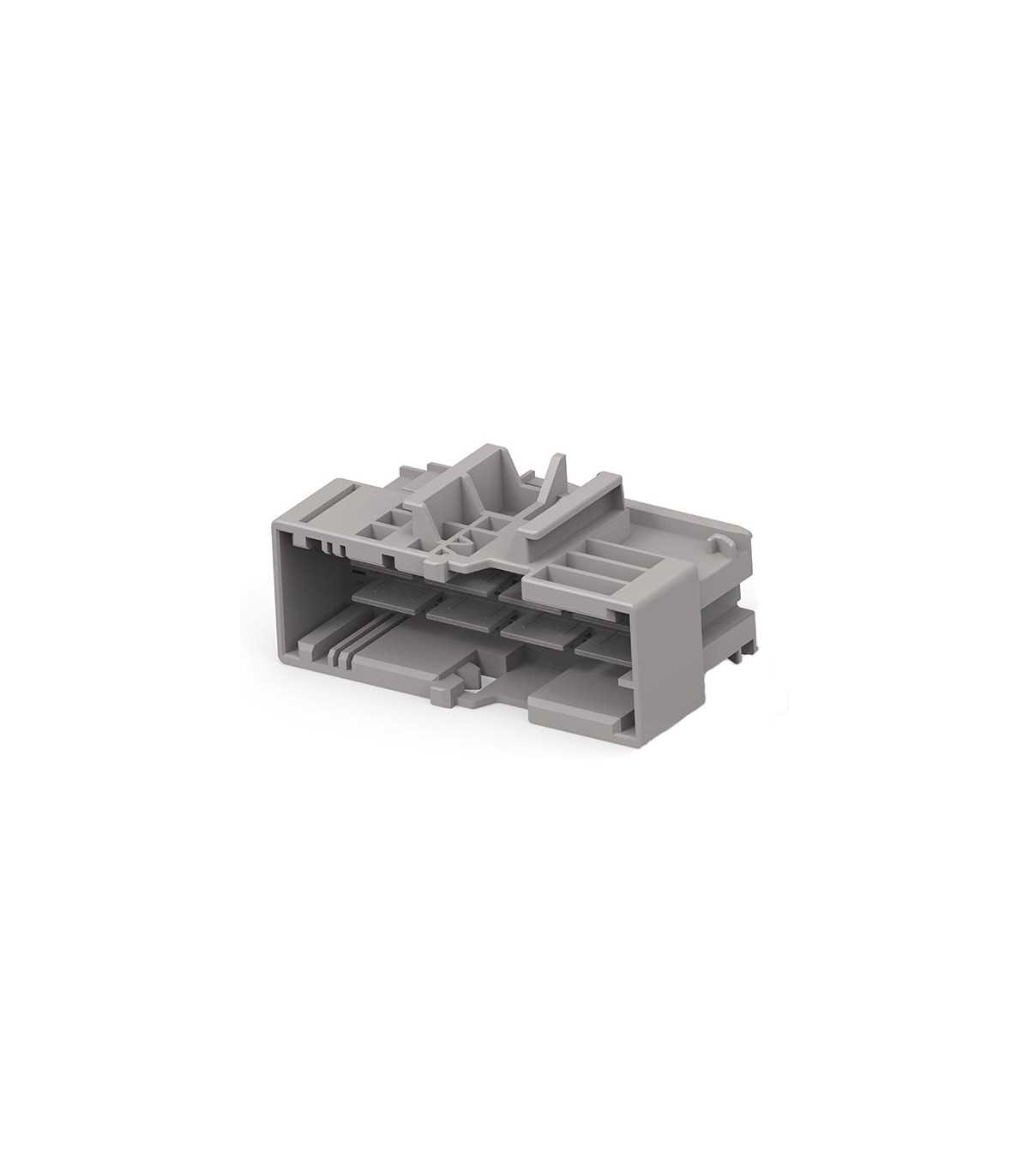

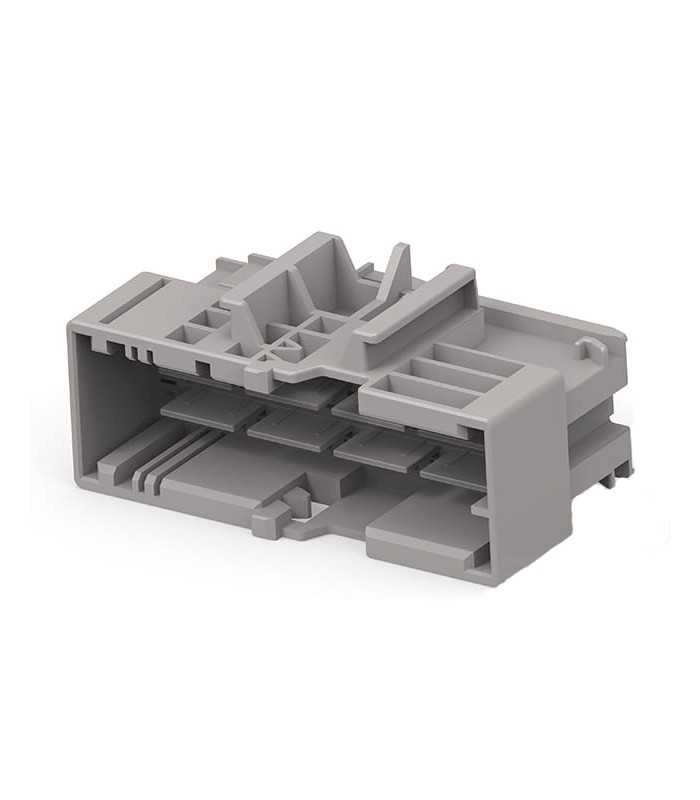

Connector Timer Hybrid series female 52 ways grey

The connector offers a robust and versatile solution for managing wiring harnesses that require numerous connections in limited spaces. With its 52 positions and compact structure, it allows multiple conductors to be grouped into a single connector body, simplifying assembly, maintenance, and cable replacement.


Made with a PBT housing reinforced with glass fiber, it is ideal for automotive or industrial applications where many connections are required within compact dimensions.

As a wire-to-wire connector, it allows groups of cables or wiring segments to be joined without the need for soldering or dispersed splices: all internal contacts fit into male tab terminals.

The 3.5 mm pitch and compact arrangement make it suitable when space is limited but a high number of connections is still required.

General features

Number of positions: 52

Number of rows: 3

Mounting angle: Straight (180°)

Application: wire-to-wire harnessing, allowing different cable sections to be connected through a single 52-position insert.

Pitch: 3.50 mm

Material: PBT (polybutylene terephthalate)

Color: grey

Operating temperature: from -40°C to +70°C, suitable for typical automotive conditions.

Rated voltage: 16 V
