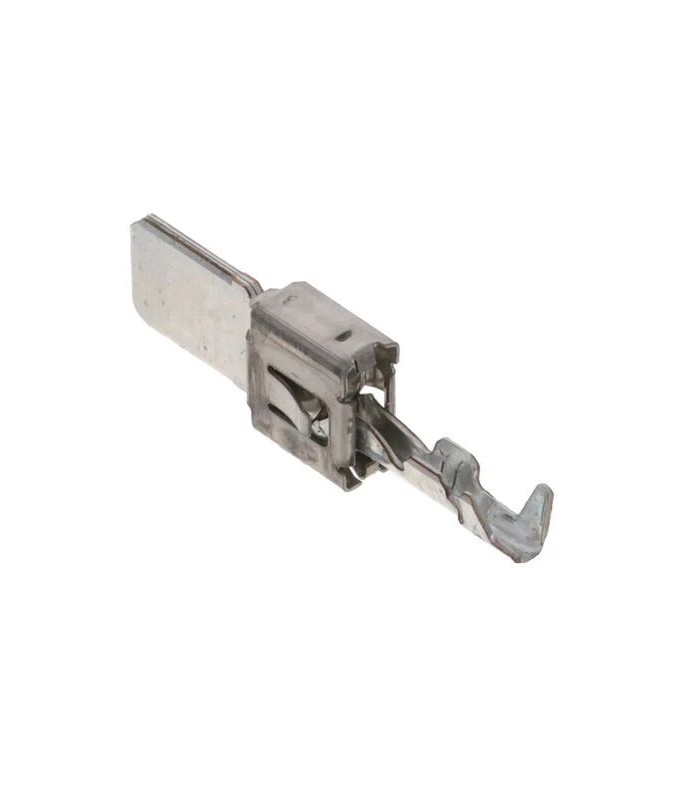

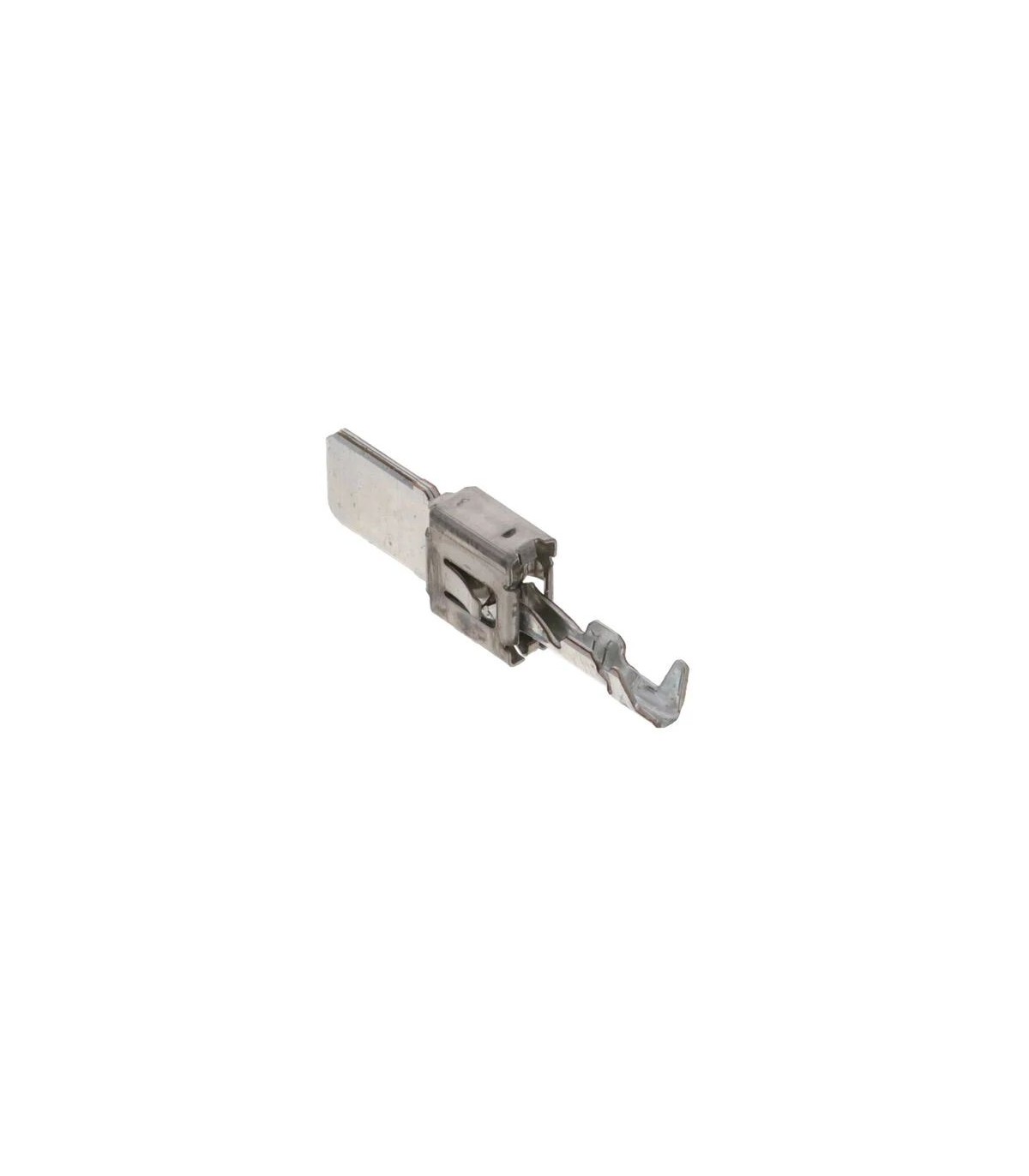

SPT F630 Terminal male section 1,00 - 2,50 mmq

The terminal is designed to ensure reliable connections in electrical and automotive systems.

Main Features

• Wire section (AWG): 24–20 AWG


• Wire section (mm²): 1.00 – 2.50 mm²


• Contact material: tin


• Rated current: 40 A


• Operating temperature: from -40 °C to +130 °C


• Orientation: straight (180°)

Function and Benefits

The internal structure is designed to separate the mechanical part from the electrical part:
a steel upper spring ensures a constant and stable contact, while the body of the contact is managed separately for the crimp connection of the wire.

Benefits:

• Reliable connection over time, even in environments subject to vibrations and stress.


• Excellent corrosion resistance thanks to the tin plating.


• Suitable for high currents (up to 40 A) while maintaining compactness and strength.


• Wide operating temperature range, useful in extreme conditions.

Typical Applications

• Automotive sector: internal wiring, connectors for modules and ECUs.


• Industrial electrical and electronic systems.


• Electrical installations requiring reliable contacts.


• Projects requiring a robust and standard tab terminal.
