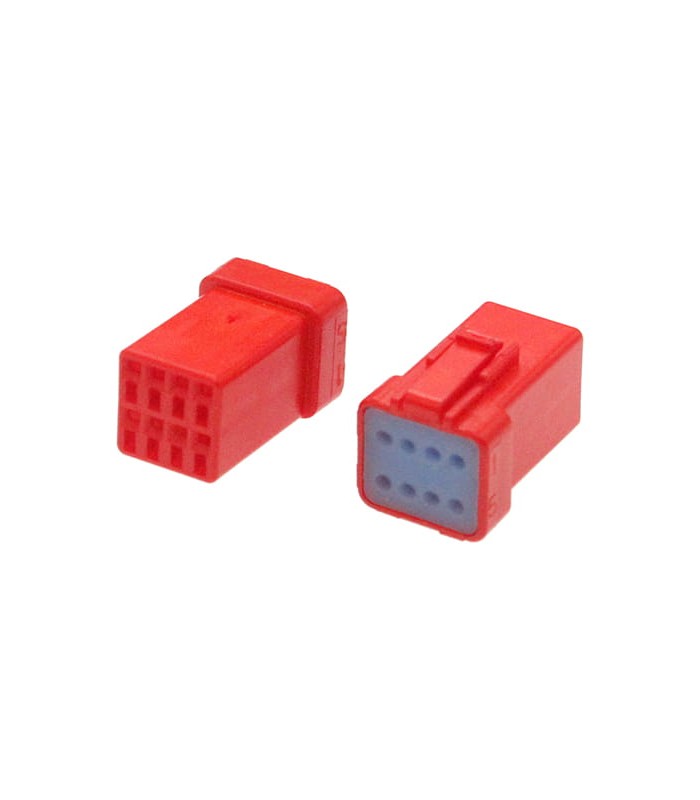

JWPF Connectors male 8 way red

JWPF Connectors male 8 way red

Errebi code: 66894
Producer code: 08R-JWPF-VRLE-D
Producer: Japan Solderless Terminals
Read moreShow less
€1.63 (tax excl.)
€1.99 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €1.79 €1.96
25 €1.59 €9.92
50 €1.49 €24.86
100 €1.29 €69.80
250 €1.09 €223.47
500 €0.99 €497.15
1000 €0.89 €1,094.72
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTJWPFPF8VRO
Brand:
Japan Solderless Terminals
Add to wishlist
Description
Series: JWPF
No. of Positions: 8
Colour: red
Pitch Spacing: 2mm
SVHC: No SVHC (16-Dec-2013)
Body Plating: Tin
Contact Plating: Tin
Contact Resistance Max: 10mohm
Contact Resistance Min: 5mohm
Current rating: 3.0A
Female Contact Material: Phosphor Bronze
Flammability rating: UL94V-0
Gender: Male
IP / NEMA rating: IP67
Insulation Resistance: 800Mohm
Insulation Thickness Max: 1.74mm
Insulation Thickness Min: 1.4mm
Male Contact Material: Brass
Material: Nylon
No. of Rows: 1
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Voltage Rating V AC: 100V
Wire Size AWG Max: 22AWG
Wire Size AWG Min: 26AWG
Working Voltage: 100
Read moreShow less
Product Details
RBCTJWPFPF8VRO

Data sheet

Product type
Connector body
Serie
JWPF
Amperage
3A
Material
PA (Polyamide, Nylon)
Color
Red
IP rating
IP67
Operating temperature
-25°C a +85°C
Flammability
94V-0
Voltage
100V
Mounting
On cable
Kind
Male
Number of poles
8
Number of rows
2
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
