RBCTHDSPM5X2VAP

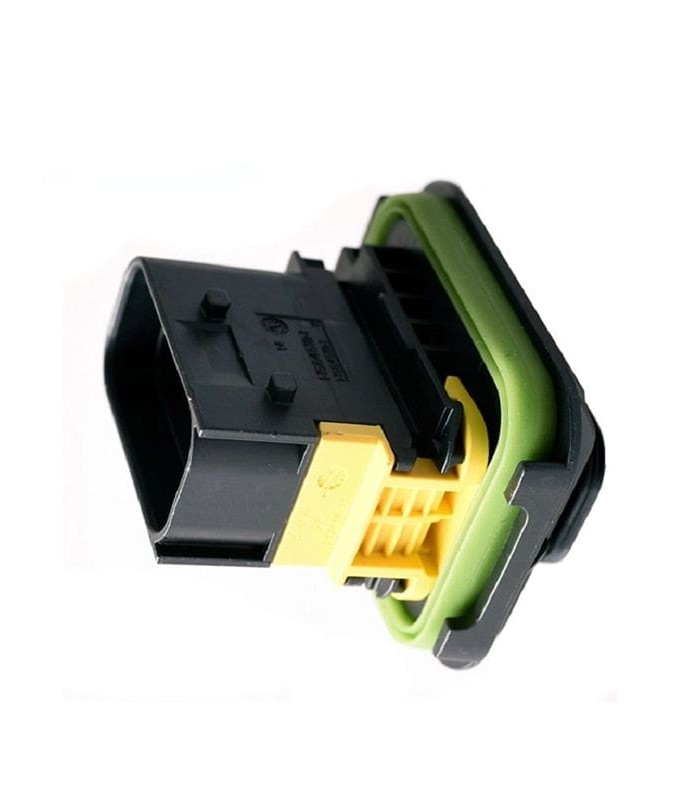

Connector Heavy Duty Sealed female 5x2ways panel

Terminal DT size 16 female 16-20 awg
Errebi code: 64496
Producer code: 1-1564518-1
Producer: TE/Connectivity
Read moreShow less
€8.57 (tax excl.)
€10.46 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €9.93 €5.23
25 €9.41 €26.14
50 €7.84 €130.69
100 €6.27 €418.22
250 €5.75 €1,176.23
500 €5.23 €2,613.85
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTHDSPM5X2VAP
Brand:
TE Connectivity
Add to wishlist
Description
Manufacturer: TE Connectivity
Number of positions: 10 positions
Pitch: 4mm, 6mm
Gender: female
Black colour
Flammability rating: UL 94 V-0
Height: 48.1mm
Housing Material: Polybutylene Terephthalate (PBT)
Ingress protection: IP67
Length: 50.5mm
Maximum operating temperature: +140 C
Minimum operating temperature: - 40 C
Number of lines: 2 lines
Line spacing: 6.9 mm
Rated voltage: 42V DC
Width: 39.8mm
Unit weight: 28,700 g
Read moreShow less
Product Details
RBCTHDSPM5X2VAP

Data sheet

Product type
Connector body
Serie
Heavy Duty Sealed
Material
PBT (Polybutylene terephthalate)
Color
Black
IP rating
IP67
Operating temperature
-40°C to +140°C
Dimensions
50,50x39,80x48,10 (L x W x H)
Flammability
94V-0
Voltage
42V
Mounting
On cable
Kind
Female
Number of poles
10
Number of rows
2
Pitch
4.00 mm, 6.00 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
