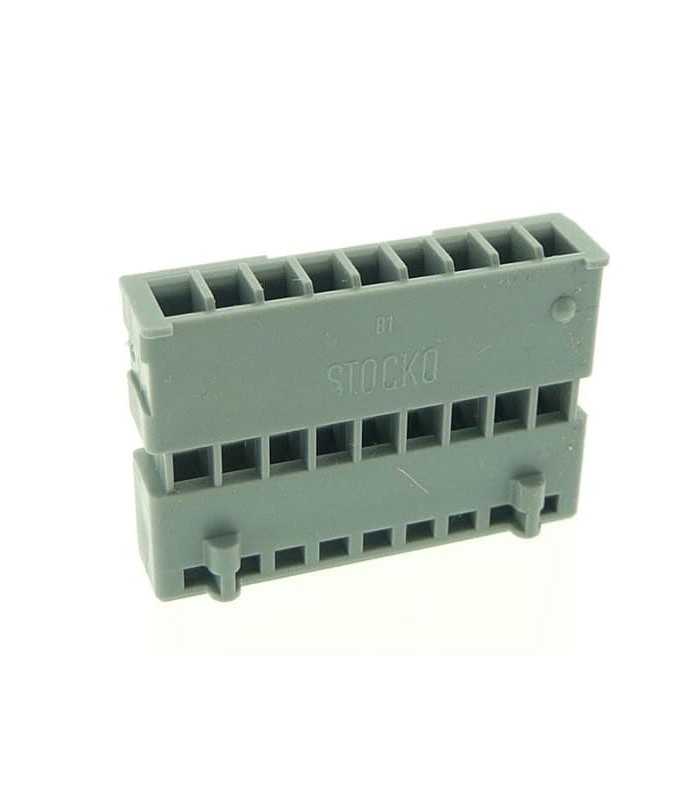

MKH 5130 Series Connector Male 9 Way
Errebi code: 20558
Producer code: MKH 5139-1-0-900
Producer: Stocko
Read moreShow lessProducer code: MKH 5139-1-0-900
Producer: Stocko
€0.31
(tax excl.)
€0.38
(tax incl.)
Condition
New
Reference:
RBCTMKH5130PF9V
Brand:
Add to wishlist(1)
Pitch: 2.5mm
Positions: 9
Termination: IDC, crimp, solder
Temperature range: -40°C ... +115°C
Rated current: 5A / 30°C
2.5A/70°C
Insulation resistance: >109 ohms
Contact resistance: < 10m Ohm
Test voltage: > 1 kV
Rated Voltage: 32V
Approvals: UL
Housing: PC, glow wire resistant, GWT 750°C acc. to the CEI 60335-1 standard
Contact: CuSn
Contact finishing: Sn
Read moreShow less
Positions: 9
Termination: IDC, crimp, solder
Temperature range: -40°C ... +115°C
Rated current: 5A / 30°C
2.5A/70°C
Insulation resistance: >109 ohms
Contact resistance: < 10m Ohm
Test voltage: > 1 kV
Rated Voltage: 32V
Approvals: UL
Housing: PC, glow wire resistant, GWT 750°C acc. to the CEI 60335-1 standard
Contact: CuSn
Contact finishing: Sn
RBCTMKH5130PF9V
Data sheet
- Product type
- Connector body
- Amperage
- 5A
- Material
- PA (Polyamide, Nylon)
- Color
- Grey
- Operating temperature
- -40°C a +115°C
- Voltage
- 32V
- Mounting
- On cable
- Kind
- Male
- Number of poles
- 9
- Number of rows
- 1
- Pitch
- 2.50 mm
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 5
- Unit Type
- pieces
