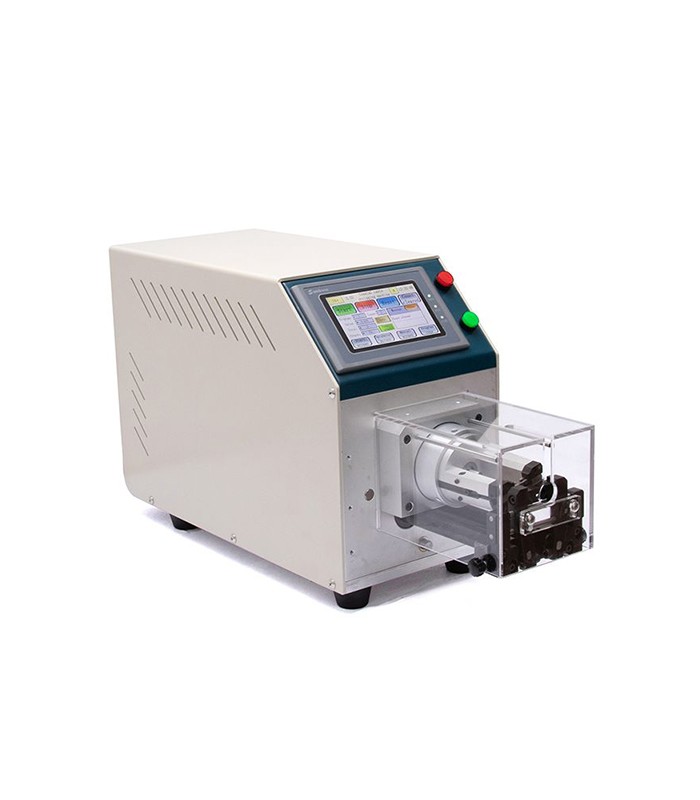

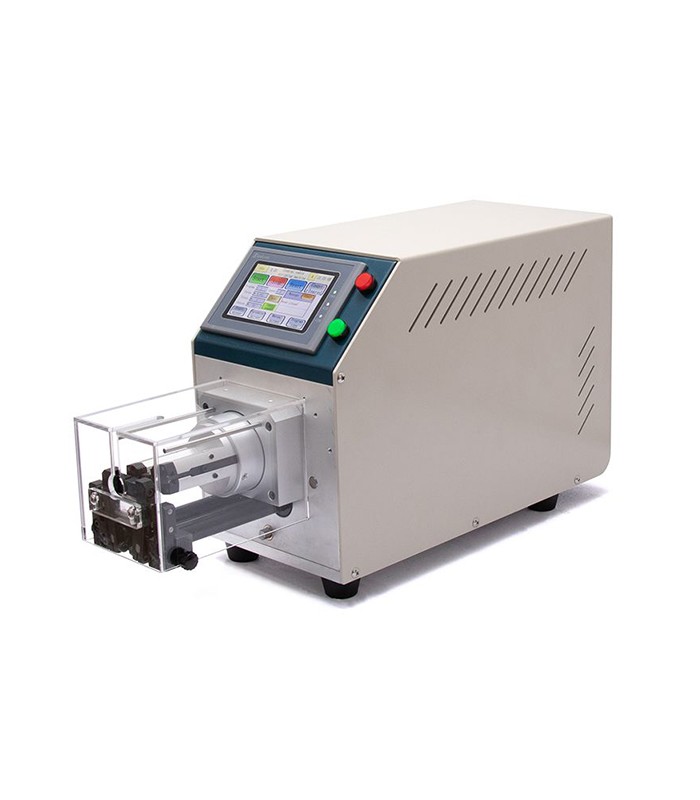

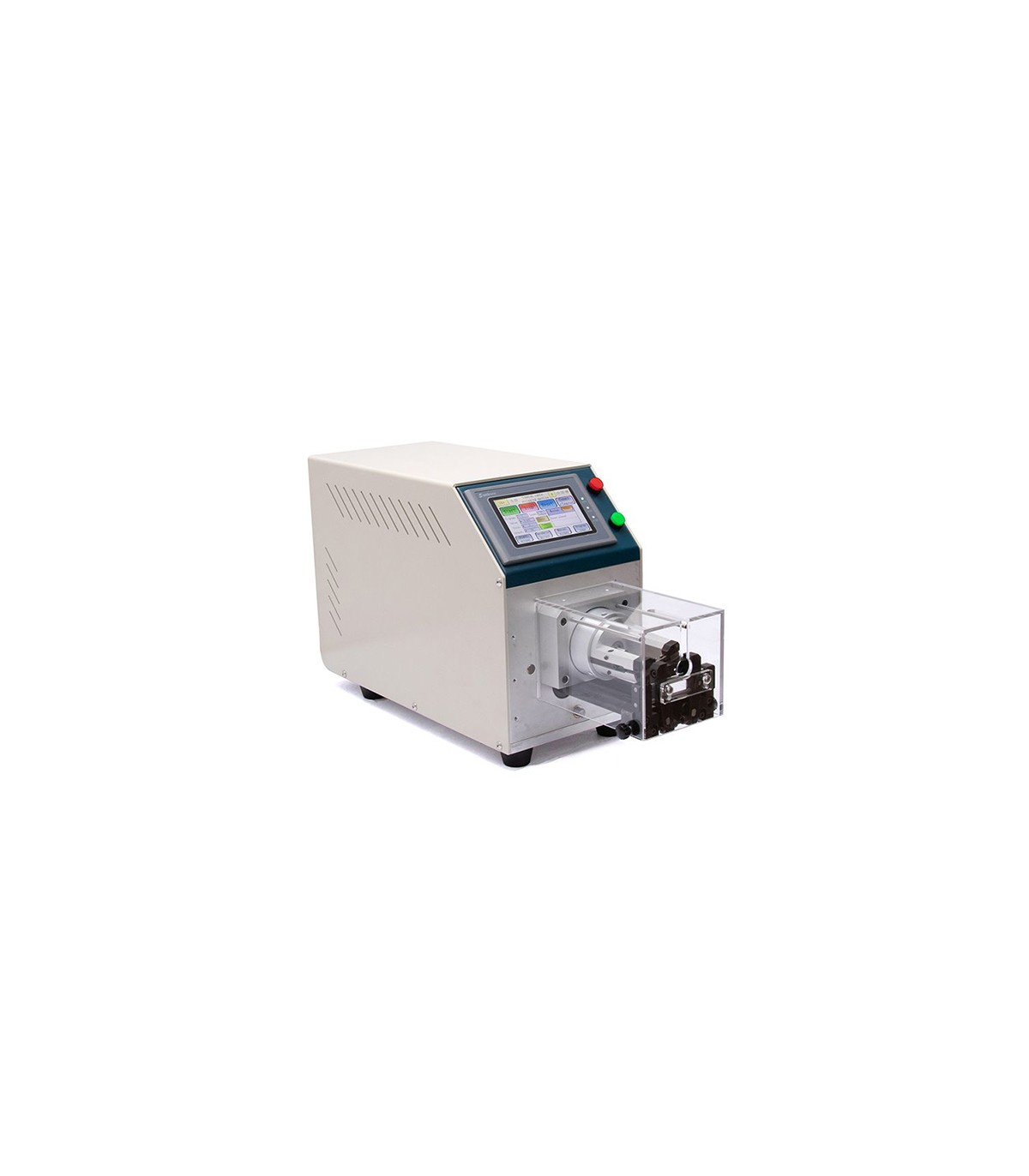

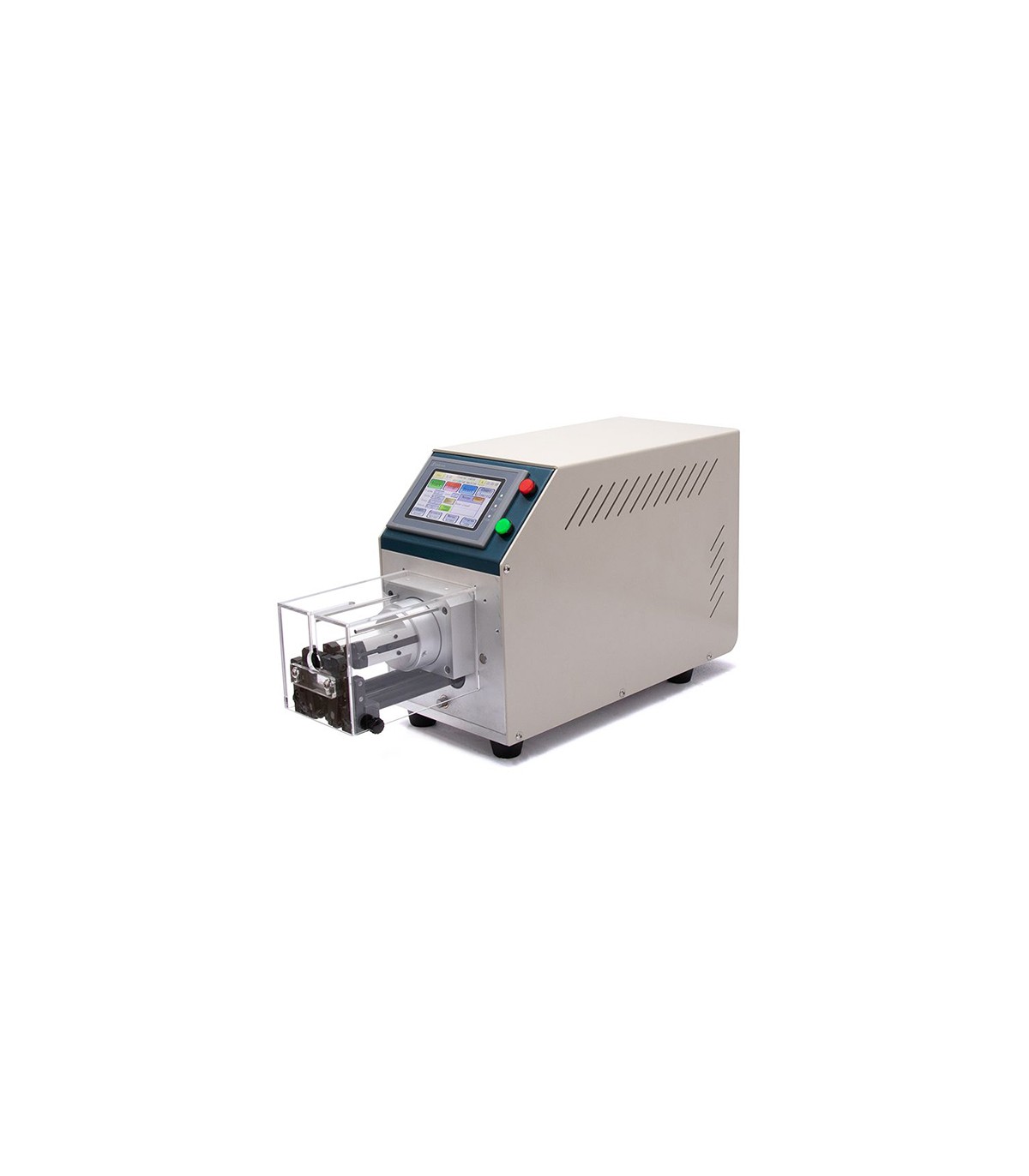

Automatic machine for unsheathing, stripping and shield preparation of automatically operated coaxial cables (Ø0,8-7 mm)

Errebi code: 64338
Read moreShow less
€5,256.00 (tax excl.)
€6,412.32 (tax incl.)
'Available in 30 working days from the order.'
Condition
New
Reference:
RBEW06F1
Brand:
ErreBi Group
Add to wishlist
Description

The RBEW06F is an automatic coaxial cable stripping machine, designed to deliver high performance, precision and reliability in cable preparation processes.
Engineered to handle different diameters, this machine allows multiple stripping steps in a single cycle with millimetre-level precision, ensuring uniform and repeatable results every time.


Operation


The RBEW06F uses a rotary cutting system controlled by a high-precision stepper motor, enabling it to:


  • 1) Automatically position the cable inside the cutting system.

  • 2) Precisely remove the outer insulation while keeping the inner dielectric and the central conductor intact.

  • 3) Adjust the stripping length according to specific processing requirements.

  • 4) Repeat the cycle automatically, ensuring uniformity and reducing error margins compared to manual stripping.

  • 5) The control interface with display makes it easy to set processing parameters: stripping length, cut depth, cable type and the number of operations to be performed.

    • Advantages


  • High cutting precision: minimizes the risk of damaging the inner conductor or the cable shielding.

  • High repeatability: ideal for mass production where absolute consistency is required.

  • Easy to use: intuitive control panel that simplifies setup.

  • Time saving: automates coaxial cable stripping, increasing efficiency compared to manual techniques.

  • Robust structure: designed to last even in intensive production environments.

    • Technical specifications


  • Model: RBEW06F

  • Maximum stripping length: 0 - 48 mm

  • Cutting accuracy: 0.01 mm

  • Cable diameter (mm): 0.8 - 7 mm

  • Program memory: 99

  • Maximum stripping layers: 9 layers

  • Blades: 2 pcs

  • Blade material: tungsten steel

  • Productivity: 750 - 1150 pcs/hour

  • Display: touch screen

  • Power: 400 W

  • Voltage: 220 V / 50 Hz

  • Weight: 27 kg

  • Dimensions: 600 x 185 x 280 mm

    • Read moreShow less
    Product Details
    RBEW06F1

    Data sheet

    Minimum order quantity
    1
    Unit Type
    piece
    Attachments
    064338_001_DATASHEET.pdf
    Download (774.66KB)
