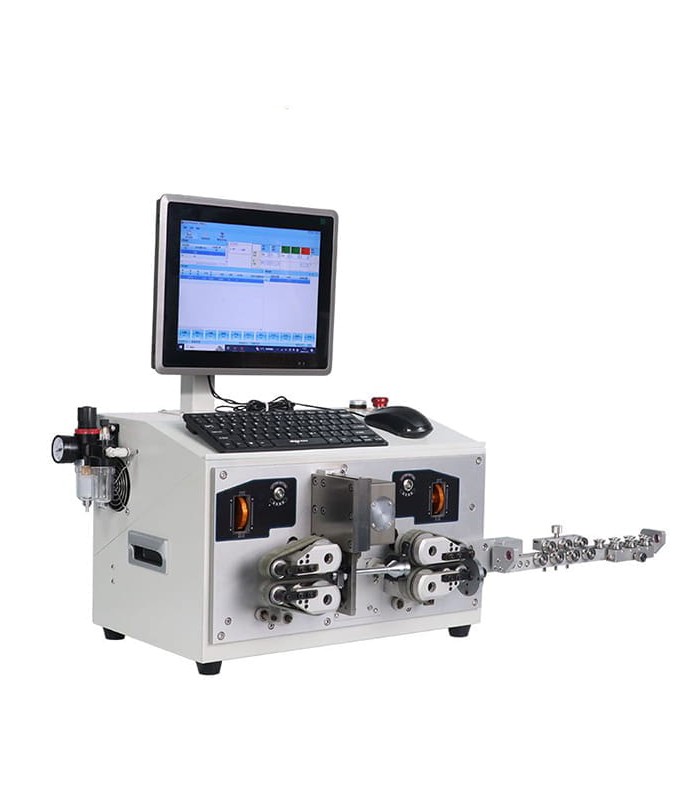

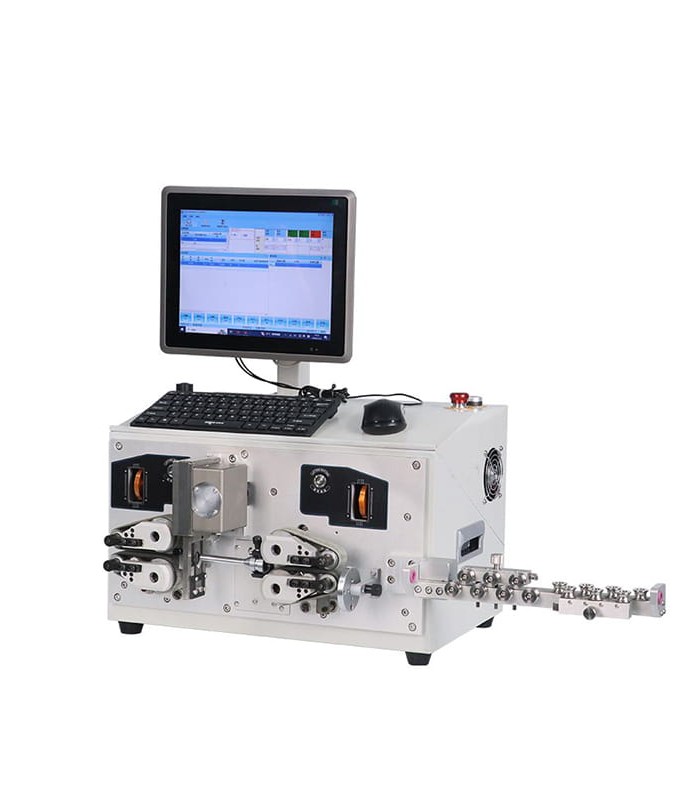

Automatic wire stripping machine controlled by intelligent software
Errebi code: 66780
Producer code: RBEW3185+S
Producer: ErreBi Group
Read moreShow lessProducer code: RBEW3185+S
Producer: ErreBi Group
€12,796.00
(tax excl.)
€15,611.12
(tax incl.)
Condition
New
Reference:
RBEW3185+S
Brand:
Add to wishlist
Technical data
Model: RBEW3185+S
Cable material: PVC, fiberglass cable etc.
Cable section: 0.20 - 16 mmq
Cutting length: 55 - 9999 mm
Cutting length tolerance: +/- 0.0001 * L
Stripping length: 1 - 100 mm
Air pressure: 0.6-0.8 Mpa
Motor: 750 W
Power supply: Belt feed
Productivity: L=100 70 pcs/min L=1000 50 pcs/min
Power supply: 110, 220 V (50 - 60 Hz)
Weight: 54 Kg
Dimensions: 560x450x650 mm
Read moreShow less
Model: RBEW3185+S
Cable material: PVC, fiberglass cable etc.
Cable section: 0.20 - 16 mmq
Cutting length: 55 - 9999 mm
Cutting length tolerance: +/- 0.0001 * L
Stripping length: 1 - 100 mm
Air pressure: 0.6-0.8 Mpa
Motor: 750 W
Power supply: Belt feed
Productivity: L=100 70 pcs/min L=1000 50 pcs/min
Power supply: 110, 220 V (50 - 60 Hz)
Weight: 54 Kg
Dimensions: 560x450x650 mm
RBEW3185+S
Data sheet
- Product type
- Cable stripping machine
- Wattage
- 750W
- Voltage/Frequency
- AC: 110-220V, 50/60Hz
- Dimensions
- 560x520x450 (L x W x H)
- Cable section mmq
- 0.20 mmq - 16.00 mmq
- Minimum order quantity
- 1
- Unit Type
- piece
- Stripping length Side1
- 1 - 100 mm
- Length of Cut
- 55 - 9999 mm
- Viewing mode
- touch screen
- Air pressure
- 0.6 - 0.8 MPa
